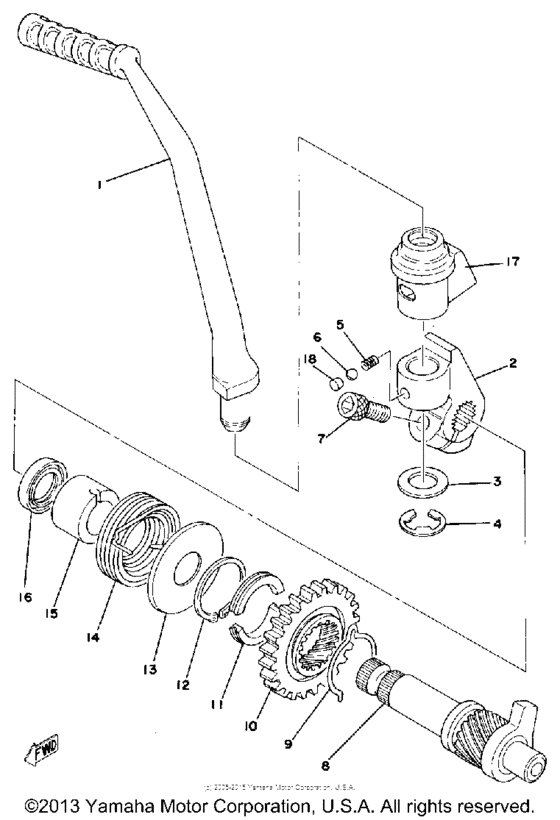

Kick starter Diagram Yamaha IT
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1W1-15620-01-00
Kick Crank Assembly (1W1-15611-
1W1-15611- YAMAHA BLACK |
1W1-15620-01-00 |
— | ||
|
2
|
2
1W1-15621-01-00 Boss, Kick Crank |
1W1-15621-01-00 |
from US $73.09 |
||
|
3
|
3
90201-12541-00 Washer, Plate |
90201-12541-00 |
from US $3.26 |
||
|
4
|
4
93430-08007-00 Circlip, E-Type |
93430-08007-00 |
from US $1.66 |
||
|
5
|
5
90501-10459-00 Spring, Compression |
90501-10459-00 |
from US $2.55 |
||
|
6
|
6
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.35 |
||
| replacement | |||||
|
6
|
6
93503-16003-00 Ball |
93503-16003-00 |
from US $1.34 |
||
|
7
|
7
91316-08025-00 Bolt |
91316-08025-00 |
from US $1.07 |
||
| replacement | |||||
|
7
|
7
913-17080-25-00 Bolt |
913-17080-25-00 |
from US $1.07 |
||
|
8
|
8
1W1-15660-00-00 Kick Axle Assembly |
1W1-15660-00-00 |
US $176.09 |
||
|
9
|
9
90468-26048-00 Clip |
90468-26048-00 |
from US $1.84 |
||
|
10
|
10
1W1-15641-00-00 Gear, Kick (27T)27T |
1W1-15641-00-00 |
from US $43.52 |
||
|
11
|
11
248-15654-00-00 Holder, Kick Gear |
248-15654-00-00 |
from US $9.21 |
||
|
12
|
12
99009-30400-00 Circlip |
99009-30400-00 |
from US $1.56 |
||
|
13
|
13
401-15676-00-00 Cover, Spring |
401-15676-00-00 |
from US $2.98 |
||
|
14
|
14
905-08263-46-00 Spring, Torsion |
905-08263-46-00 |
from US $9.63 |
||
|
15
|
15
1W1-15666-00-00 Spacer |
1W1-15666-00-00 |
from US $11.05 |
||
|
16
|
16
93101-17062-00 Oil Seal |
93101-17062-00 |
from US $8.22 |
||
|
17
|
17
1W1-15618-01-00 Cover, Kick Lever |
1W1-15618-01-00 |
from US $21.68 |
||
|
18
|
18
903-36060-30-00
Plug, Taper
|
903-36060-30-00 |
— | ||
