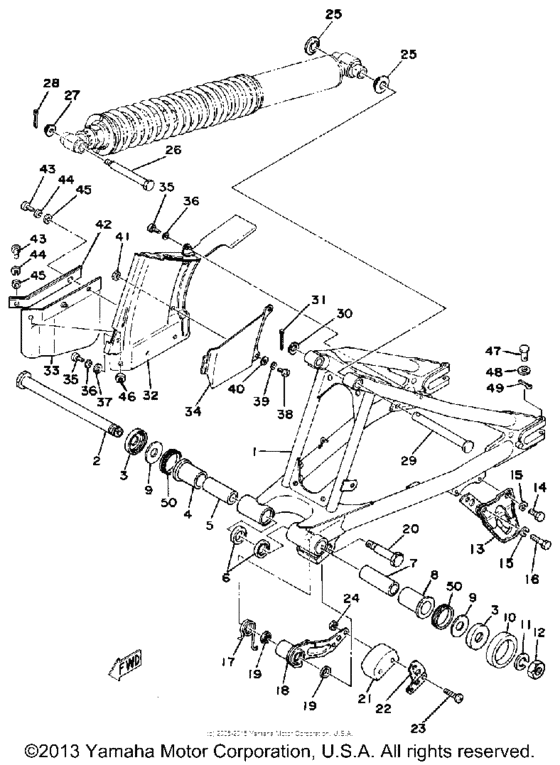

Rear arm-chain case Diagram Yamaha IT
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2W6-22110-01-33
Rear Arm
|
2W6-22110-01-33 |
— | ||
|
2
|
2
1W1-22141-00-00
Shaft, Pivot
|
1W1-22141-00-00 |
— | ||
|
3
|
3
2K6-22128-01-00 Cover, Thrust 1 |
2K6-22128-01-00 |
from US $29.19 |
||
|
4
|
4
90386-22102-00 Bush, Spec''l Nylon |
90386-22102-00 |
from US $14.17 |
||
|
5
|
5
903-80160-63-00
Bush, Solid
|
903-80160-63-00 |
— | ||
|
6
|
6
93109-22019-00 Oil Seal |
93109-22019-00 |
from US $7.93 |
||
|
7
|
7
90380-16056-00
Bush, Solid
|
90380-16056-00 |
— | ||
|
8
|
8
3Y1-22184-01-00 Bush |
3Y1-22184-01-00 |
from US $16.72 |
||
|
9
|
9
240-22127-00-00 Shim (0.3T)Shim,rear arm (26-34-0.1) 0.3T |
240-22127-00-00 |
from US $8.78 |
||
|
10
|
10
431-22151-03-00 Seal, Guard |
431-22151-03-00 |
from US $19.41 |
||
|
11
|
11
92901-16100-00 Washer |
92901-16100-00 |
from US $3.40 |
||
| replacement | |||||
|
11
|
11
92907-16100-00 Washer(Jn5) |
92907-16100-00 |
from US $3.40 |
||
|
12
|
12
901-70161-11-00
Nut
|
901-70161-11-00 |
— | ||
|
13
|
13
2W6-22153-00-00
Guard, Chain
|
2W6-22153-00-00 |
— | ||
|
14
|
14
97001-06018-00 Bolt |
97001-06018-00 |
from US $1.07 |
||
| replacement | |||||
|
14
|
14
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
16
|
16
97313-06055-00 Bolt,w Wash |
97313-06055-00 |
from US $4.11 |
||
| replacements | |||||
|
16
|
16
97595-06555-00 Bolt, With Washer |
97595-06555-00 |
from US $4.11 |
||
|
16
|
16
97E95-06555-00 Bolt, Hexagon W/w Deep Recess |
97E95-06555-00 |
from US $1.21 |
||
|
17
|
17
90508-35350-00 Spring, Torsion |
90508-35350-00 |
from US $8.22 |
||
|
18
|
18
1W1-22179-01-00
Arm, Tensioner
|
1W1-22179-01-00 |
— | ||
|
19
|
19
93104-14044-00 Oil Seal |
93104-14044-00 |
from US $5.67 |
||
| replacement | |||||
|
19
|
19
93109-14021-00 Oil Seal |
93109-14021-00 |
from US $5.67 |
||
|
20
|
20
90109-10483-00 Bolt (90109-10533-00)90109-10533-00 |
90109-10483-00 |
from US $11.21 |
||
|
21
|
21
ACC-11130-00-25
Tensioner (2N0-22178-00-00)
2N0-22178-00-00 |
ACC-11130-00-25 |
— | ||
|
22
|
22
1W1-22187-00-00 Guide, Chain |
1W1-22187-00-00 |
from US $10.73 |
||
|
23
|
23
985-01050-35-00
Screw, Pan Head
|
985-01050-35-00 |
— | ||
| replacements | |||||
|
23
|
23
98507-05035-00 Screw, Pan Head |
98507-05035-00 |
from US $1.42 |
||
|
23
|
23
98580-05035-00 Screw, Pan Head |
98580-05035-00 |
from US $3.40 |
||
|
24
|
24
953-11057-00-00
Nut(3Fv)
|
953-11057-00-00 |
— | ||
| replacement | |||||
|
24
|
24
953-17057-00-00 Nut |
953-17057-00-00 |
from US $2.42 |
||
|
25
|
25
1W1-22128-00-00 Cover, Thrust 1 |
1W1-22128-00-00 |
from US $10.48 |
||
|
26
|
26
901-09084-80-00
Bolt
|
901-09084-80-00 |
— | ||
|
27
|
27
901-79082-43-00
Nut, Spec''l Shape
|
901-79082-43-00 |
— | ||
|
28
|
28
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
28
|
28
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
29
|
29
902-40120-60-00
Pin, Clevis
|
902-40120-60-00 |
— | ||
| replacements | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
29
|
29
90240-12059-00
Pin, Clevis
|
90240-12059-00 |
— | ||
|
30
|
30
92990-12600-00 Washer, Plate |
92990-12600-00 |
from US $1.42 |
||
|
31
|
31
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
31
|
31
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
32
|
32
1W2-22311-00-33
Case, Chain
|
1W2-22311-00-33 |
— | ||
|
33
|
33
1W2-22313-00-00
Rubber, Chain Case
|
1W2-22313-00-00 |
— | ||
|
34
|
34
1W2-22318-00-00
Guard, Chain
|
1W2-22318-00-00 |
— | ||
|
35
|
35
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
35
|
35
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
36
|
36
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
37
|
37
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
38
|
38
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
38
|
38
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
39
|
39
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
40
|
40
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
41
|
41
95601-05100-00 Nut, U |
95601-05100-00 |
US $1.98 |
||
| replacement | |||||
|
41
|
41
95617-05100-00 Nut, U |
95617-05100-00 |
from US $1.98 |
||
|
42
|
42
1W2-22347-00-00
Plate, Chn Cs Rubr
CS RUBR |
1W2-22347-00-00 |
— | ||
|
43
|
43
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $1.34 |
||
|
44
|
44
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
45
|
45
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
45
|
45
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
45
|
45
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
46
|
46
95601-05100-00 Nut, U |
95601-05100-00 |
US $1.98 |
||
| replacement | |||||
|
46
|
46
95617-05100-00 Nut, U |
95617-05100-00 |
from US $1.98 |
||
|
47
|
47
91701-06042-00 Pin |
91701-06042-00 |
from US $3.40 |
||
|
48
|
48
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
48
|
48
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
48
|
48
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
48
|
48
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
49
|
49
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
49
|
49
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
50
|
50
93108-35004-00 Oil Seal (35-41-8)35-41-8 |
93108-35004-00 |
from US $7.37 |
||
