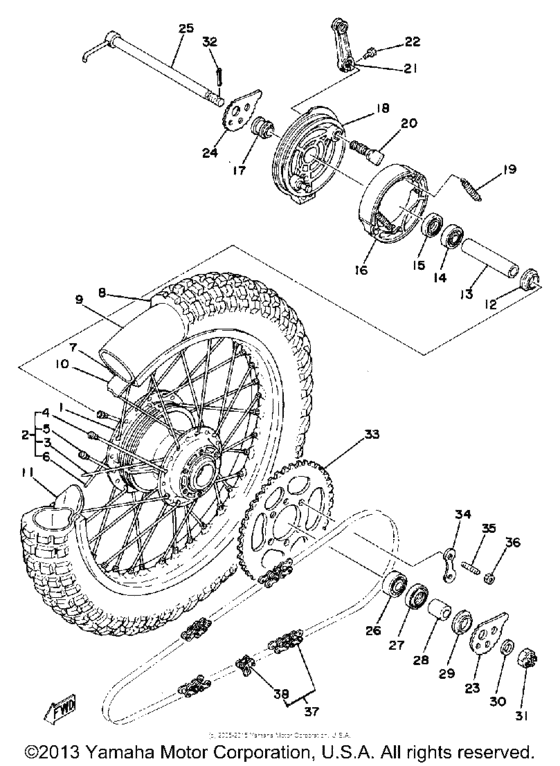

Rear wheel Diagram Yamaha IT
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1W1-25311-00-98
Hub, Rear
|
1W1-25311-00-98 |
— | ||
|
2
|
2
537-25304-01-00
Spoke Set, Rear
|
537-25304-01-00 |
— | ||
|
3
|
3
537-25396-90-00
Spoke Set, Inner 2
|
537-25396-90-00 |
— | ||
|
4
|
4
537-25397-90-00
Spoke Set, Outer 2
|
537-25397-90-00 |
— | ||
|
5
|
5
537-25391-90-00
Spoke Set, Inner 1
|
537-25391-90-00 |
— | ||
|
6
|
6
537-25392-90-00
Spoke Set, Outer 1
|
537-25392-90-00 |
— | ||
|
7
|
7
944-18182-45-00
Rim 1.85X18
1.85X18 |
944-18182-45-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
1.85X18 |
999-99999-99-00 |
— | ||
|
8
|
8
941-41185-18-00
Irc 410X18 Ve-1
410X18 VE-1 |
941-41185-18-00 |
— | ||
|
9
|
9
94235-18085-00 Tube (2.75-18)2.75-18 |
94235-18085-00 |
US $22.55 |
||
| replacement | |||||
|
9
|
9
94232-18113-00 Tube2.75-18 |
94232-18113-00 |
from US $23.82 |
||
|
10
|
10
94325-18043-00 Band, Rim (538)2.50-18 |
94325-18043-00 |
from US $4.39 |
||
| replacement | |||||
|
10
|
10
94340-18086-00 Band, Rim (2.50-18)2.50-18 |
94340-18086-00 |
from US $4.39 |
||
|
11
|
11
2X3-25394-00-00
Spacer, Bead
|
2X3-25394-00-00 |
— | ||
|
12
|
12
146-25115-00-00 Flange, Spacer |
146-25115-00-00 |
from US $6.23 |
||
|
13
|
13
90560-15313-00 Spacer |
90560-15313-00 |
from US $25.93 |
||
|
14
|
14
933-06202-04-00 Bearing |
933-06202-04-00 |
from US $9.92 |
||
|
15
|
15
93104-22018-00 Oil Seal |
93104-22018-00 |
from US $2.66 |
||
|
16
|
16
437-W2536-00-00
Brake Shoe Set-2Pcs
|
437-W2536-00-00 |
— | ||
| replacement | |||||
|
16
|
16
3KG-W253E-00-00 Brake Shoe Kit |
3KG-W253E-00-00 |
from US $30.49 |
||
|
17
|
17
903-87156-23-00
Collar
|
903-87156-23-00 |
— | ||
|
18
|
18
1W2-25321-02-98
Plate, Brake Shoe
|
1W2-25321-02-98 |
— | ||
|
19
|
19
90506-17328-00 Spring, Tension |
90506-17328-00 |
from US $8.36 |
||
|
20
|
20
2RH-25351-00-00 Camshaft |
2RH-25351-00-00 |
from US $33.29 |
||
|
21
|
21
4V5-25355-00-00
Lever, Camshaft (168-25355-00
168-25355-00 |
4V5-25355-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
168-25355-00 |
999-99999-99-00 |
— | ||
|
22
|
22
90101-06291-00 Bolt |
90101-06291-00 |
from US $1.70 |
||
| replacement | |||||
|
22
|
22
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
23
|
23
1W2-25388-01-00 Puller, Chain 1 |
1W2-25388-01-00 |
from US $10.48 |
||
|
24
|
24
1W2-25389-01-00 Puller, Chain 2 |
1W2-25389-01-00 |
from US $9.61 |
||
|
25
|
25
1W2-25381-00-00
Axle, Wheel (2A6-25381-00-00)
2A6-25381-00-00 |
1W2-25381-00-00 |
— | ||
| replacement | |||||
|
25
|
25
5X3-25381-00-00
Axle, Wheel (2A6-25381-00-00)
2A6-25381-00-00 |
5X3-25381-00-00 |
— | ||
|
26
|
26
933-06302-02-00 Bearing (1H7) |
933-06302-02-00 |
from US $20.54 |
||
| replacement | |||||
|
26
|
26
93306-30212-00 Bearing |
93306-30212-00 |
from US $15.88 |
||
|
27
|
27
93106-26005-00 Oil Seal |
93106-26005-00 |
from US $6.62 |
||
|
28
|
28
903-87155-24-00
Collar
|
903-87155-24-00 |
— | ||
|
29
|
29
401-25367-00-00 Cover, Hub Dust |
401-25367-00-00 |
from US $8.08 |
||
|
30
|
30
90201-15238-00 Washer, Plate |
90201-15238-00 |
from US $4.11 |
||
|
31
|
31
90171-14020-00 Nut, Castle |
90171-14020-00 |
from US $9.07 |
||
| replacement | |||||
|
31
|
31
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $6.96 |
||
|
32
|
32
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
32
|
32
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
33
|
33
1W2-25439-00-00
Sprocket, Drivn 39T
39T |
1W2-25439-00-00 |
— | ||
|
33
|
33
1W2-25441-00-00
Sprocket, Drivn 41T
41T STD |
1W2-25441-00-00 |
— | ||
|
33
|
33
1W2-25443-00-00
Sprocket, Drivn 43T
43T |
1W2-25443-00-00 |
— | ||
|
34
|
34
1G8-25412-00-00 Washer |
1G8-25412-00-00 |
from US $10.34 |
||
|
35
|
35
90116-10221-00 Bolt, Stud |
90116-10221-00 |
from US $6.61 |
||
|
36
|
36
957-01105-00-00
Nut, With Washer
|
957-01105-00-00 |
— | ||
| replacements | |||||
|
36
|
36
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.07 |
||
|
36
|
36
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
|
37
|
37
945-80490-96-00
Chain
|
945-80490-96-00 |
— | ||
|
38
|
38
946-80110-01-00
Joint Chain
|
946-80110-01-00 |
— | ||
