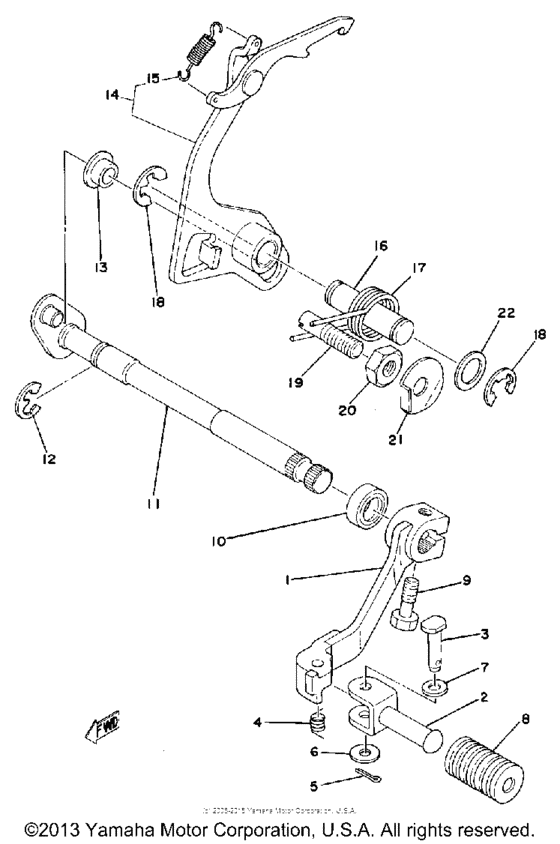

Shift shaft (2) Diagram Yamaha IT
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2HF-18110-01-00 Shift Pedal Assy |
2HF-18110-01-00 |
from US $46.84 |
||
| replacement | |||||
|
1
|
1
2HF-18110-02-00 Shift Pedal Assy |
2HF-18110-02-00 |
from US $46.84 |
||
|
2
|
2
1W6-18162-00-00
Pedal, Shift
|
1W6-18162-00-00 |
— | ||
|
3
|
3
90240-06057-00 Pin, Clevis |
90240-06057-00 |
from US $3.09 |
||
|
4
|
4
905-08163-51-00
Spring, Torsion
|
905-08163-51-00 |
— | ||
|
5
|
5
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
5
|
5
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
6
|
6
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
7
|
7
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
7
|
7
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
7
|
7
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
7
|
7
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
8
|
8
1W6-18113-00-00 Cover, Shift Pedal |
1W6-18113-00-00 |
from US $6.52 |
||
|
9
|
9
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
9
|
9
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
10
|
10
931-01120-60-00 Oil Seal |
931-01120-60-00 |
from US $6.94 |
||
| replacement | |||||
|
10
|
10
931-01121-73-00 Oil Seal |
931-01121-73-00 |
from US $4.64 |
||
|
11
|
11
1W1-18101-03-00
Shift Shaft Assembly 1
|
1W1-18101-03-00 |
— | ||
|
12
|
12
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.34 |
||
|
13
|
13
401-18178-00-00 Roller, Shift Lever |
401-18178-00-00 |
from US $9.49 |
||
|
14
|
14
4F2-18120-00-00 Shift Lever Assembly (2A6-181202A6-18120 |
4F2-18120-00-00 |
from US $62.86 |
||
|
15
|
15
90506-08155-00 Spring, Tension |
90506-08155-00 |
from US $2.41 |
||
|
16
|
16
1W1-18197-01-00 Shaft |
1W1-18197-01-00 |
from US $9.07 |
||
|
17
|
17
90508-32349-00 Spring, Torsion |
90508-32349-00 |
from US $4.82 |
||
|
18
|
18
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.34 |
||
|
19
|
19
90149-08111-00 Screw, Specl Shape |
90149-08111-00 |
from US $4.96 |
||
|
20
|
20
90170-08029-00 Nut, Hexagon |
90170-08029-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
90170-08193-00 Nut, Hexagon |
90170-08193-00 |
from US $1.56 |
||
|
21
|
21
90215-08014-00 Washer, Lock |
90215-08014-00 |
from US $2.55 |
||
|
22
|
22
902-0112M-34-00 Washer, Plate |
902-0112M-34-00 |
from US $2.69 |
||
