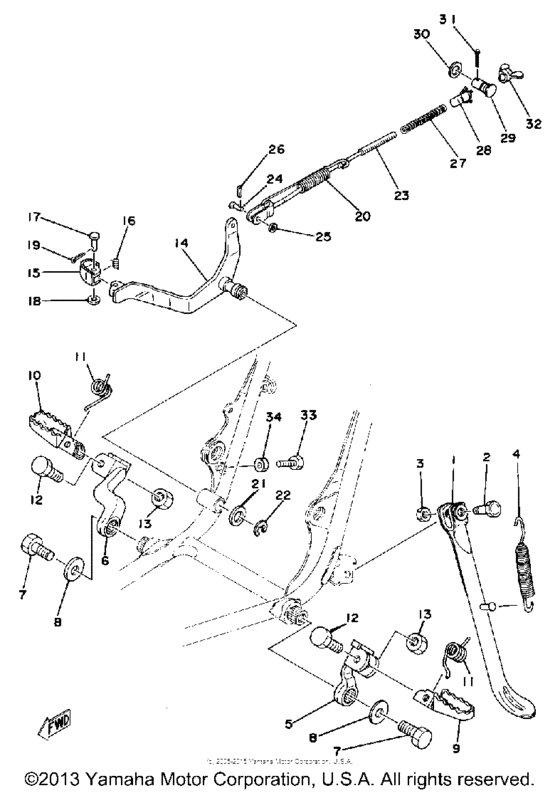

Stand-footrest-brake pedal Diagram Yamaha IT
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1W2-27311-01-00
Stand, Side
|
1W2-27311-01-00 |
— | ||
|
2
|
2
90109-103A1-00 Bolt |
90109-103A1-00 |
from US $3.54 |
||
| replacement | |||||
|
2
|
2
90109-10473-00 Bolt |
90109-10473-00 |
from US $3.54 |
||
|
3
|
3
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
3
|
3
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
4
|
4
90507-29008-00 Spring, Tension |
90507-29008-00 |
from US $17.28 |
||
|
5
|
5
2W6-27412-00-00
Bracket, Footrest 1
|
2W6-27412-00-00 |
— | ||
|
6
|
6
2W6-27422-00-00
Bracket, Footrest 2
|
2W6-27422-00-00 |
— | ||
|
7
|
7
97011-10016-00 Bolt,hexagon |
97011-10016-00 |
from US $3.26 |
||
| replacement | |||||
|
7
|
7
970-17100-16-00 Bolt,hexagon |
970-17100-16-00 |
from US $2.64 |
||
|
8
|
8
90201-10639-00 Washer, Plate |
90201-10639-00 |
from US $6.09 |
||
|
9
|
9
3R4-27411-00-00 Footrest 1 |
3R4-27411-00-00 |
US $41.86 |
||
| replacement | |||||
|
9
|
9
22W-27411-01-90 Footrest 1 |
22W-27411-01-90 |
from US $13.90 |
||
|
10
|
10
3R4-27421-00-00 Footrest 2 (3R1-27421-00)3R1-27421-00 |
3R4-27421-00-00 |
from US $41.86 |
||
| replacement | |||||
|
10
|
10
22W-27421-01-90 Footrest 2 (3R1-27421-00)3R1-27421-00 |
22W-27421-01-90 |
from US $36.11 |
||
|
11
|
11
90508-20023-00 Spring, Torsion |
90508-20023-00 |
from US $1.70 |
||
|
12
|
12
90101-08428-00 Bolt |
90101-08428-00 |
from US $4.48 |
||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
95611-08100-00 Nut (2H1) |
95611-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
13
|
13
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
14
|
14
2W6-27211-00-33
Pedal, Brake
|
2W6-27211-00-33 |
— | ||
|
15
|
15
55V-27242-00-00 Pedal, Brake |
55V-27242-00-00 |
from US $16.29 |
||
|
16
|
16
90508-14352-00 Spring, Torsion |
90508-14352-00 |
from US $1.70 |
||
|
17
|
17
91701-06022-00 Pin |
91701-06022-00 |
from US $1.56 |
||
|
18
|
18
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
18
|
18
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
18
|
18
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
18
|
18
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
19
|
19
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
19
|
19
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
20
|
20
90506-18289-00 Spring, Tension |
90506-18289-00 |
from US $5.24 |
||
|
21
|
21
90201-14212-00 Washer, Plate |
90201-14212-00 |
from US $2.55 |
||
|
22
|
22
93430-10015-00 Circlip |
93430-10015-00 |
from US $2.41 |
||
|
23
|
23
2K5-27231-00-00
Rod, Brake
|
2K5-27231-00-00 |
— | ||
|
24
|
24
90240-06103-00 Pin, Clevis (24X) |
90240-06103-00 |
from US $4.11 |
||
|
25
|
25
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
26
|
26
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
26
|
26
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
27
|
27
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.70 |
||
|
28
|
28
1W2-27239-00-00
Seat, Spring
|
1W2-27239-00-00 |
— | ||
|
29
|
29
1W2-27237-00-00 Pin, Clevis |
1W2-27237-00-00 |
US $31.84 |
||
|
30
|
30
90201-12631-00 Washer, Plate (583) |
90201-12631-00 |
from US $1.56 |
||
|
31
|
31
91401-25030-00 Pin. Cotter |
91401-25030-00 |
from US $1.56 |
||
| replacement | |||||
|
31
|
31
91490-25030-00 Pin. Cotter |
91490-25030-00 |
from US $1.34 |
||
|
32
|
32
90179-06411-00 Nut |
90179-06411-00 |
from US $1.34 |
||
|
33
|
33
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
33
|
33
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
34
|
34
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
34
|
34
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
