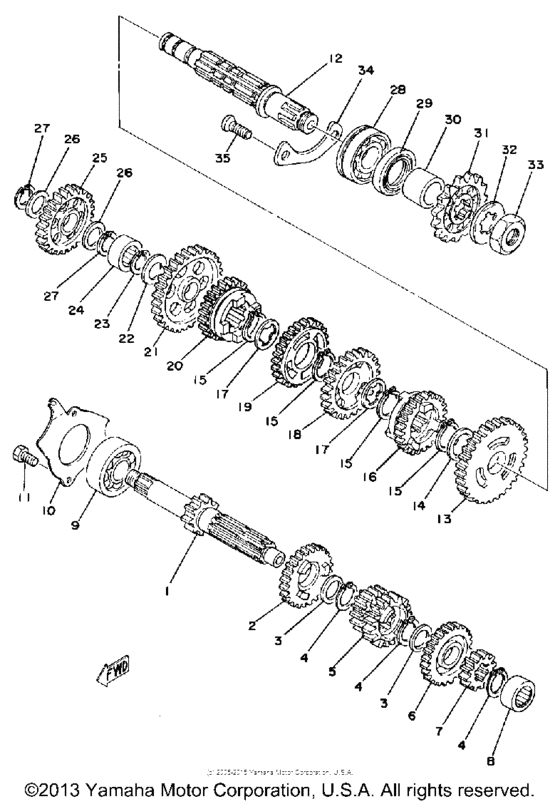

Transmission Diagram Yamaha IT
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1W2-17411-00-00
Axle, Main
|
1W2-17411-00-00 |
— | ||
|
2
|
2
1W2-17151-00-00
Gear, 5Th Pinion
5TH PINION |
1W2-17151-00-00 |
— | ||
|
3
|
3
90201-20266-00 Washer, Plate |
90201-20266-00 |
from US $1.56 |
||
|
4
|
4
93410-20038-00 Circlip |
93410-20038-00 |
from US $1.34 |
||
|
5
|
5
2W6-17131-01-00
Gear, 3Rd Pinion
3RD PINION |
2W6-17131-01-00 |
— | ||
|
6
|
6
1W2-17161-00-00
Gear, 6Th Pinion
6TH PINION |
1W2-17161-00-00 |
— | ||
|
7
|
7
1W2-17121-00-00
Gear, 2Nd Pinion
2ND PINION |
1W2-17121-00-00 |
— | ||
|
8
|
8
93311-41530-00 Bearing |
93311-41530-00 |
from US $20.97 |
||
|
9
|
9
933-06303-09-00
Bearing
|
933-06303-09-00 |
— | ||
| replacement | |||||
|
9
|
9
93306-30317-00 Bearing |
93306-30317-00 |
from US $28.19 |
||
|
10
|
10
1W1-17471-01-00 Plate, Cover |
1W1-17471-01-00 |
from US $7.70 |
||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
11
|
11
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
12
|
12
1W1-17421-00-00
Axle, Drive
|
1W1-17421-00-00 |
— | ||
|
13
|
13
1W2-17221-01-00
Gear, 2Nd Wheel
2ND WHEEL |
1W2-17221-01-00 |
— | ||
|
14
|
14
90201-22555-00 Washer, Plate |
90201-22555-00 |
from US $1.70 |
||
|
15
|
15
93410-22039-00 Circlip |
93410-22039-00 |
from US $1.70 |
||
|
16
|
16
1W2-17261-00-00 Gear, 6Th Wheel6TH WHEEL |
1W2-17261-00-00 |
US $97.70 |
||
|
17
|
17
90209-18135-00 Washer |
90209-18135-00 |
from US $1.84 |
||
|
18
|
18
1W2-17241-00-00
Gear, 4Th Wheel
4TH WHEEL |
1W2-17241-00-00 |
— | ||
|
19
|
19
2W6-17231-01-00
Gear, 3Rd Wheel
3RD WHEEL |
2W6-17231-01-00 |
— | ||
|
20
|
20
2W6-17251-01-00
Gear, 5Th Wheel
5TH WHEEL |
2W6-17251-01-00 |
— | ||
|
21
|
21
1W2-17211-01-00
Gear, 1St Wheel
1ST WHEEL |
1W2-17211-01-00 |
— | ||
|
22
|
22
90201-15701-00 Washer, Plate (T=1.0) |
90201-15701-00 |
from US $1.84 |
||
|
23
|
23
934-40150-12-00
Circlip
|
934-40150-12-00 |
— | ||
| replacement | |||||
|
23
|
23
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.07 |
||
|
24
|
24
93311-31567-00 Bearing |
93311-31567-00 |
from US $22.82 |
||
|
25
|
25
525-15651-00-00 Gear, Kick Idle (25T)25T |
525-15651-00-00 |
from US $44.76 |
||
|
26
|
26
137-17417-00-05 Shim 1 (0.5T)0.5T |
137-17417-00-05 |
from US $3.12 |
||
|
27
|
27
934-40150-12-00
Circlip
|
934-40150-12-00 |
— | ||
| replacement | |||||
|
27
|
27
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.07 |
||
|
28
|
28
93306-30411-00 Bearing (B6304) |
93306-30411-00 |
from US $16.15 |
||
|
29
|
29
931-02260-42-00 Oil Seal |
931-02260-42-00 |
from US $6.09 |
||
|
30
|
30
90387-202A0-00 Collar |
90387-202A0-00 |
from US $9.49 |
||
|
31
|
31
938-32110-07-00 Sprocket, Drive 11T11T |
938-32110-07-00 |
from US $17.24 |
||
|
31
|
31
938-32120-14-00 Sprocket, Drive 12T12T STD |
938-32120-14-00 |
US $20.29 |
||
|
31
|
31
938-32130-27-00
Sprocket, Drive 13T
13T |
938-32130-27-00 |
— | ||
|
32
|
32
90215-16127-00 Washer, Lock (1L8) |
90215-16127-00 |
from US $3.68 |
||
|
33
|
33
90179-16226-00 Nut (1L8) |
90179-16226-00 |
from US $2.66 |
||
|
34
|
34
1W1-15381-00-00 Plate, Brng Cover |
1W1-15381-00-00 |
from US $4.37 |
||
|
35
|
35
986-03060-12-00
Screw, Oval Head (92701-06012)
92701-06012 |
986-03060-12-00 |
— | ||
