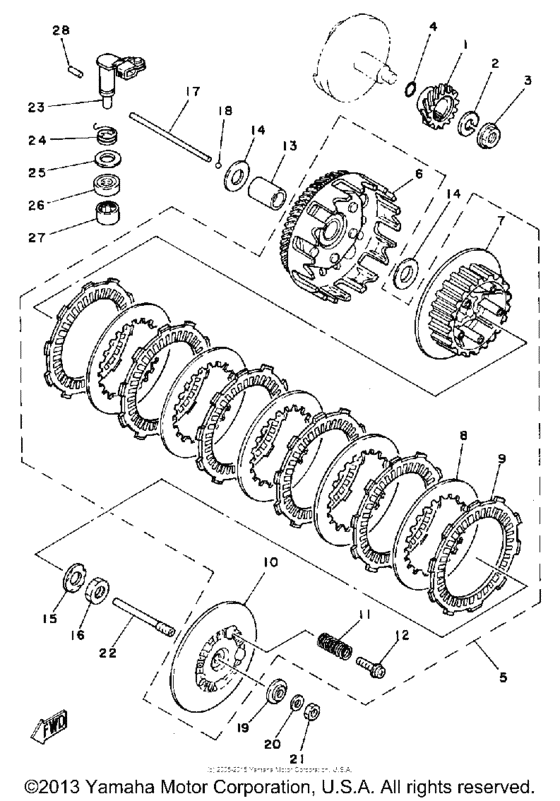

Clutch Diagram Yamaha IT
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3R6-16111-00-00
Gear, Pri Drive
|
3R6-16111-00-00 |
— | ||
|
2
|
2
90204-12007-00 Washer, Spring |
90204-12007-00 |
from US $3.26 |
||
|
3
|
3
90179-12335-00 Nut, Specl Shape |
90179-12335-00 |
from US $10.21 |
||
|
4
|
4
93210-20027-00 O-RingO-ring (1.7-20) |
93210-20027-00 |
from US $4.11 |
||
|
5
|
5
3R6-16300-00-00
Clutch Assembly
|
3R6-16300-00-00 |
— | ||
|
6
|
6
3R6-16150-00-00
Pri Drvn Gearcomp. (52T)
|
3R6-16150-00-00 |
— | ||
|
7
|
7
1G8-16371-00-00
Boss, Clutch
|
1G8-16371-00-00 |
— | ||
|
8
|
8
137-16325-70-00 Plate, Clutch 2 |
137-16325-70-00 |
from US $17.78 |
||
| replacement | |||||
|
8
|
8
137-16325-80-00 Plate, Clutch 2 |
137-16325-80-00 |
US $16.85 |
||
|
9
|
9
537-16321-00-00 Plate, Friction |
537-16321-00-00 |
from US $9.26 |
||
|
10
|
10
1W1-16351-00-00
Plate, Pressure 1
|
1W1-16351-00-00 |
— | ||
|
11
|
11
90501-20361-00 Spring, Compression |
90501-20361-00 |
from US $4.53 |
||
|
12
|
12
90159-05011-00 Screw, With Washer |
90159-05011-00 |
from US $1.70 |
||
|
13
|
13
905-60171-90-00
Spacer
|
905-60171-90-00 |
— | ||
|
14
|
14
90201-174E1-00 Washer, Plate (4V2) |
90201-174E1-00 |
from US $9.45 |
||
|
15
|
15
90215-14204-00 Washer, Lock (2K6) |
90215-14204-00 |
from US $3.97 |
||
|
16
|
16
90170-14171-00 Nut |
90170-14171-00 |
from US $2.32 |
||
|
17
|
17
2X3-16357-00-00 Rod, Push 2 |
2X3-16357-00-00 |
from US $10.91 |
||
|
18
|
18
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.35 |
||
| replacement | |||||
|
18
|
18
93503-16003-00 Ball |
93503-16003-00 |
from US $1.34 |
||
|
19
|
19
30X-16358-00-00
Plate, Push
|
30X-16358-00-00 |
— | ||
| replacement | |||||
|
19
|
19
1W1-16358-01-00 Plate, Push |
1W1-16358-01-00 |
from US $10.91 |
||
|
20
|
20
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
21
|
21
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
22
|
22
1W1-16356-02-00 Rod, Push 1 |
1W1-16356-02-00 |
from US $14.03 |
||
|
23
|
23
3R3-16380-02-00
Push Lever Assembly
|
3R3-16380-02-00 |
— | ||
|
24
|
24
905-08144-26-00
Spring, Torsion
|
905-08144-26-00 |
— | ||
|
25
|
25
90201-14217-00 Washer, Plate |
90201-14217-00 |
from US $1.70 |
||
|
26
|
26
93104-14059-00 Oil Seal |
93104-14059-00 |
from US $4.30 |
||
|
27
|
27
93315-21429-00 Bearing |
93315-21429-00 |
from US $21.68 |
||
| replacements | |||||
|
27
|
27
93315-214Y5-00
Brg,cyl-Cal Roller (689)
|
93315-214Y5-00 |
— | ||
|
27
|
27
933-17214-Y9-00
Bearing, Cylindrical(36F)
|
933-17214-Y9-00 |
— | ||
|
28
|
28
93604-16092-00 Pin, Dowel |
93604-16092-00 |
from US $1.56 |
||
