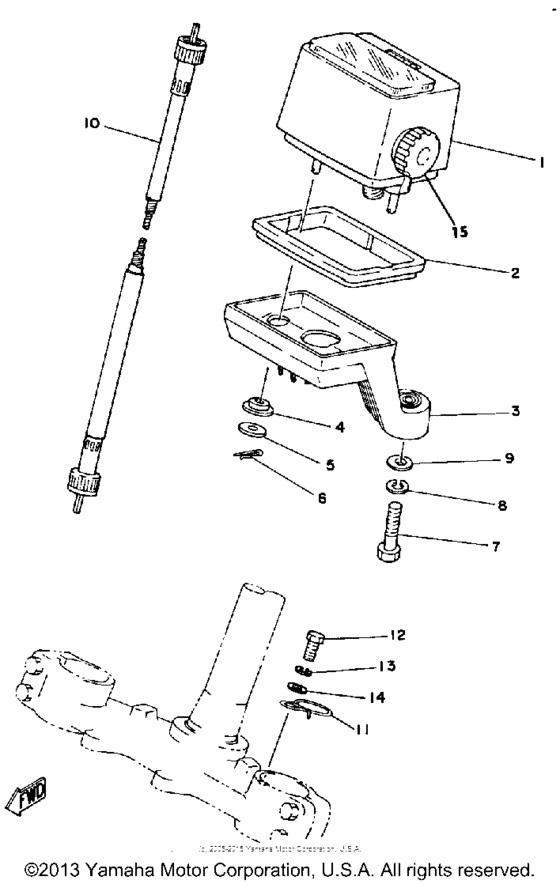

Meter Diagram Yamaha IT
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3R8-83570-60-00
Speedometer Assembly
|
3R8-83570-60-00 |
— | ||
|
2
|
2
3R8-83513-00-00
Damper
|
3R8-83513-00-00 |
— | ||
|
3
|
3
3R8-83519-00-00
Bracket, Meter
|
3R8-83519-00-00 |
— | ||
|
4
|
4
1M1-83526-00-00
Damper 2
|
1M1-83526-00-00 |
— | ||
| replacement | |||||
|
4
|
4
1M1-83526-01-00 Damper 2 |
1M1-83526-01-00 |
from US $5.72 |
||
|
5
|
5
902-01052-E2-00
Washer, Plate
|
902-01052-E2-00 |
— | ||
| replacement | |||||
|
5
|
5
90201-05032-00 Washer Plate 803835240000 |
90201-05032-00 |
from US $1.70 |
||
|
6
|
6
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
7
|
7
970-21060-30-00
Bolt
|
970-21060-30-00 |
— | ||
| replacements | |||||
|
7
|
7
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
7
|
7
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
9
|
9
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
9
|
9
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
9
|
9
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
9
|
9
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
10
|
10
34X-83550-01-00 Spdmtr, Cable |
34X-83550-01-00 |
from US $37.89 |
||
| replacement | |||||
|
10
|
10
16M-83550-01-00 Speedometer Cable Assy |
16M-83550-01-00 |
from US $29.81 |
||
|
11
|
11
2A6-83595-00-00 Clamp |
2A6-83595-00-00 |
US $3.26 |
||
|
12
|
12
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
12
|
12
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
14
|
14
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
14
|
14
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
14
|
14
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
15
|
15
3R8-83578-00-00 Knob, Trip Meter |
3R8-83578-00-00 |
from US $11.32 |
||
