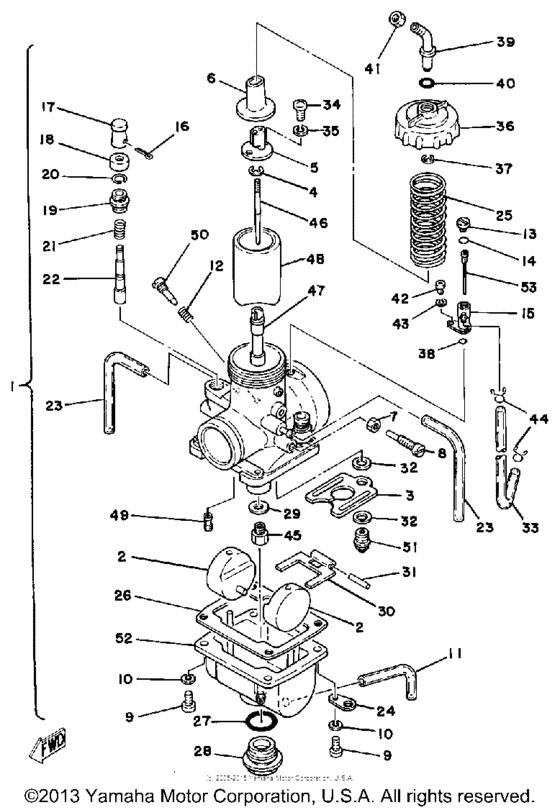

Carburetor Diagram Yamaha IT
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3R6-14101-00-00
Carburetor Assembly 1
|
3R6-14101-00-00 |
— | ||
|
2
|
2
310-14185-00-00
Float
|
310-14185-00-00 |
— | ||
|
3
|
3
483-14146-00-00
Plate
|
483-14146-00-00 |
— | ||
|
4
|
4
164-14137-00-00
Clip
|
164-14137-00-00 |
— | ||
| replacement | |||||
|
4
|
4
3FA-14137-00-00 Clip |
3FA-14137-00-00 |
from US $2.69 |
||
|
5
|
5
509-14274-00-00
Connector
|
509-14274-00-00 |
— | ||
|
6
|
6
509-14136-00-00
Seat, Spring
|
509-14136-00-00 |
— | ||
|
7
|
7
802-14161-00-00 Nut, Cable Adjusting |
802-14161-00-00 |
from US $2 |
||
|
8
|
8
24X-14103-00-00
Throttle Screw Set
|
24X-14103-00-00 |
— | ||
| replacement | |||||
|
8
|
8
40T-14103-00-00 Throttle Screw Set |
40T-14103-00-00 |
from US $18.28 |
||
|
9
|
9
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
9
|
9
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
10
|
10
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
11
|
11
2J2-14196-00-00 Pipe |
2J2-14196-00-00 |
from US $25.08 |
||
|
12
|
12
127-14134-00-00 Spring, Air Adj |
127-14134-00-00 |
from US $9.49 |
||
|
13
|
13
3G2-14115-00-00
Plug, Screw
|
3G2-14115-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
822-14147-00-00
O-Ring
|
822-14147-00-00 |
— | ||
| replacement | |||||
|
14
|
14
36Y-14147-00-00 O-Ring |
36Y-14147-00-00 |
from US $7.51 |
||
|
15
|
15
1X2-14244-00-00
Holder, Nozzle
|
1X2-14244-00-00 |
— | ||
|
16
|
16
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.55 |
||
|
17
|
17
737-14261-00-00
Holder
|
737-14261-00-00 |
— | ||
|
18
|
18
637-14173-00-00 Cover, Plunger Cap |
637-14173-00-00 |
US $18.86 |
||
|
19
|
19
152-14174-00-00 Cap, Plunger |
152-14174-00-00 |
from US $27.49 |
||
|
20
|
20
353-14138-00-00 Clip, Plunger |
353-14138-00-00 |
from US $7.76 |
||
|
21
|
21
132-14135-00-00 Spring, Plunger |
132-14135-00-00 |
from US $3.68 |
||
|
22
|
22
737-14171-01-00
Plunger, Starter
|
737-14171-01-00 |
— | ||
|
23
|
23
310-14197-00-00 Hose |
310-14197-00-00 |
from US $4.82 |
||
| replacement | |||||
|
23
|
23
89A-14987-00-00 Hose |
89A-14987-00-00 |
from US $4.53 |
||
|
24
|
24
313-14146-00-00 Plate |
313-14146-00-00 |
US $19.58 |
||
|
25
|
25
363-14131-00-00
Spring, Throttle Valve
|
363-14131-00-00 |
— | ||
|
26
|
26
483-14184-00-00 Gasket, Float Chamber |
483-14184-00-00 |
from US $21.60 |
||
|
27
|
27
2K6-14147-00-00 O-Ring |
2K6-14147-00-00 |
from US $13.70 |
||
|
28
|
28
2K6-14115-00-00
Plug, Screw
|
2K6-14115-00-00 |
— | ||
|
29
|
29
537-14153-00-00
Washer, Main Jet
|
537-14153-00-00 |
— | ||
|
30
|
30
310-14187-00-00
Arm, Float
|
310-14187-00-00 |
— | ||
|
31
|
31
537-14186-00-00 Pin, Float |
537-14186-00-00 |
from US $2.13 |
||
|
32
|
32
239-14195-00-00 Washer, Needle Valve |
239-14195-00-00 |
from US $11.76 |
||
|
33
|
33
3V3-14987-00-00 Hose |
3V3-14987-00-00 |
from US $24.51 |
||
|
34
|
34
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
35
|
35
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
36
|
36
3R3-14158-00-00
Top, Mixing Chamber
|
3R3-14158-00-00 |
— | ||
|
37
|
37
363-14137-00-00 Clip |
363-14137-00-00 |
from US $12.13 |
||
|
38
|
38
214-14147-00-00 O-Ring |
214-14147-00-00 |
from US $10.66 |
||
|
39
|
39
24X-14106-00-00
Cble Ajst Scrw Setscrew Set
|
24X-14106-00-00 |
— | ||
|
40
|
40
8F2-14147-00-00 O-Ring |
8F2-14147-00-00 |
from US $4.14 |
||
|
41
|
41
127-14161-00-00 Nut, Cable Adjusting |
127-14161-00-00 |
from US $4.96 |
||
|
42
|
42
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
43
|
43
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
43
|
43
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
44
|
44
8A7-14139-00-00 Clip, Pipe |
8A7-14139-00-00 |
from US $3.40 |
||
|
45
|
45
137-14143-40-A1 Jet, Main #200 |
137-14143-40-A1 |
from US $8.94 |
||
|
45
|
45
137-14143-42-A1 Jet, Main #210 (210)#210 210 U.R. |
137-14143-42-A1 |
from US $12.94 |
||
|
45
|
45
137-14143-44-A1 Jet, Main 220 (220)220 220 U.R. |
137-14143-44-A1 |
from US $8.94 |
||
|
46
|
46
239-14116-21-00
Needle (6F21-3)
6F21-3 |
239-14116-21-00 |
— | ||
|
47
|
47
239-14141-48-00
Nozzle, Main P-8
|
239-14141-48-00 |
— | ||
|
48
|
48
3R6-14112-20-00
Valve, Throttle 1
|
3R6-14112-20-00 |
— | ||
|
49
|
49
193-14142-60-00
Jet, Pilot (#60)
|
193-14142-60-00 |
— | ||
|
50
|
50
23X-14104-00-00 Air Screw Set |
23X-14104-00-00 |
from US $10.39 |
||
|
51
|
51
24X-14107-33-00 Needle Valve Set (#3.3) |
24X-14107-33-00 |
from US $56.30 |
||
|
52
|
52
3R6-14181-16-00
Body, Float Chmbr 1
|
3R6-14181-16-00 |
— | ||
|
53
|
53
3G2-1423A-67-00 Jet, Main (# 82.5)# 82.5 |
3G2-1423A-67-00 |
from US $12.15 |
||
