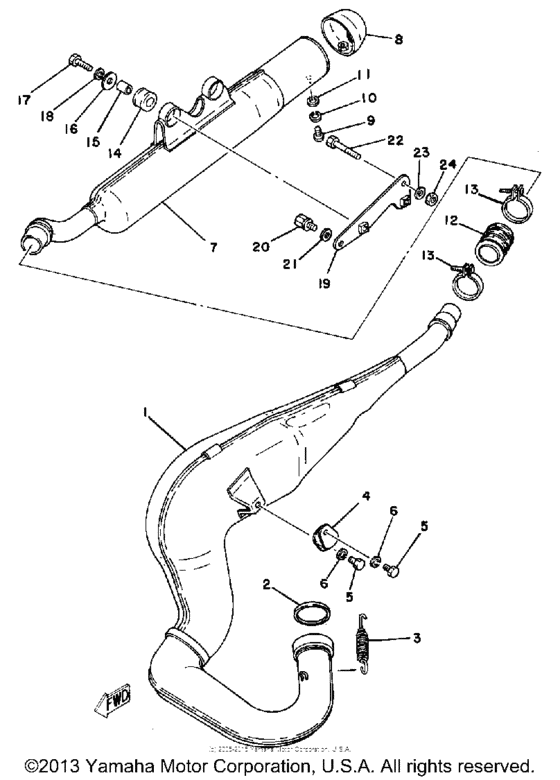

Exhaust Diagram Yamaha IT
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3R6-14610-00-00
Exhaust Pipe Assembly L
|
3R6-14610-00-00 |
— | ||
|
2
|
2
3R6-14613-01-00 Gasket, Exst Pipe |
3R6-14613-01-00 |
from US $9.35 |
||
|
3
|
3
90507-20030-00 Spring, Tension |
90507-20030-00 |
from US $4.53 |
||
|
4
|
4
565-14771-00-00 Stay, Muffler 1 |
565-14771-00-00 |
from US $33.58 |
||
| replacement | |||||
|
4
|
4
565-14771-01-00 Stay, Muffler 1 |
565-14771-01-00 |
from US $20.34 |
||
|
5
|
5
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
5
|
5
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
7
|
7
3R6-14753-00-00
Silencer, Exhaust
|
3R6-14753-00-00 |
— | ||
|
8
|
8
1W2-14787-00-00
Cap, Silencer
|
1W2-14787-00-00 |
— | ||
|
9
|
9
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
9
|
9
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
11
|
11
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
11
|
11
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
11
|
11
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
11
|
11
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
12
|
12
1W2-14714-00-00 Gasket, Muffler |
1W2-14714-00-00 |
from US $16.88 |
||
|
13
|
13
90460-37026-00 Clamp, Hose |
90460-37026-00 |
from US $4.53 |
||
| replacement | |||||
|
13
|
13
90460-37130-00 Clamp, Hose |
90460-37130-00 |
from US $4.53 |
||
|
14
|
14
90480-22269-00
Grommet
|
90480-22269-00 |
— | ||
|
15
|
15
90387-081A3-00
Collar
|
90387-081A3-00 |
— | ||
|
16
|
16
90201-085E6-00 Washer Plate |
90201-085E6-00 |
from US $4.39 |
||
|
17
|
17
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
17
|
17
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
17
|
17
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
17
|
17
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
18
|
18
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
19
|
19
3R6-14781-00-00
Stay, Muffler 2
|
3R6-14781-00-00 |
— | ||
|
20
|
20
90109-08573-00
Bolt
|
90109-08573-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
22
|
22
97313-06045-00 Bolt, Hexagon |
97313-06045-00 |
from US $1.57 |
||
| replacement | |||||
|
22
|
22
97013-06045-00 Bolt |
97013-06045-00 |
from US $1.57 |
||
|
23
|
23
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
23
|
23
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
24
|
24
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
24
|
24
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
