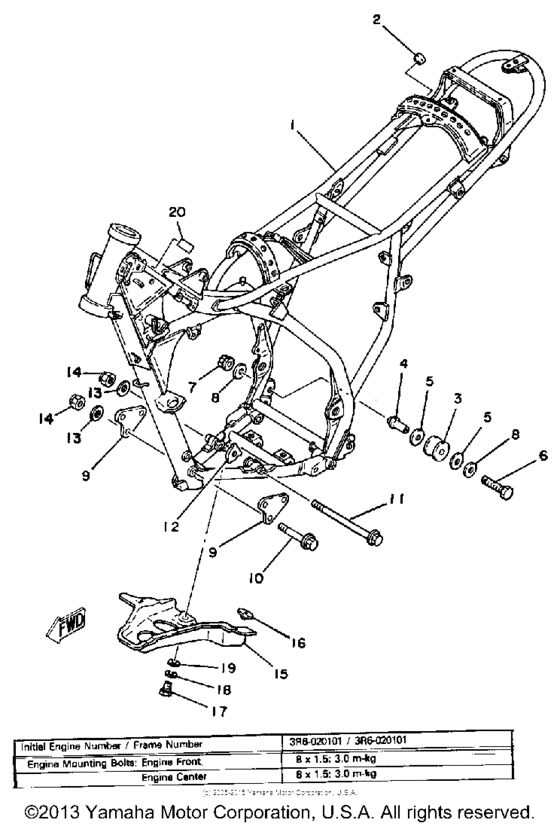

Frame Diagram Yamaha IT
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3R6-21110-02-33
Frame
|
3R6-21110-02-33 |
— | ||
|
2
|
2
903-39130-05-00 Plug |
903-39130-05-00 |
from US $3.26 |
||
|
3
|
3
2K6-22178-00-00
Tensioner
|
2K6-22178-00-00 |
— | ||
|
4
|
4
3R3-2148A-00-00
Shaft
|
3R3-2148A-00-00 |
— | ||
|
5
|
5
90201-13202-00 Washer Plate 201156530000 |
90201-13202-00 |
from US $1.70 |
||
| replacement | |||||
|
5
|
5
90201-13013-00 Washer, Plate |
90201-13013-00 |
from US $1.70 |
||
|
6
|
6
97313-08050-00 Bolt,hex |
97313-08050-00 |
from US $5.24 |
||
| replacement | |||||
|
6
|
6
97013-08050-00 Bolt, Hexagon |
97013-08050-00 |
from US $4.24 |
||
|
7
|
7
95712-08300-00 Nut, Lock |
95712-08300-00 |
from US $3.21 |
||
| replacement | |||||
|
7
|
7
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
8
|
8
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
9
|
9
3R3-21415-00-00
Bracket, Frt Upr 1
|
3R3-21415-00-00 |
— | ||
|
10
|
10
95811-08075-00 Bolt, Flange |
95811-08075-00 |
from US $1.98 |
||
| replacement | |||||
|
10
|
10
95817-08075-00 Bolt, Flange |
95817-08075-00 |
from US $1.98 |
||
|
11
|
11
95811-08160-00 Bolt, Flange(51Y) |
95811-08160-00 |
from US $10.06 |
||
| replacement | |||||
|
11
|
11
95817-08160-00 Bolt, Flange |
95817-08160-00 |
from US $10.06 |
||
|
12
|
12
90214-09019-00
Washer, Claw
|
90214-09019-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
14
|
14
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
14
|
14
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
15
|
15
3R6-21471-00-00
Protector, Engine
|
3R6-21471-00-00 |
— | ||
|
16
|
16
2J5-21732-00-00 Seal 1 |
2J5-21732-00-00 |
from US $7.49 |
||
|
17
|
17
97011-08016-00 Bolt(2Vy) |
97011-08016-00 |
from US $1.42 |
||
| replacement | |||||
|
17
|
17
97017-08016-00 Bolt |
97017-08016-00 |
from US $1.42 |
||
|
18
|
18
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
19
|
19
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
19
|
19
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
20
|
20
3R4-2139W-00-00
Cover
|
3R4-2139W-00-00 |
— | ||
