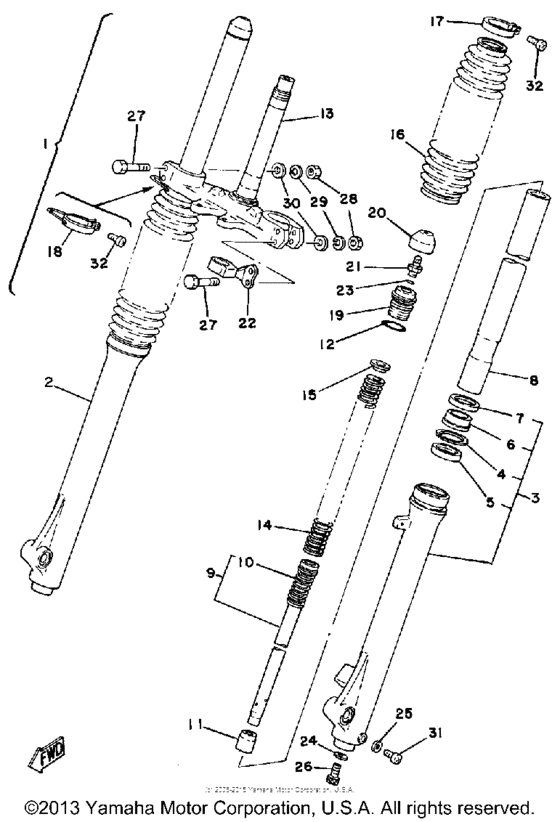

Front fork Diagram Yamaha IT
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3R6-23101-L0-00
Front Fork Assembly
|
3R6-23101-L0-00 |
— | ||
|
2
|
2
3R6-23136-L0-00
Tube, Outer 2
|
3R6-23136-L0-00 |
— | ||
|
3
|
3
3R6-23126-L0-00
Tube, Outer 1
|
3R6-23126-L0-00 |
— | ||
|
4
|
4
4A1-23156-00-00 Ring, Snap |
4A1-23156-00-00 |
from US $4.39 |
||
|
5
|
5
48Y-23145-00-00 Oil Seal |
48Y-23145-00-00 |
from US $16.86 |
||
|
6
|
6
509-23144-L0-00
Seal, Dust
|
509-23144-L0-00 |
— | ||
|
7
|
7
3R8-23148-L0-00
Cover, Dust Seal
|
3R8-23148-L0-00 |
— | ||
|
8
|
8
3R6-23110-L0-00
Inner Tube 1
|
3R6-23110-L0-00 |
— | ||
|
9
|
9
3R6-23170-L0-00
Cylinder, Frtfrk
|
3R6-23170-L0-00 |
— | ||
|
10
|
10
2X7-23151-00-00 Spring, Rebound |
2X7-23151-00-00 |
US $18.40 |
||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
39K-23173-00-00 Spindle, Taper |
39K-23173-00-00 |
US $26.15 |
||
|
12
|
12
1W1-23114-L0-00 Gasket |
1W1-23114-L0-00 |
from US $7.37 |
||
|
13
|
13
2X7-23340-00-33
Under Bracket
|
2X7-23340-00-33 |
— | ||
|
14
|
14
3R6-23141-L0-00
Spring, Front Fork
|
3R6-23141-L0-00 |
— | ||
|
14
|
14
3R6-23141-10-00
Spring, Frtfrk Soft
|
3R6-23141-10-00 |
— | ||
|
14
|
14
3R6-23141-20-00
Spring, Frtfrk Hard
|
3R6-23141-20-00 |
— | ||
|
15
|
15
1W1-23142-L0-00
Seat, Spring Upper
|
1W1-23142-L0-00 |
— | ||
|
16
|
16
2X3-23191-M0-00
Boot, Front Fork
|
2X3-23191-M0-00 |
— | ||
|
17
|
17
341-92090-60-00 Band, B00T |
341-92090-60-00 |
from US $28.30 |
||
|
18
|
18
48Y-23192-00-00
Band
|
48Y-23192-00-00 |
— | ||
|
19
|
19
1W1-23111-L0-00
Bolt, Cap
|
1W1-23111-L0-00 |
— | ||
|
20
|
20
1W1-23185-L0-00
Cover, Valve
|
1W1-23185-L0-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
509-23190-L0-00
Air Valve
|
509-23190-L0-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
3R4-23389-00-00 Guide, Wire |
3R4-23389-00-00 |
from US $15.58 |
||
|
23
|
23
509-23163-L0-00
O-Ring
|
509-23163-L0-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $3.54 |
||
|
25
|
25
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
26
|
26
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
26
|
26
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $4.82 |
||
|
27
|
27
90101-08340-00 Bolt |
90101-08340-00 |
from US $5.04 |
||
|
28
|
28
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
28
|
28
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
29
|
29
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
30
|
30
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
30
|
30
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
31
|
31
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
31
|
31
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
31
|
31
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
32
|
32
509-23194-L0-00 Screw, Boot Band |
509-23194-L0-00 |
from US $2.98 |
||
