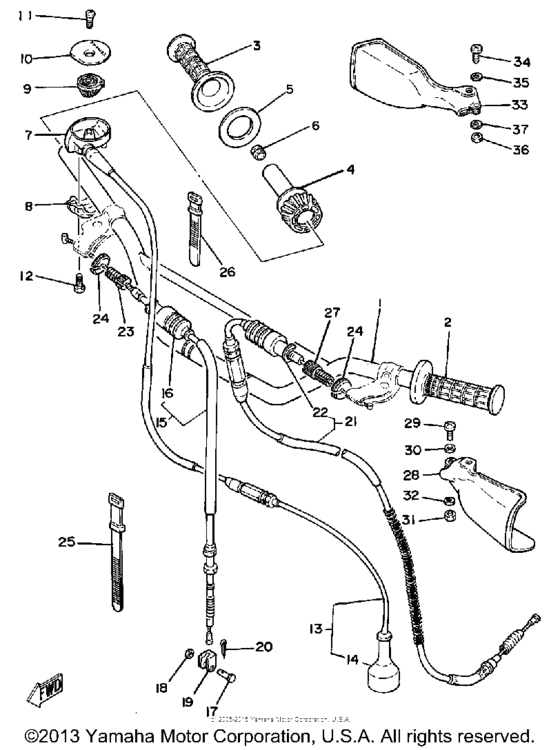

Handlebar-cable Diagram Yamaha IT
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3R6-26111-00-00 Handlebar |
3R6-26111-00-00 |
from US $99.50 |
||
| replacement | |||||
|
1
|
1
2A8-26111-00-00 Handlebar |
2A8-26111-00-00 |
from US $138.16 |
||
|
2
|
2
4V4-26241-01-00
Grip (Left)
|
4V4-26241-01-00 |
— | ||
| replacement | |||||
|
2
|
2
1LX-26241-01-00 Grip (Left) |
1LX-26241-01-00 |
from US $14.31 |
||
|
3
|
3
1LX-26242-01-00 Grip (Right) |
1LX-26242-01-00 |
from US $14.31 |
||
|
4
|
4
4V6-26243-00-00
Tube, Thrtl Guide
|
4V6-26243-00-00 |
— | ||
|
5
|
5
4V4-26249-00-00
Ring, Leaf
|
4V4-26249-00-00 |
— | ||
|
6
|
6
90338-12192-00 Plug(2Gu) |
90338-12192-00 |
from US $1.66 |
||
|
7
|
7
4V4-26281-00-00
Cap, Grip Upper
|
4V4-26281-00-00 |
— | ||
|
8
|
8
4V4-26282-00-00
Cap, Grip Lower
|
4V4-26282-00-00 |
— | ||
|
9
|
9
4V6-2628E-00-00
Gear, Bevel
|
4V6-2628E-00-00 |
— | ||
|
10
|
10
4V4-2628F-09-00 Cap, Gear |
4V4-2628F-09-00 |
from US $26.07 |
||
|
11
|
11
98906-05010-00 Screw, Bind |
98906-05010-00 |
from US $1.21 |
||
| replacement | |||||
|
11
|
11
98907-05010-00 Screw, Bind |
98907-05010-00 |
from US $1.21 |
||
|
12
|
12
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
12
|
12
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
13
|
13
3R6-26311-10-00
Cable, Throttle 1
|
3R6-26311-10-00 |
— | ||
|
14
|
14
500-26329-01-00
Cap, Rubber
|
500-26329-01-00 |
— | ||
|
15
|
15
3R6-26341-01-00
Cable, Brake
|
3R6-26341-01-00 |
— | ||
|
16
|
16
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $14.17 |
||
|
17
|
17
90240-08013-00 Pin, Clevis |
90240-08013-00 |
from US $1.66 |
||
|
18
|
18
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
19
|
19
156-26347-00-00 Joint, Wire |
156-26347-00-00 |
from US $10.33 |
||
|
20
|
20
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
21
|
21
3R3-26335-02-00
Cable, clutch
|
3R3-26335-02-00 |
— | ||
|
22
|
22
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $14.17 |
||
|
23
|
23
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
| replacement | |||||
|
23
|
23
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
24
|
24
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
24
|
24
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
25
|
25
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
26
|
26
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
27
|
27
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
| replacement | |||||
|
27
|
27
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
28
|
28
3Y0-26141-00-00
Guard, Brush 1
WHITE |
3Y0-26141-00-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
WHITE |
999-99999-99-00 |
— | ||
|
29
|
29
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
29
|
29
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
30
|
30
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
30
|
30
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
30
|
30
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
30
|
30
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
31
|
31
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
31
|
31
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
32
|
32
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
33
|
33
3Y0-26142-00-00
Guard, Brush 2
WHITE |
3Y0-26142-00-00 |
— | ||
|
34
|
34
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
34
|
34
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
35
|
35
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
35
|
35
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
35
|
35
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
35
|
35
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
36
|
36
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
36
|
36
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
37
|
37
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
