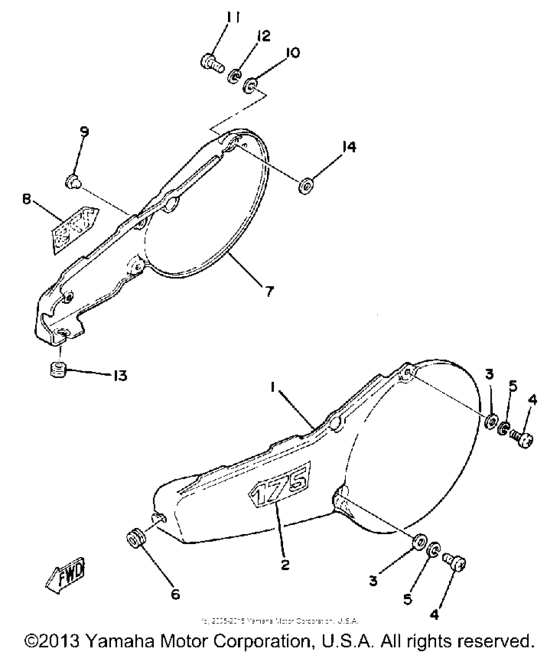

Side cover Diagram Yamaha IT
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3R3-21711-10-26
Cover, Side 1
COMP. YELLOW/6WHITE |
3R3-21711-10-26 |
— | ||
|
2
|
2
3R6-21737-10-00
Emblem
|
3R6-21737-10-00 |
— | ||
|
3
|
3
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
3
|
3
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
4
|
4
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
4
|
4
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
5
|
5
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
6
|
6
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.66 |
||
|
7
|
7
3R6-21721-10-26
Cover, Side 2
COMP. YELLOW/6WHITE |
3R6-21721-10-26 |
— | ||
|
8
|
8
3R6-21737-10-00
Emblem
|
3R6-21737-10-00 |
— | ||
|
9
|
9
22W-24181-00-00 Damper, Locating 1 |
22W-24181-00-00 |
from US $3.26 |
||
|
10
|
10
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
10
|
10
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
11
|
11
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
11
|
11
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
13
|
13
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.66 |
||
|
14
|
14
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
