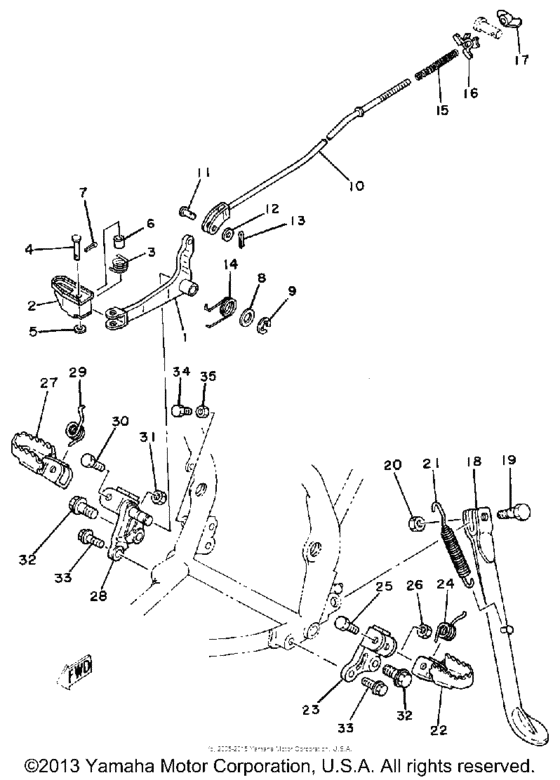

Stand-footrest Diagram Yamaha IT
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3R6-27211-01-90
Pedal, Brake
|
3R6-27211-01-90 |
— | ||
|
2
|
2
3R6-27242-00-00
Pedal, Brake
|
3R6-27242-00-00 |
— | ||
|
3
|
3
90508-20451-00
Spring, Torsion
|
90508-20451-00 |
— | ||
|
4
|
4
91701-08032-00 Pin |
91701-08032-00 |
from US $3.68 |
||
|
5
|
5
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
5
|
5
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
6
|
6
90387-08762-00 Collar |
90387-08762-00 |
from US $1.70 |
||
| replacement | |||||
|
6
|
6
90387-08785-00 Collar (7G5) |
90387-08785-00 |
from US $1.70 |
||
|
7
|
7
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
7
|
7
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
8
|
8
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.34 |
||
|
9
|
9
93430-09038-00 Circlip |
93430-09038-00 |
from US $2.83 |
||
|
10
|
10
3R6-27231-00-00
Rod, Brake
|
3R6-27231-00-00 |
— | ||
|
11
|
11
90240-06103-00 Pin, Clevis (24X) |
90240-06103-00 |
from US $4.11 |
||
|
12
|
12
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
13
|
13
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
14
|
14
905-08324-55-00
Spring, Torsion
|
905-08324-55-00 |
— | ||
|
15
|
15
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.70 |
||
|
16
|
16
1W2-27239-00-00
Seat, Spring
|
1W2-27239-00-00 |
— | ||
|
17
|
17
90179-06411-00 Nut |
90179-06411-00 |
from US $1.34 |
||
|
18
|
18
1W1-27311-10-00
Stand, Side
|
1W1-27311-10-00 |
— | ||
|
19
|
19
90109-103A1-00 Bolt |
90109-103A1-00 |
from US $3.54 |
||
| replacement | |||||
|
19
|
19
90109-10473-00 Bolt |
90109-10473-00 |
from US $3.54 |
||
|
20
|
20
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
20
|
20
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
21
|
21
90507-29008-00 Spring, Tension |
90507-29008-00 |
from US $17.28 |
||
|
22
|
22
5X3-27411-00-00 Footrest 1 |
5X3-27411-00-00 |
from US $39.65 |
||
| replacement | |||||
|
22
|
22
22W-27411-01-90 Footrest 1 |
22W-27411-01-90 |
from US $13.90 |
||
|
23
|
23
4V2-27412-01-00
Bracket, Footrest 1 (4V2-27412-
4V2-27412- |
4V2-27412-01-00 |
— | ||
|
24
|
24
90508-20023-00 Spring, Torsion |
90508-20023-00 |
from US $1.70 |
||
|
25
|
25
90101-08428-00 Bolt |
90101-08428-00 |
from US $4.48 |
||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
95611-08100-00 Nut (2H1) |
95611-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
26
|
26
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
27
|
27
4V4-27421-00-00 Footrest 2 (3R1-27421-00)3R1-27421-00 |
4V4-27421-00-00 |
from US $41.86 |
||
| replacement | |||||
|
27
|
27
22W-27421-01-90 Footrest 2 (3R1-27421-00)3R1-27421-00 |
22W-27421-01-90 |
from US $36.11 |
||
|
28
|
28
3R6-27422-10-00
Bracket, Footrest 2
|
3R6-27422-10-00 |
— | ||
|
29
|
29
90508-20023-00 Spring, Torsion |
90508-20023-00 |
from US $1.70 |
||
|
30
|
30
90101-08428-00 Bolt |
90101-08428-00 |
from US $4.48 |
||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
31
|
31
95611-08100-00 Nut (2H1) |
95611-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
31
|
31
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
32
|
32
901-05120-96-00
Bolt, Washer Based
|
901-05120-96-00 |
— | ||
|
33
|
33
95811-10020-00 Bolt, Flange (95822-10020-00) |
95811-10020-00 |
from US $1.07 |
||
| replacement | |||||
|
33
|
33
958-17100-20-00 Bolt, Flange |
958-17100-20-00 |
from US $1.07 |
||
|
34
|
34
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
34
|
34
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.93 |
||
|
35
|
35
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
35
|
35
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
