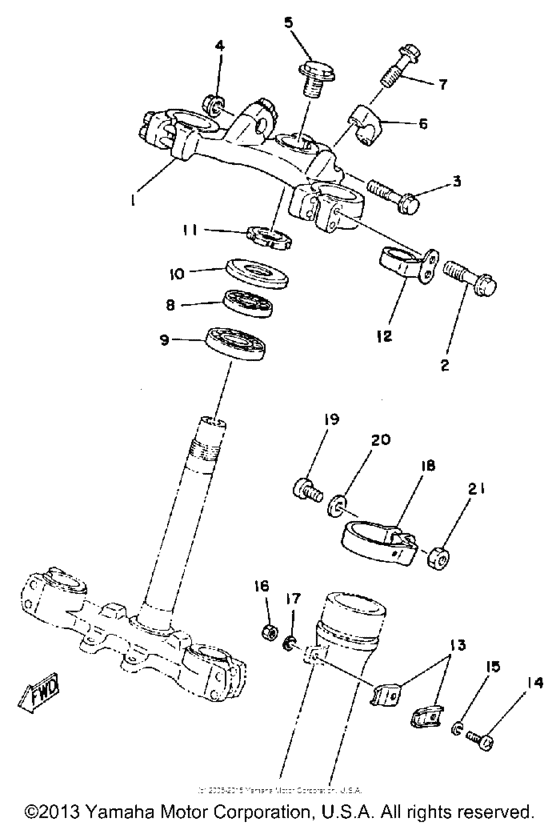

Steering Diagram Yamaha IT
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5X3-23435-01-98
Crown, Handle
|
5X3-23435-01-98 |
— | ||
|
2
|
2
90105-08091-00 Bolt, Flange |
90105-08091-00 |
from US $1.56 |
||
| replacement | |||||
|
2
|
2
958-14080-40-00 Bolt, Flange |
958-14080-40-00 |
from US $1.56 |
||
|
3
|
3
95811-08055-00 Bolt, Flange |
95811-08055-00 |
from US $1.42 |
||
| replacement | |||||
|
3
|
3
95817-08055-00 Bolt, Flange |
95817-08055-00 |
from US $1.33 |
||
|
4
|
4
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.07 |
||
| replacements | |||||
|
4
|
4
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.07 |
||
|
4
|
4
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
5
|
5
90105-14136-00 Bolt, Flange |
90105-14136-00 |
from US $2.77 |
||
| replacements | |||||
|
5
|
5
901-05142-20-00 Bolt, Flange |
901-05142-20-00 |
from US $3.68 |
||
|
5
|
5
90105-14102-00 Bolt, Flange |
90105-14102-00 |
from US $7.97 |
||
|
6
|
6
1E6-23441-00-00 Holder, Handle Upr (1E6-23441-0 |
1E6-23441-00-00 |
from US $20.97 |
||
|
7
|
7
95811-08035-00 Bolt, Flange (95821-08035-00) |
95811-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
7
|
7
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.07 |
||
|
8
|
8
933-32000-01-00 Bearing |
933-32000-01-00 |
from US $22.53 |
||
|
9
|
9
93332-00008-00 Bearing |
93332-00008-00 |
from US $52.92 |
||
|
10
|
10
3HE-23416-00-00 Cover, Ball Race 2 |
3HE-23416-00-00 |
from US $15.02 |
||
| replacement | |||||
|
10
|
10
1W1-23416-00-00 Cover, Ball Race 2 |
1W1-23416-00-00 |
from US $15.02 |
||
|
11
|
11
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
11
|
11
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.39 |
||
|
11
|
11
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
12
|
12
3R4-23317-00-00 Holder, Cable |
3R4-23317-00-00 |
from US $25.08 |
||
|
13
|
13
90462-14055-00 Clamp |
90462-14055-00 |
from US $4.82 |
||
|
14
|
14
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
14
|
14
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
16
|
16
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
17
|
17
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
17
|
17
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
17
|
17
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
18
|
18
1W2-23318-00-00
Holder, Cable 1
|
1W2-23318-00-00 |
— | ||
|
19
|
19
98501-05018-00 Screw, Pan Head |
98501-05018-00 |
from US $1.56 |
||
| replacements | |||||
|
19
|
19
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.34 |
||
|
19
|
19
98580-05018-00 Screw Panhead (669) |
98580-05018-00 |
from US $1.34 |
||
|
20
|
20
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
20
|
20
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
20
|
20
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
21
|
21
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
