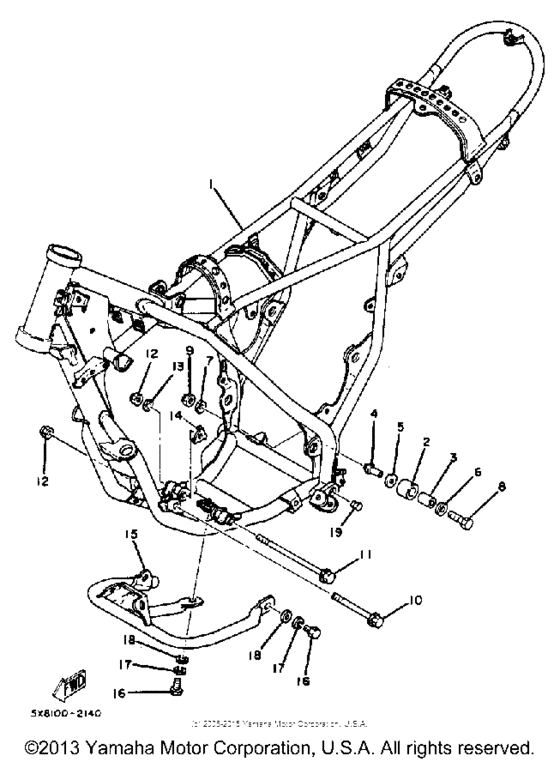

Frame Diagram Yamaha IT
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5X8-21110-00-33
Frame
|
5X8-21110-00-33 |
— | ||
|
2
|
2
30X-22178-00-00 Tensioner |
30X-22178-00-00 |
from US $9.60 |
||
|
3
|
3
4V4-22184-00-00 Bush |
4V4-22184-00-00 |
from US $3.26 |
||
|
4
|
4
3R3-2148A-00-00
Shaft
|
3R3-2148A-00-00 |
— | ||
|
5
|
5
90201-13202-00 Washer Plate 201156530000 |
90201-13202-00 |
from US $1.70 |
||
| replacement | |||||
|
5
|
5
90201-13013-00 Washer, Plate |
90201-13013-00 |
from US $1.70 |
||
|
6
|
6
90201-08753-00 Washer, Plate |
90201-08753-00 |
from US $1.98 |
||
| replacement | |||||
|
6
|
6
90201-081R9-00 Washer, Plate |
90201-081R9-00 |
from US $1.98 |
||
|
7
|
7
902-01086-38-00
Washer, Plate
|
902-01086-38-00 |
— | ||
|
8
|
8
97313-08050-00 Bolt,hex |
97313-08050-00 |
from US $5.24 |
||
| replacement | |||||
|
8
|
8
97013-08050-00 Bolt, Hexagon |
97013-08050-00 |
from US $4.24 |
||
|
9
|
9
95611-08100-00 Nut (2H1) |
95611-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
9
|
9
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
10
|
10
95811-08100-00 Bolt, Flange (2K7) |
95811-08100-00 |
from US $4.11 |
||
| replacement | |||||
|
10
|
10
95817-08100-00 Bolt, Flange |
95817-08100-00 |
from US $4.11 |
||
|
11
|
11
95811-08165-00
Bolt, Washer Based
|
95811-08165-00 |
— | ||
| replacements | |||||
|
11
|
11
90105-08473-00
Bolt, Washer Based(2Gx)
|
90105-08473-00 |
— | ||
|
11
|
11
958-17081-65-00
New Genuine Part
|
958-17081-65-00 |
— | ||
|
12
|
12
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
12
|
12
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
13
|
13
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
14
|
14
90214-09019-00
Washer, Claw
|
90214-09019-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
5X8-2147A-00-00
Guard, Engine 1
|
5X8-2147A-00-00 |
— | ||
|
16
|
16
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
16
|
16
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
17
|
17
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
18
|
18
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
18
|
18
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
19
|
19
903-38121-31-00
Plug
|
903-38121-31-00 |
— | ||
