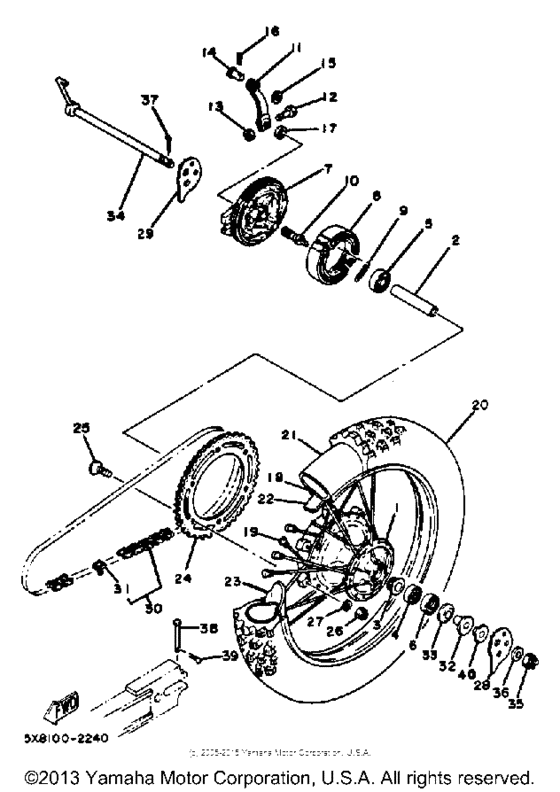

Rear wheel Diagram Yamaha IT
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3R3-25311-02-98
Hub, Rear
|
3R3-25311-02-98 |
— | ||
|
2
|
2
3R3-25317-00-00
Spacer, Bearing
|
3R3-25317-00-00 |
— | ||
|
3
|
3
146-25116-00-00 Flange, Spacer 2 |
146-25116-00-00 |
from US $4.53 |
||
|
4
|
4
933-06202-09-00
Bearing
|
933-06202-09-00 |
— | ||
| replacement | |||||
|
4
|
4
93306-20205-00 Bearing |
93306-20205-00 |
from US $8.22 |
||
|
5
|
5
933-06302-02-00 Bearing (1H7) |
933-06302-02-00 |
from US $20.54 |
||
| replacement | |||||
|
5
|
5
93306-30212-00 Bearing |
93306-30212-00 |
from US $15.88 |
||
|
6
|
6
931-06220-17-00
Oil Seal, Dd-Type
|
931-06220-17-00 |
— | ||
|
7
|
7
999-99020-25-00
Plate, Brake Shoe
|
999-99020-25-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99024-05-00
CARB. ASSY (7LW)
|
999-99024-05-00 |
— | ||
|
8
|
8
437-W2536-00-00
Brake Shoe Set-2Pcs
|
437-W2536-00-00 |
— | ||
| replacement | |||||
|
8
|
8
3KG-W253E-00-00 Brake Shoe Kit |
3KG-W253E-00-00 |
from US $30.49 |
||
|
9
|
9
90506-17328-00 Spring, Tension |
90506-17328-00 |
from US $8.36 |
||
|
10
|
10
401-25351-00-00 Camshaft |
401-25351-00-00 |
US $51.86 |
||
| replacement | |||||
|
10
|
10
26A-25351-00-00 Camshaft |
26A-25351-00-00 |
US $51.86 |
||
|
11
|
11
3R6-25355-01-00 Lever, Camshaft |
3R6-25355-01-00 |
US $36.97 |
||
|
12
|
12
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
13
|
13
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
14
|
14
3R6-27237-00-00
Pin, Clevis
|
3R6-27237-00-00 |
— | ||
|
15
|
15
90201-12631-00 Washer, Plate (583) |
90201-12631-00 |
from US $1.56 |
||
|
16
|
16
91401-25030-00 Pin. Cotter |
91401-25030-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
91490-25030-00 Pin. Cotter |
91490-25030-00 |
from US $1.34 |
||
|
17
|
17
148-25359-00-00 Seal, Camshaft |
148-25359-00-00 |
from US $2.69 |
||
|
18
|
18
944-18182-45-00
Rim 1.85X18
1.85X18 |
944-18182-45-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
1.85X18 |
999-99999-99-00 |
— | ||
|
19
|
19
4V2-25304-00-00
Spoke Set, Rear
|
4V2-25304-00-00 |
— | ||
|
20
|
20
941-12182-F7-00
120/90-18 Mk2-Tt (110/90-18 61M
110/90-18 61M INOUE |
941-12182-F7-00 |
— | ||
|
21
|
21
942-11182-09-00
Tube
|
942-11182-09-00 |
— | ||
|
22
|
22
94325-18043-00 Band, Rim (538)2.50-18 |
94325-18043-00 |
from US $4.39 |
||
| replacement | |||||
|
22
|
22
94340-18086-00 Band, Rim (2.50-18)2.50-18 |
94340-18086-00 |
from US $4.39 |
||
|
23
|
23
2X3-25394-00-00
Spacer, Bead
|
2X3-25394-00-00 |
— | ||
|
24
|
24
26A-25442-50-00 Sprocket, Driven (4242T ALT. PART YAMAHA BLACK |
26A-25442-50-00 |
from US $55.95 |
||
| replacement | |||||
|
24
|
24
26A-25442-51-00 SPROCKET, DRIVEN42T ALT. PART YAMAHA BLACK |
26A-25442-51-00 |
from US $58.09 |
||
|
24
|
24
26A-25444-50-00
Sprocket, Driven (44T)
44T STD YAMAHA BLK |
26A-25444-50-00 |
— | ||
| replacement | |||||
|
24
|
24
26A-25444-51-00 Sprocket, Driven (44T)44T STD YAMAHA BLK |
26A-25444-51-00 |
US $47.50 |
||
|
24
|
24
26A-25446-50-33 Sprocket, Driven46T 26A-254 ALTERNATE PART YAMAHA BLACK |
26A-25446-50-33 |
US $51.66 |
||
| replacement | |||||
|
24
|
24
26A-25446-51-00 Sprocket, Driven (46T)46T 26A-254 ALTERNATE PART YAMAHA BLACK |
26A-25446-51-00 |
US $47.32 |
||
|
25
|
25
901-10080-38-00
Bolt, Hex Skt Head
|
901-10080-38-00 |
— | ||
|
26
|
26
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
26
|
26
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
27
|
27
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
28
|
28
1W2-25388-01-00 Puller, Chain 1 |
1W2-25388-01-00 |
from US $10.48 |
||
|
29
|
29
1W2-25389-01-00 Puller, Chain 2 |
1W2-25389-01-00 |
from US $9.61 |
||
|
30
|
30
9Y5-85201-03-00
Chain 520Ds-104L
520DS-104L |
9Y5-85201-03-00 |
— | ||
|
31
|
31
94685-20001-00 Joint, Chain (Did 520Dm-Rj)520DM-RJ |
94685-20001-00 |
from US $3.28 |
||
| replacements | |||||
|
31
|
31
94681-68001-00 Joint, Chain (Did 520Dm-Rj)520DM-RJ |
94681-68001-00 |
from US $3.64 |
||
|
31
|
31
CHN-QR520-MS-TR
Chain 520
520DM-RJ |
CHN-QR520-MS-TR |
— | ||
|
32
|
32
903-87152-A3-00
Collar
|
903-87152-A3-00 |
— | ||
|
33
|
33
3R3-25367-00-00
Cover, Hub Dust
|
3R3-25367-00-00 |
— | ||
|
34
|
34
5X8-25381-00-00
Axle, Wheel
|
5X8-25381-00-00 |
— | ||
|
35
|
35
90171-14020-00 Nut, Castle |
90171-14020-00 |
from US $9.07 |
||
| replacement | |||||
|
35
|
35
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $6.96 |
||
|
36
|
36
90201-15238-00 Washer, Plate |
90201-15238-00 |
from US $4.11 |
||
|
37
|
37
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
37
|
37
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
38
|
38
917-02050-35-00
Pin, Clevis
|
917-02050-35-00 |
— | ||
|
39
|
39
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.55 |
||
|
40
|
40
903-81150-34-00
Bush, Solid
|
903-81150-34-00 |
— | ||
