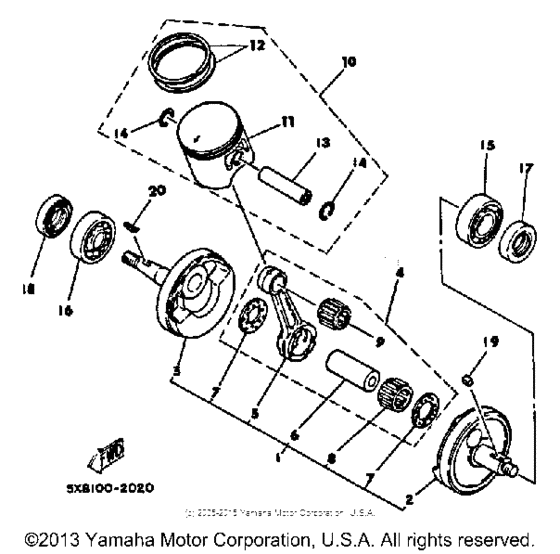

Crankshaft & Piston Diagram Yamaha IT
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3R6-11400-00-00
Crankshaft Assembly
|
3R6-11400-00-00 |
— | ||
|
2
|
2
3R3-11412-00-00
Crank 1
|
3R3-11412-00-00 |
— | ||
|
3
|
3
3R6-11422-00-00
Crank 2
|
3R6-11422-00-00 |
— | ||
|
4
|
4
3R2-11650-01-00
Connecting Rod Assembly (3M5-
3M5- |
3R2-11650-01-00 |
— | ||
|
5
|
5
3R2-11651-01-00
Rod, Connecting
|
3R2-11651-01-00 |
— | ||
|
6
|
6
3M5-11681-00-00 Pin, Crank 1 |
3M5-11681-00-00 |
from US $9.26 |
||
|
7
|
7
90209-22248-00 Washer, Special Shape |
90209-22248-00 |
from US $3.64 |
||
|
8
|
8
933-10422-H0-00 Bearing, Cylinder.#10 |
933-10422-H0-00 |
from US $55.54 |
||
|
9
|
9
93310-216E1-00 Bearing |
93310-216E1-00 |
from US $8.28 |
||
|
10
|
10
5X8-11630-00-00
Piston Kit Std
|
5X8-11630-00-00 |
— | ||
|
11
|
11
5X8-11631-00-95
Piston Std
|
5X8-11631-00-95 |
— | ||
|
12
|
12
3JM-11601-00-00 Piston Ring Set (Std) |
3JM-11601-00-00 |
from US $63.20 |
||
|
13
|
13
251-11633-00-00 Pin, Piston |
251-11633-00-00 |
from US $18.84 |
||
|
14
|
14
934-50171-29-00 Circlip |
934-50171-29-00 |
from US $1.35 |
||
|
15
|
15
93306-30421-00 Bearing |
93306-30421-00 |
from US $32.44 |
||
| replacement | |||||
|
15
|
15
933-06304-42-00 Bearing |
933-06304-42-00 |
from US $26.21 |
||
|
16
|
16
933-06205-29-00 Bearing |
933-06205-29-00 |
from US $16.20 |
||
|
17
|
17
93103-28126-00 Oil Seal93103-28100 |
93103-28126-00 |
from US $7.65 |
||
| replacement | |||||
|
17
|
17
93103-28011-00 Oil Seal, Sw-Type (93103-28100)93103-28100 |
93103-28011-00 |
from US $5.96 |
||
|
18
|
18
931-02252-58-00 Oil Seal, Sd-Type |
931-02252-58-00 |
from US $8.96 |
||
|
19
|
19
90282-05038-00
Key, Straight
|
90282-05038-00 |
— | ||
|
20
|
20
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.70 |
||
|
20
|
20
3JM-11601-10-00 Piston Ring Set (0.25Mm O/s)0.25MM O/S |
3JM-11601-10-00 |
from US $62.96 |
||
|
20
|
20
3JM-11601-20-00 Piston Ring Set (0.50Mm O/s)0.50MM O/S |
3JM-11601-20-00 |
from US $61.88 |
||
|
20
|
20
43G-11601-30-00 Piston Ringset 3RdPiston ring set (3rd 0/s) 3RD |
43G-11601-30-00 |
US $49.01 |
||
|
20
|
20
43G-11601-40-00
Piston Ringset 4Th
4TH |
43G-11601-40-00 |
— | ||
|
20
|
20
5X8-11630-10-00
Piston Kit 1St
1ST |
5X8-11630-10-00 |
— | ||
|
20
|
20
5X8-11630-20-00
Piston Kit 2Nd
2ND |
5X8-11630-20-00 |
— | ||
|
20
|
20
5X8-11630-30-00
Piston Kit 3Rd
3RD |
5X8-11630-30-00 |
— | ||
|
20
|
20
5X8-11630-40-00
Piston Kit 4Th
4TH |
5X8-11630-40-00 |
— | ||
|
20
|
20
5X8-11635-00-00
Piston 1 O/s 0.25
O/S 0.25 |
5X8-11635-00-00 |
— | ||
|
20
|
20
5X8-11636-00-00
Piston 2 O/s 0.50
O/S 0.50 |
5X8-11636-00-00 |
— | ||
|
20
|
20
5X8-11637-00-00
Piston 3 O/s 0.75
O/S 0.75 |
5X8-11637-00-00 |
— | ||
|
20
|
20
5X8-11638-00-00
Piston 4 O/s 1.00
O/S 1.00 |
5X8-11638-00-00 |
— | ||
