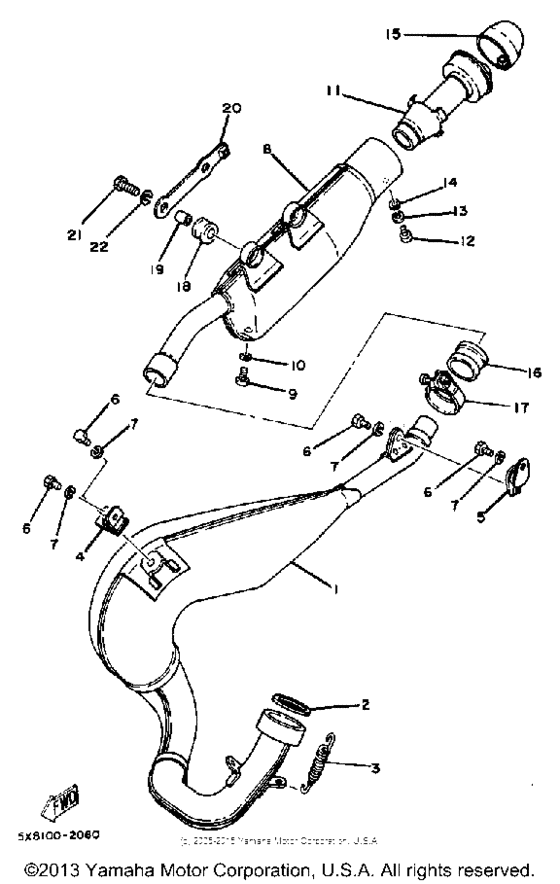

Exhaust Diagram Yamaha IT
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5X8-14610-00-00
Exhaust Pipe Assembly L
|
5X8-14610-00-00 |
— | ||
|
2
|
2
3R6-14613-01-00 Gasket, Exst Pipe |
3R6-14613-01-00 |
from US $9.35 |
||
|
3
|
3
90507-20030-00 Spring, Tension |
90507-20030-00 |
from US $4.53 |
||
|
4
|
4
1M1-14772-00-00
Stay, Muffler 2
|
1M1-14772-00-00 |
— | ||
|
5
|
5
565-14771-00-00 Stay, Muffler 1 |
565-14771-00-00 |
from US $33.58 |
||
| replacement | |||||
|
5
|
5
565-14771-01-00 Stay, Muffler 1 |
565-14771-01-00 |
from US $20.34 |
||
|
6
|
6
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
6
|
6
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
8
|
8
5X8-14753-01-00
Silencer, Exhaust
|
5X8-14753-01-00 |
— | ||
|
9
|
9
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
| replacement | |||||
|
9
|
9
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
10
|
10
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
11
|
11
5X8-14752-01-00
Pipe, Outlet
|
5X8-14752-01-00 |
— | ||
|
12
|
12
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
12
|
12
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
14
|
14
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
14
|
14
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
14
|
14
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
15
|
15
1W2-14787-00-00
Cap, Silencer
|
1W2-14787-00-00 |
— | ||
|
16
|
16
5X8-14714-00-00
Gasket, Muffler
|
5X8-14714-00-00 |
— | ||
|
17
|
17
90460-39202-00
Clamp, Hose
|
90460-39202-00 |
— | ||
|
18
|
18
90480-22269-00
Grommet
|
90480-22269-00 |
— | ||
|
19
|
19
90387-081A3-00
Collar
|
90387-081A3-00 |
— | ||
|
20
|
20
5X8-14771-00-00
Stay, Muffler 1
|
5X8-14771-00-00 |
— | ||
|
21
|
21
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
21
|
21
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
21
|
21
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
21
|
21
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
22
|
22
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
