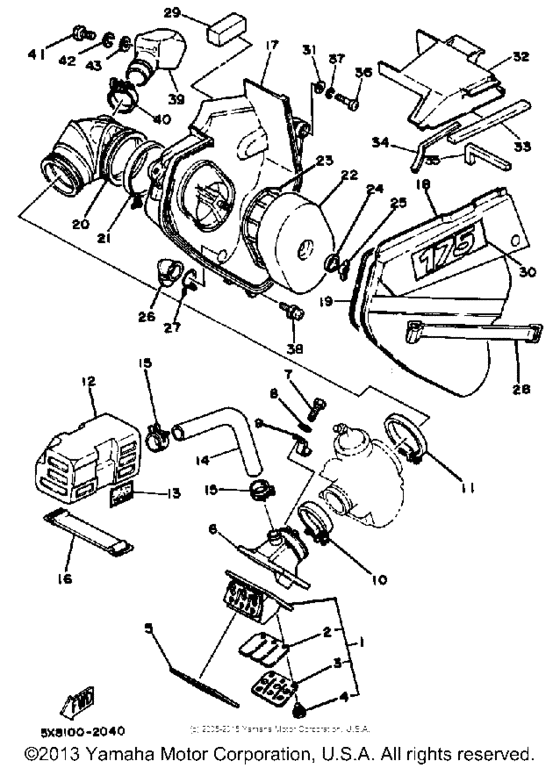

Intake Diagram Yamaha IT
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43G-13610-00-00
Reed Valve Assembly
|
43G-13610-00-00 |
— | ||
|
2
|
2
3R3-13613-00-00 Reed, Valve |
3R3-13613-00-00 |
US $46.17 |
||
|
3
|
3
43G-13616-00-00 Stopper, Reed Valve |
43G-13616-00-00 |
US $15.46 |
||
| replacement | |||||
|
3
|
3
55Y-13616-00-00 Stopper, Reed Valve |
55Y-13616-00-00 |
US $15.46 |
||
|
4
|
4
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
5
|
5
3R3-13621-00-00 Gasket,valve Seat |
3R3-13621-00-00 |
from US $12.18 |
||
| replacement | |||||
|
5
|
5
3R3-13621-01-00 AIR CLNR CASE ASY |
3R3-13621-01-00 |
from US $12.18 |
||
|
6
|
6
5X8-13565-00-00
Joint, Carburetor
|
5X8-13565-00-00 |
— | ||
|
7
|
7
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
7
|
7
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
8
|
8
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
8
|
8
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
8
|
8
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
8
|
8
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
9
|
9
90462-05005-00 Clamp |
90462-05005-00 |
from US $2.13 |
||
|
10
|
10
90460-49058-00 Clamp, Hose |
90460-49058-00 |
from US $2.98 |
||
|
11
|
11
90460-64065-00 Hose Clamp Assy |
90460-64065-00 |
from US $6.80 |
||
| replacement | |||||
|
11
|
11
904-50640-04-00 Hose Clamp Assy |
904-50640-04-00 |
from US $4.64 |
||
|
12
|
12
5X8-13581-00-00
Chamber, Air
|
5X8-13581-00-00 |
— | ||
|
13
|
13
4V3-1441K-00-00
Emblem
|
4V3-1441K-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
904-45215-62-00
Hose
|
904-45215-62-00 |
— | ||
|
15
|
15
90467-20050-00 Clip |
90467-20050-00 |
from US $1.28 |
||
|
16
|
16
1E6-82131-00-00 Band, Battery |
1E6-82131-00-00 |
from US $14.51 |
||
|
17
|
17
5X3-14411-00-00
Case, Air Cleaner 1
|
5X3-14411-00-00 |
— | ||
|
18
|
18
5X8-14412-00-00
Cap, Cleaner Case 1
|
5X8-14412-00-00 |
— | ||
|
19
|
19
50M-14462-01-00 Seal |
50M-14462-01-00 |
from US $11.12 |
||
|
20
|
20
5X8-14453-10-00
Joint, Air Clnr 1
|
5X8-14453-10-00 |
— | ||
|
21
|
21
90460-75020-00 Hose Clamp Assy |
90460-75020-00 |
from US $9.78 |
||
| replacement | |||||
|
21
|
21
904-50750-02-00 Hose Clamp Assy |
904-50750-02-00 |
from US $9.78 |
||
|
22
|
22
5X4-W1442-00-00
Element, Air Clnr
|
5X4-W1442-00-00 |
— | ||
|
23
|
23
5X4-14458-00-00
Guide, Element
|
5X4-14458-00-00 |
— | ||
|
24
|
24
2X4-14468-00-00
Plate, Element Ftng
|
2X4-14468-00-00 |
— | ||
|
25
|
25
90175-06008-00 Nut, Wing |
90175-06008-00 |
from US $2.55 |
||
| replacement | |||||
|
25
|
25
90175-06015-00 Nut, Wing |
90175-06015-00 |
US $7.79 |
||
|
26
|
26
1W1-14457-01-00
Seal
|
1W1-14457-01-00 |
— | ||
|
27
|
27
90467-20030-00 Clip |
90467-20030-00 |
US $3.83 |
||
| replacement | |||||
|
27
|
27
90467-20M15-00 Clip |
90467-20M15-00 |
from US $3.83 |
||
|
28
|
28
5X3-14455-00-00
Band
|
5X3-14455-00-00 |
— | ||
|
29
|
29
5X4-14462-00-00
Damper, Headlight (2Xj-84345-00
2XJ-84345-00 |
5X4-14462-00-00 |
— | ||
|
30
|
30
5X8-21737-00-00
Emblem
|
5X8-21737-00-00 |
— | ||
|
31
|
31
90201-06M08-00 Washer, Plate |
90201-06M08-00 |
from US $1.56 |
||
|
32
|
32
5X8-14437-00-00
Duct
|
5X8-14437-00-00 |
— | ||
|
33
|
33
5X8-14452-00-00
Seal
|
5X8-14452-00-00 |
— | ||
|
34
|
34
5X8-14457-00-00
Seal
|
5X8-14457-00-00 |
— | ||
|
35
|
35
5X8-14462-00-00
Seal
|
5X8-14462-00-00 |
— | ||
|
36
|
36
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
36
|
36
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
37
|
37
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
38
|
38
901-59060-60-00
Screw, With Washer
|
901-59060-60-00 |
— | ||
| replacement | |||||
|
38
|
38
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.42 |
||
|
39
|
39
5X8-13591-00-00
Chamber, Air 2
|
5X8-13591-00-00 |
— | ||
|
40
|
40
90460-36174-00
Clamp, Hose
|
90460-36174-00 |
— | ||
|
41
|
41
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
41
|
41
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
42
|
42
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
43
|
43
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
43
|
43
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
43
|
43
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
43
|
43
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
