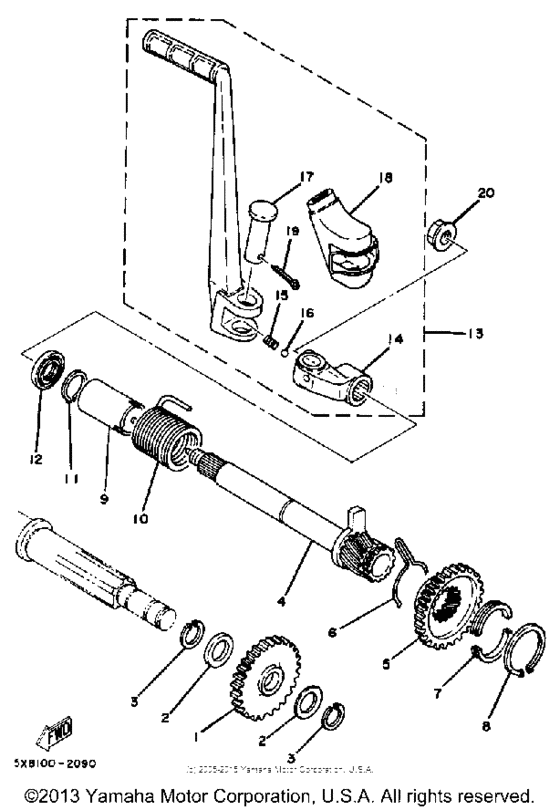

Kick stater Diagram Yamaha IT
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3R3-15651-01-00
Gear, Kick Idle
|
3R3-15651-01-00 |
— | ||
|
2
|
2
137-17417-00-05 Shim 1 (0.5T)0.5T |
137-17417-00-05 |
from US $3.12 |
||
|
3
|
3
934-40150-12-00
Circlip
|
934-40150-12-00 |
— | ||
| replacement | |||||
|
3
|
3
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.07 |
||
|
4
|
4
3R3-15660-00-00
Kick Axle Assembly
|
3R3-15660-00-00 |
— | ||
|
5
|
5
3R3-15641-00-00
Gear, Kick
|
3R3-15641-00-00 |
— | ||
|
6
|
6
90468-26048-00 Clip |
90468-26048-00 |
from US $1.84 |
||
|
7
|
7
248-15654-00-00 Holder, Kick Gear |
248-15654-00-00 |
from US $9.21 |
||
|
8
|
8
99009-30400-00 Circlip |
99009-30400-00 |
from US $1.56 |
||
|
9
|
9
3R3-15666-00-00
Spacer
|
3R3-15666-00-00 |
— | ||
|
10
|
10
90508-26427-00
Spring, Torsion
|
90508-26427-00 |
— | ||
|
11
|
11
93410-17037-00 Circlip |
93410-17037-00 |
from US $1.70 |
||
|
12
|
12
93101-17062-00 Oil Seal |
93101-17062-00 |
from US $8.22 |
||
|
13
|
13
43G-15620-00-00
Kick Crank Assembly
|
43G-15620-00-00 |
— | ||
|
14
|
14
5X3-15621-00-00
Boss, Kick Crank
|
5X3-15621-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
90501-12081-00 Spring, Compression |
90501-12081-00 |
from US $1.56 |
||
|
16
|
16
93507-32031-00 Ball 7-32 |
93507-32031-00 |
from US $1.66 |
||
|
17
|
17
91702-12040-00
Pin, Clevis
|
91702-12040-00 |
— | ||
|
18
|
18
3R3-15618-01-00
Cover, Kick Lever
|
3R3-15618-01-00 |
— | ||
|
19
|
19
91401-40020-00
Pin, Cotter
|
91401-40020-00 |
— | ||
|
20
|
20
957-01105-00-00
Nut, With Washer
|
957-01105-00-00 |
— | ||
| replacements | |||||
|
20
|
20
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.07 |
||
|
20
|
20
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
