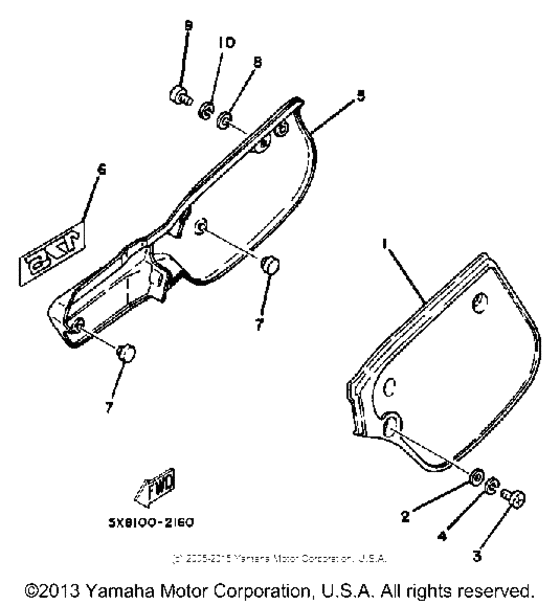

Side cover Diagram Yamaha IT
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5X8-21711-00-26
Cover, Side 1
COMP. YELLOW/ SKY BLUE |
5X8-21711-00-26 |
— | ||
|
2
|
2
90201-06571-00 Washer, Plate |
90201-06571-00 |
from US $1.70 |
||
|
3
|
3
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
3
|
3
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
4
|
4
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
5
|
5
5X8-21721-00-26
Cover, Side 2
COMP. YELLOW/ SKY BLUE |
5X8-21721-00-26 |
— | ||
|
6
|
6
5X8-21737-00-00
Emblem
|
5X8-21737-00-00 |
— | ||
|
7
|
7
22W-24181-00-00 Damper, Locating 1 |
22W-24181-00-00 |
from US $3.26 |
||
|
8
|
8
90201-06571-00 Washer, Plate |
90201-06571-00 |
from US $1.70 |
||
|
9
|
9
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
9
|
9
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
