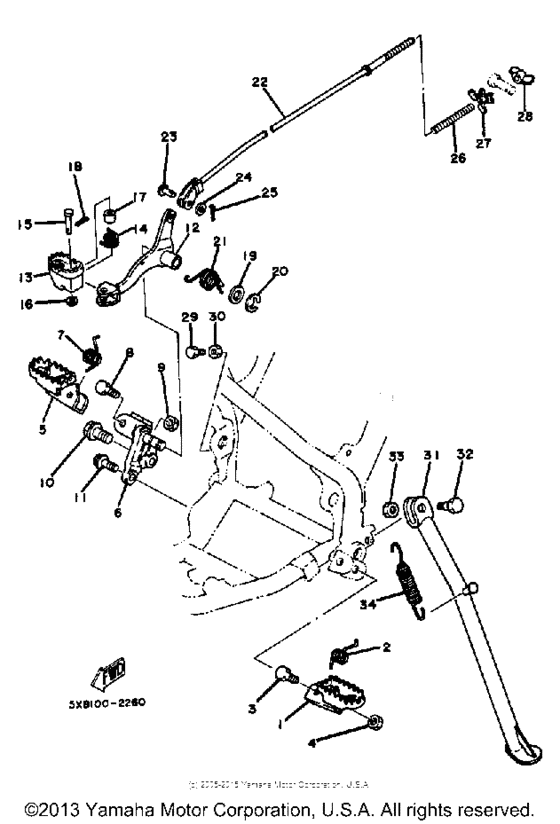

Stand - footrest Diagram Yamaha IT
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5X3-27411-00-00 Footrest 1 |
5X3-27411-00-00 |
from US $39.65 |
||
| replacement | |||||
|
1
|
1
22W-27411-01-90 Footrest 1 |
22W-27411-01-90 |
from US $13.90 |
||
|
2
|
2
90508-20023-00 Spring, Torsion |
90508-20023-00 |
from US $1.70 |
||
|
3
|
3
90101-08428-00 Bolt |
90101-08428-00 |
from US $4.48 |
||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
95611-08100-00 Nut (2H1) |
95611-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
4
|
4
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
5
|
5
4V4-27421-00-00 Footrest 2 (3R1-27421-00)3R1-27421-00 |
4V4-27421-00-00 |
from US $41.86 |
||
| replacement | |||||
|
5
|
5
22W-27421-01-90 Footrest 2 (3R1-27421-00)3R1-27421-00 |
22W-27421-01-90 |
from US $36.11 |
||
|
6
|
6
5X3-27422-00-00
Bracket, Footrest 2
|
5X3-27422-00-00 |
— | ||
|
7
|
7
90508-20023-00 Spring, Torsion |
90508-20023-00 |
from US $1.70 |
||
|
8
|
8
90101-08428-00 Bolt |
90101-08428-00 |
from US $4.48 |
||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
95611-08100-00 Nut (2H1) |
95611-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
9
|
9
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
10
|
10
901-05120-96-00
Bolt, Washer Based
|
901-05120-96-00 |
— | ||
|
11
|
11
95811-10020-00 Bolt, Flange (95822-10020-00) |
95811-10020-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
958-17100-20-00 Bolt, Flange |
958-17100-20-00 |
from US $1.07 |
||
|
12
|
12
5Y0-27211-00-90
Pedal, Brake
|
5Y0-27211-00-90 |
— | ||
|
13
|
13
5X8-27242-00-00
Pedal, Brake
|
5X8-27242-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
90508-20451-00
Spring, Torsion
|
90508-20451-00 |
— | ||
|
15
|
15
91701-08032-00 Pin |
91701-08032-00 |
from US $3.68 |
||
|
16
|
16
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
17
|
17
90387-08762-00 Collar |
90387-08762-00 |
from US $1.70 |
||
| replacement | |||||
|
17
|
17
90387-08785-00 Collar (7G5) |
90387-08785-00 |
from US $1.70 |
||
|
18
|
18
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
18
|
18
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
19
|
19
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.34 |
||
|
20
|
20
93430-09038-00 Circlip |
93430-09038-00 |
from US $2.83 |
||
|
21
|
21
905-08325-44-00
Spring, Torsion
|
905-08325-44-00 |
— | ||
|
22
|
22
5X8-27231-00-00
Rod, Brake
|
5X8-27231-00-00 |
— | ||
|
23
|
23
90240-06103-00 Pin, Clevis (24X) |
90240-06103-00 |
from US $4.11 |
||
|
24
|
24
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
25
|
25
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
25
|
25
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
26
|
26
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.70 |
||
|
27
|
27
1W2-27239-00-00
Seat, Spring
|
1W2-27239-00-00 |
— | ||
|
28
|
28
90179-06411-00 Nut |
90179-06411-00 |
from US $1.34 |
||
|
29
|
29
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
29
|
29
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
30
|
30
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
30
|
30
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
31
|
31
5X8-27311-00-33
Stand, Side
|
5X8-27311-00-33 |
— | ||
|
32
|
32
90109-08032-00 Bolt |
90109-08032-00 |
from US $5.10 |
||
|
33
|
33
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
33
|
33
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
34
|
34
90507-29009-00 Spring (460) |
90507-29009-00 |
from US $11.05 |
||
