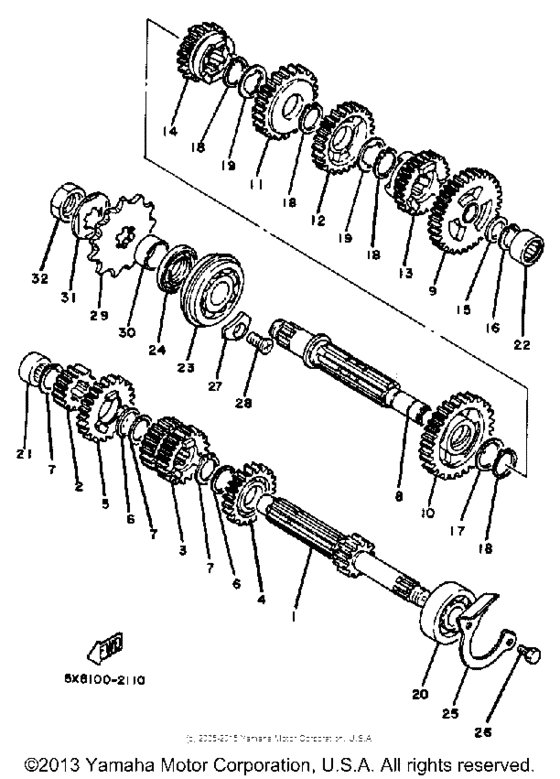

Transmission Diagram Yamaha IT
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5X8-17411-00-00
Axle, Main
|
5X8-17411-00-00 |
— | ||
|
2
|
2
5X4-17121-02-00
Gear, 2Nd Pinion
2ND PINION |
5X4-17121-02-00 |
— | ||
|
3
|
3
3R3-17131-01-00
Gear, 3Rd Pinion (16T, 20T)
3RD PINION 16T, 20T |
3R3-17131-01-00 |
— | ||
|
4
|
4
3R3-17151-02-00
Gear, 5Th Pinion (19T)
5TH PINION 19T |
3R3-17151-02-00 |
— | ||
|
5
|
5
5X8-17161-00-00
Gear, 6Th Pinion
6TH PINION |
5X8-17161-00-00 |
— | ||
|
6
|
6
90201-20266-00 Washer, Plate |
90201-20266-00 |
from US $1.56 |
||
|
7
|
7
93410-20038-00 Circlip |
93410-20038-00 |
from US $1.34 |
||
|
8
|
8
3R3-17421-00-00
Axle, Drive
|
3R3-17421-00-00 |
— | ||
|
9
|
9
5X8-17211-00-00
Gear, 1St Wheel
1ST WHEEL |
5X8-17211-00-00 |
— | ||
|
10
|
10
3R3-17221-01-00
Gear, 2Nd Wheel (26T)
2ND WHEEL 26T |
3R3-17221-01-00 |
— | ||
|
11
|
11
3R3-17231-01-00
Gear, 3Rd Wheel (24T)
3RD WHEEL 24T |
3R3-17231-01-00 |
— | ||
|
12
|
12
3R3-17241-01-00
Gear, 4Th Wheel (25T)
4TH WHEEL 25T |
3R3-17241-01-00 |
— | ||
|
13
|
13
3R3-17251-02-00 Gear, 5Th Wheel (21T)5TH WHEEL 21T |
3R3-17251-02-00 |
US $97.70 |
||
|
14
|
14
5X8-17261-00-00
Gear, 6Th Wheel
6TH WHEEL |
5X8-17261-00-00 |
— | ||
|
15
|
15
90201-15701-00 Washer, Plate (T=1.0) |
90201-15701-00 |
from US $1.84 |
||
|
16
|
16
934-40150-12-00
Circlip
|
934-40150-12-00 |
— | ||
| replacement | |||||
|
16
|
16
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.07 |
||
|
17
|
17
90201-22555-00 Washer, Plate |
90201-22555-00 |
from US $1.70 |
||
|
18
|
18
93410-22039-00 Circlip |
93410-22039-00 |
from US $1.70 |
||
|
19
|
19
90209-18135-00 Washer |
90209-18135-00 |
from US $1.84 |
||
|
20
|
20
933-06303-09-00
Bearing
|
933-06303-09-00 |
— | ||
| replacement | |||||
|
20
|
20
93306-30317-00 Bearing |
93306-30317-00 |
from US $28.19 |
||
|
21
|
21
93311-41530-00 Bearing |
93311-41530-00 |
from US $20.97 |
||
|
22
|
22
93311-31567-00 Bearing |
93311-31567-00 |
from US $22.82 |
||
|
23
|
23
93306-30411-00 Bearing (B6304) |
93306-30411-00 |
from US $16.15 |
||
|
24
|
24
931-02260-42-00 Oil Seal |
931-02260-42-00 |
from US $6.09 |
||
|
25
|
25
3R3-17471-00-00
Plate, Cover
|
3R3-17471-00-00 |
— | ||
|
26
|
26
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
26
|
26
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
27
|
27
2K7-15383-00-00 Plate, Bearing Cover |
2K7-15383-00-00 |
from US $7.88 |
||
| replacement | |||||
|
27
|
27
4XM-15383-00-00 Plate, Bearing Cover |
4XM-15383-00-00 |
from US $9.07 |
||
|
28
|
28
986-03060-12-00
Screw, Oval Head (92701-06012)
92701-06012 |
986-03060-12-00 |
— | ||
|
29
|
29
938-32110-07-00 Sprocket, Drive 11T11T ALTERNATE PART |
938-32110-07-00 |
from US $17.24 |
||
|
29
|
29
938-32120-14-00 Sprocket, Drive 12T12T STD |
938-32120-14-00 |
US $20.29 |
||
|
29
|
29
938-32130-27-00
Sprocket, Drive 13T
13T ALTERNATE PART |
938-32130-27-00 |
— | ||
|
30
|
30
902-87202-A0-00
New Genuine Part
IN PRICE BOOK |
902-87202-A0-00 |
— | ||
|
31
|
31
90215-16127-00 Washer, Lock (1L8) |
90215-16127-00 |
from US $3.68 |
||
|
32
|
32
90179-16226-00 Nut (1L8) |
90179-16226-00 |
from US $2.66 |
||
