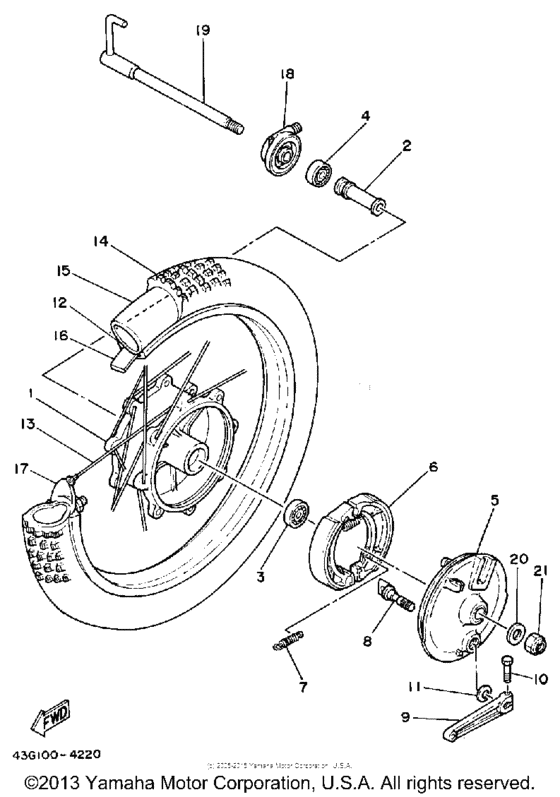

Front wheel Diagram Yamaha IT
- Year
- 1984
- Sales region
- USA
- Engine Capacity
- 200
- Model
- IT200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38V-25111-00-98
Hub, Front
|
38V-25111-00-98 |
— | ||
|
2
|
2
90560-15227-00
Spacer
|
90560-15227-00 |
— | ||
| replacement | |||||
|
2
|
2
90560-15116-00
Spacer 322251170000
|
90560-15116-00 |
— | ||
|
3
|
3
93306-20226-00 Bearing |
93306-20226-00 |
from US $14.88 |
||
|
4
|
4
933-06202-09-00
Bearing
|
933-06202-09-00 |
— | ||
| replacement | |||||
|
4
|
4
93306-20205-00 Bearing |
93306-20205-00 |
from US $8.22 |
||
|
5
|
5
1W1-25016-11-98
Brake Shoe Plt Assembly (1W1-25
1W1-25 LOW GLOSS BLK |
1W1-25016-11-98 |
— | ||
|
6
|
6
39W-W2536-00-00 Brake Shoe Kit |
39W-W2536-00-00 |
from US $41.06 |
||
| replacement | |||||
|
6
|
6
39W-W253E-10-00 Brake Shoe Kit |
39W-W253E-10-00 |
from US $41.26 |
||
|
7
|
7
90506-17328-00 Spring, Tension |
90506-17328-00 |
from US $8.36 |
||
|
8
|
8
49T-25151-00-00
Camshaft (39W-25151-00)
39W-25151-00 |
49T-25151-00-00 |
— | ||
|
9
|
9
322-25155-00-00
Lever, Camshaft 1
|
322-25155-00-00 |
— | ||
|
10
|
10
90101-06291-00 Bolt |
90101-06291-00 |
from US $1.70 |
||
| replacement | |||||
|
10
|
10
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
11
|
11
93104-11056-00 Oil Seal |
93104-11056-00 |
from US $4.68 |
||
| replacement | |||||
|
11
|
11
93104-12003-00 Oil Seal |
93104-12003-00 |
from US $4.68 |
||
|
12
|
12
944-16213-89-00
Rim 1.60X21
1.60X21 |
944-16213-89-00 |
— | ||
|
13
|
13
43G-25104-00-00
Spoke Set, Front
|
43G-25104-00-00 |
— | ||
|
14
|
14
941-09212-F8-00
90/90-21 M2Ea-Tt
M2EA-TT INOUE |
941-09212-F8-00 |
— | ||
|
15
|
15
94230-21126-00
Tube
|
94230-21126-00 |
— | ||
| replacement | |||||
|
15
|
15
942-27212-93-00
Tube (2.75-21)(2Yy)
|
942-27212-93-00 |
— | ||
|
16
|
16
94330-21088-00 Band, Rim |
94330-21088-00 |
US $4.39 |
||
| replacement | |||||
|
16
|
16
94330-21084-00 Band, Rim (1.60-21) |
94330-21084-00 |
from US $4.39 |
||
|
17
|
17
4V5-25194-00-00
Spacer, Bead
|
4V5-25194-00-00 |
— | ||
|
18
|
18
26A-25190-00-00
Gear Unit Assembly
|
26A-25190-00-00 |
— | ||
|
19
|
19
43G-25181-00-00
Axle, Wheel
|
43G-25181-00-00 |
— | ||
|
20
|
20
90201-15785-00 Washer, Plate |
90201-15785-00 |
from US $2.27 |
||
|
21
|
21
90185-14070-00 Nut, Self-Locking (1J7) |
90185-14070-00 |
from US $9.49 |
||
