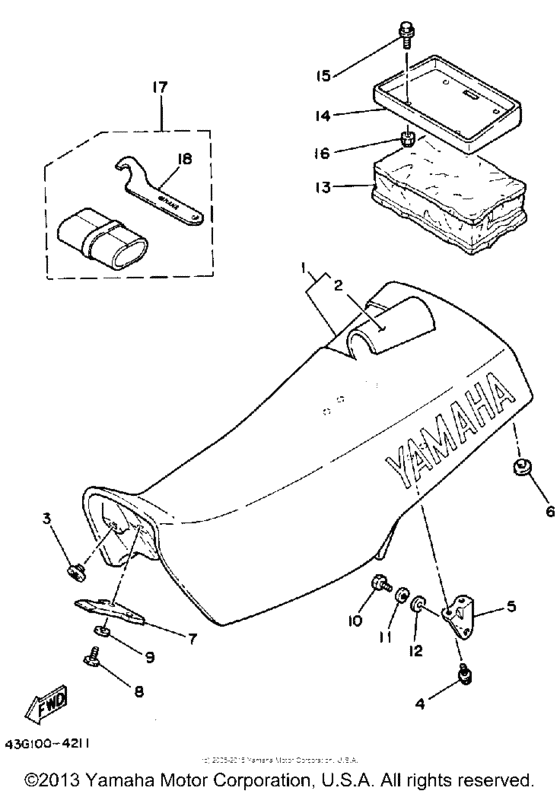

Seat Diagram Yamaha IT
- Year
- 1984
- Sales region
- USA
- Engine Capacity
- 200
- Model
- IT200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43G-W2473-00-00
Semi-Dbl-Seat Assemblyseat Asse
|
43G-W2473-00-00 |
— | ||
|
2
|
2
43G-24731-00-00
Cover, Double Seat
|
43G-24731-00-00 |
— | ||
|
3
|
3
509-24724-00-00 Damper, Seat |
509-24724-00-00 |
from US $5.10 |
||
|
4
|
4
958-11060-12-00
Bolt, Flange (4H7)
|
958-11060-12-00 |
— | ||
| replacements | |||||
|
4
|
4
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
4
|
4
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
5
|
5
39W-24738-00-00
Bracket, Seat
|
39W-24738-00-00 |
— | ||
|
6
|
6
509-24724-00-00 Damper, Seat |
509-24724-00-00 |
from US $5.10 |
||
|
7
|
7
5X6-24748-10-00
Bracket, Seat
|
5X6-24748-10-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
8
|
8
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
10
|
10
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
10
|
10
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
11
|
11
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
12
|
12
90201-087F0-00 Washer, Plate |
90201-087F0-00 |
from US $1.70 |
||
|
13
|
13
4V5-24850-00-00
Carrier Box Assembly
|
4V5-24850-00-00 |
— | ||
|
14
|
14
4V5-24833-00-00
Bracket, Carrier 2
|
4V5-24833-00-00 |
— | ||
|
15
|
15
95811-06016-00 Bolt, Flange |
95811-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
15
|
15
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
16
|
16
956-01062-00-00
Nut, U-Flange
|
956-01062-00-00 |
— | ||
| replacement | |||||
|
16
|
16
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
|
17
|
17
26A-28100-00-00 Tool Kit (48Y-28100-00-00)48Y-28100-00-00 |
26A-28100-00-00 |
US $148.07 |
||
| replacement | |||||
|
17
|
17
1LN-W2810-01-00
Tool Kit (48Y-28100-00-00)
48Y-28100-00-00 |
1LN-W2810-01-00 |
— | ||
|
18
|
18
1HX-28135-00-00
Spanner, Special
|
1HX-28135-00-00 |
— | ||
