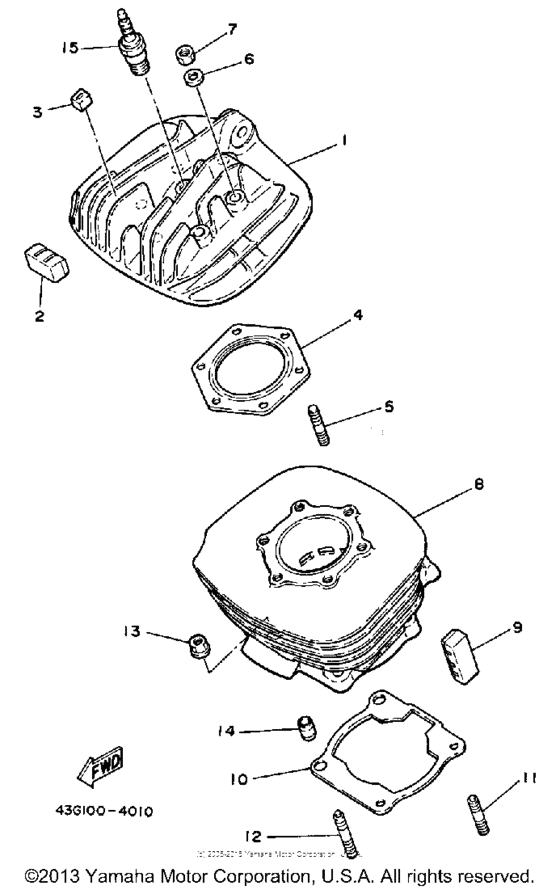

Cylinder Diagram Yamaha IT
- Year
- 1985
- Sales region
- USA
- Engine Capacity
- 200
- Model
- IT200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43G-11111-00-00
Head, Cylinder 1
|
43G-11111-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
3R9-11162-00-00
Absorber 2
|
3R9-11162-00-00 |
— | ||
|
3
|
3
521-11161-01-00 Absorber 1 |
521-11161-01-00 |
from US $7.37 |
||
|
4
|
4
43G-11181-01-00 Gasket, Cylinder Head 1Head 11HEAD 1 |
43G-11181-01-00 |
from US $24.65 |
||
|
5
|
5
90116-08394-00 Bolt, Stud |
90116-08394-00 |
from US $1.70 |
||
|
6
|
6
90201-08649-00 Washer, Plate |
90201-08649-00 |
from US $1.28 |
||
|
7
|
7
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
8
|
8
43G-11311-00-00
Cylinder 1
|
43G-11311-00-00 |
— | ||
|
9
|
9
3R6-11162-00-00 Absorber 2 |
3R6-11162-00-00 |
from US $12.89 |
||
|
10
|
10
43G-11351-01-00 Gskt, Cylndr |
43G-11351-01-00 |
from US $16.43 |
||
| replacement | |||||
|
10
|
10
43G-11351-10-00 Gasket, Cylinder |
43G-11351-10-00 |
from US $16.43 |
||
|
11
|
11
90116-08318-00 Bolt, Stud |
90116-08318-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
90116-08394-00 Bolt, Stud |
90116-08394-00 |
from US $1.70 |
||
|
12
|
12
90116-08409-00 Bolt, Stud |
90116-08409-00 |
from US $5.38 |
||
|
13
|
13
90179-08246-00 Nut |
90179-08246-00 |
from US $1.28 |
||
| replacement | |||||
|
13
|
13
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
14
|
14
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
| replacement | |||||
|
14
|
14
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
15
|
15
NGK-B8EG0-00-00
Plug, Spark (Ngk B8Eg) (94702-0
B8EG 94702-0 U.R. LM |
NGK-B8EG0-00-00 |
— | ||
| replacement | |||||
|
15
|
15
B8E-G0000-00-00 elementB8EG 94702-0 U.R. LM |
B8E-G0000-00-00 |
US $27.56 |
||
