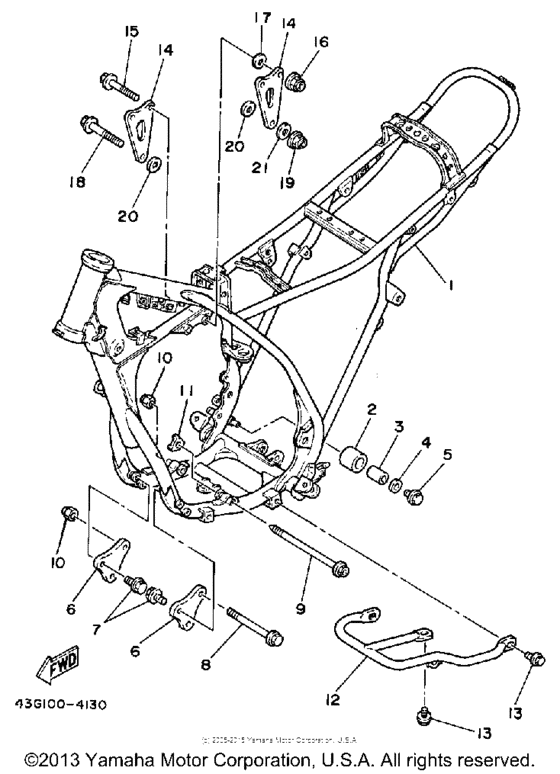

Frame Diagram Yamaha IT
- Year
- 1985
- Sales region
- USA
- Engine Capacity
- 200
- Model
- IT200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43G-21110-00-33
Frame
|
43G-21110-00-33 |
— | ||
|
2
|
2
30X-22178-00-00 Tensioner |
30X-22178-00-00 |
from US $9.60 |
||
|
3
|
3
4V4-22184-00-00 Bush |
4V4-22184-00-00 |
from US $3.26 |
||
|
4
|
4
90201-08753-00 Washer, Plate |
90201-08753-00 |
from US $1.98 |
||
| replacement | |||||
|
4
|
4
90201-081R9-00 Washer, Plate |
90201-081R9-00 |
from US $1.98 |
||
|
5
|
5
95811-08012-00 Bolt, Flange (95801-08012-00) |
95811-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
5
|
5
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
6
|
6
24X-21419-01-00
Bracket, Engine 2
|
24X-21419-01-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
95811-08016-00 Bolt, Flange |
95811-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
7
|
7
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
7
|
7
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
8
|
8
95811-08095-00 Bolt, Flange |
95811-08095-00 |
from US $3.40 |
||
| replacement | |||||
|
8
|
8
95817-08095-00 Bolt, Flange(8Bt) |
95817-08095-00 |
from US $3.40 |
||
|
9
|
9
90105-08326-00
Bolt, Washer Based
|
90105-08326-00 |
— | ||
|
10
|
10
95601-08200-00 Nut, U |
95601-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
10
|
10
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
11
|
11
90214-09019-00
Washer, Claw
|
90214-09019-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
43G-2147A-00-00
Guard, Engine 1
|
43G-2147A-00-00 |
— | ||
|
13
|
13
95811-08012-00 Bolt, Flange (95801-08012-00) |
95811-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
14
|
14
43G-21425-00-00
Bracket, Rear Upr 1Upper 1
1UPPER 1 |
43G-21425-00-00 |
— | ||
|
15
|
15
958-11080-45-00
Bolt, Flange
|
958-11080-45-00 |
— | ||
| replacements | |||||
|
15
|
15
95814-08045-00 Bolt, Flange |
95814-08045-00 |
from US $2.83 |
||
|
15
|
15
95817-08045-00 Bolt, Flange(Jn5) |
95817-08045-00 |
from US $1.07 |
||
|
16
|
16
95601-08200-00 Nut, U |
95601-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
16
|
16
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
17
|
17
90202-08022-00 Washer, Plate |
90202-08022-00 |
from US $3.26 |
||
|
18
|
18
95811-10050-00 Bolt, Flange (5X5) |
95811-10050-00 |
from US $2.55 |
||
| replacement | |||||
|
18
|
18
95817-10050-00 Bolt, Flange |
95817-10050-00 |
from US $2.55 |
||
|
19
|
19
95601-10200-00 Nut, Self-Locking |
95601-10200-00 |
from US $6.43 |
||
| replacement | |||||
|
19
|
19
90185-10170-00 Nut, Self-Locking |
90185-10170-00 |
from US $6.94 |
||
|
20
|
20
90201-100A1-00 Washer, Plate (3J6) |
90201-100A1-00 |
from US $2.32 |
||
|
21
|
21
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.07 |
||
