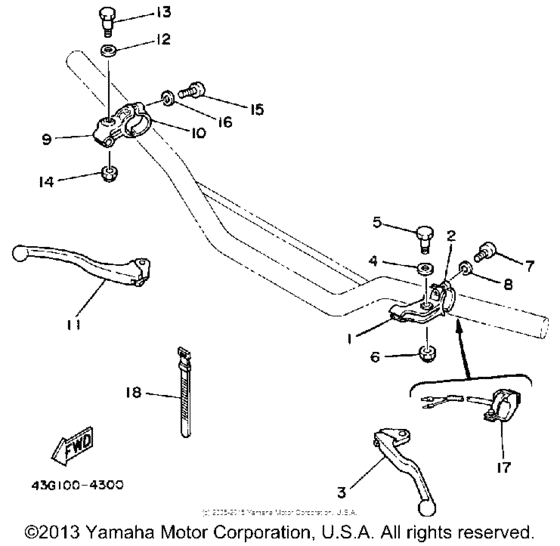

Handle switch-lever Diagram Yamaha IT
- Year
- 1985
- Sales region
- USA
- Engine Capacity
- 200
- Model
- IT200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38V-82911-00-00 Holder, Lever 1 |
38V-82911-00-00 |
from US $42.41 |
||
|
2
|
2
38V-82913-00-00 Holder, Lever Lower 1 |
38V-82913-00-00 |
from US $3.98 |
||
|
3
|
3
23X-83912-00-00
Lever 1
|
23X-83912-00-00 |
— | ||
| replacement | |||||
|
3
|
3
23X-83912-02-00 Lever 1 |
23X-83912-02-00 |
from US $21.96 |
||
|
4
|
4
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
5
|
5
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
5
|
5
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
6
|
6
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
6
|
6
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
7
|
7
985-06050-18-00
Screw, Pan Head
|
985-06050-18-00 |
— | ||
| replacement | |||||
|
7
|
7
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.34 |
||
|
8
|
8
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
9
|
9
38V-82921-00-00 Holder, Lever 2 |
38V-82921-00-00 |
from US $24.23 |
||
|
10
|
10
38V-82913-00-00 Holder, Lever Lower 1 |
38V-82913-00-00 |
from US $3.98 |
||
|
11
|
11
23X-83922-00-00
Lever 2
|
23X-83922-00-00 |
— | ||
| replacement | |||||
|
11
|
11
23X-83922-01-00 Lever 2 |
23X-83922-01-00 |
from US $9.92 |
||
|
12
|
12
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
13
|
13
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
13
|
13
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
14
|
14
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
14
|
14
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
15
|
15
985-06050-18-00
Screw, Pan Head
|
985-06050-18-00 |
— | ||
| replacement | |||||
|
15
|
15
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.34 |
||
|
16
|
16
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
17
|
17
23X-83976-00-00 Switch, Handle 1 |
23X-83976-00-00 |
from US $35.92 |
||
| replacement | |||||
|
17
|
17
23X-83976-01-00 Switch, Handle 1 |
23X-83976-01-00 |
US $41.81 |
||
|
18
|
18
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
