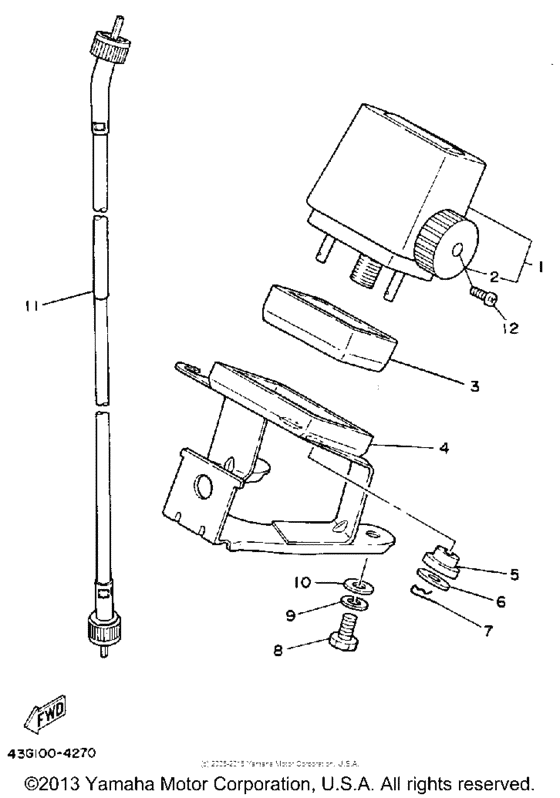

Meter Diagram Yamaha IT
- Year
- 1985
- Sales region
- USA
- Engine Capacity
- 200
- Model
- IT200
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4V5-83505-60-00
Trip Meter Comp
|
4V5-83505-60-00 |
— | ||
|
1
|
1
4V5-83505-F0-00
Trip Meter Cmplt
|
4V5-83505-F0-00 |
— | ||
|
2
|
2
4V5-83578-00-00
Knob, Trip Meter
|
4V5-83578-00-00 |
— | ||
|
3
|
3
4V5-83513-00-00 Damper |
4V5-83513-00-00 |
from US $13.60 |
||
|
4
|
4
26A-83519-00-00
Bracket, Meter
|
26A-83519-00-00 |
— | ||
|
5
|
5
1M1-83526-00-00
Damper 2
|
1M1-83526-00-00 |
— | ||
| replacement | |||||
|
5
|
5
1M1-83526-01-00 Damper 2 |
1M1-83526-01-00 |
from US $5.72 |
||
|
6
|
6
902-01052-E2-00
Washer, Plate
|
902-01052-E2-00 |
— | ||
| replacement | |||||
|
6
|
6
90201-05032-00 Washer Plate 803835240000 |
90201-05032-00 |
from US $1.70 |
||
|
7
|
7
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
8
|
8
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
8
|
8
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
10
|
10
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
11
|
11
4V5-83550-01-00 Speedometer Cable |
4V5-83550-01-00 |
from US $33.46 |
||
| replacement | |||||
|
11
|
11
4V5-83550-02-00 Speedometer Cable |
4V5-83550-02-00 |
from US $41.02 |
||
