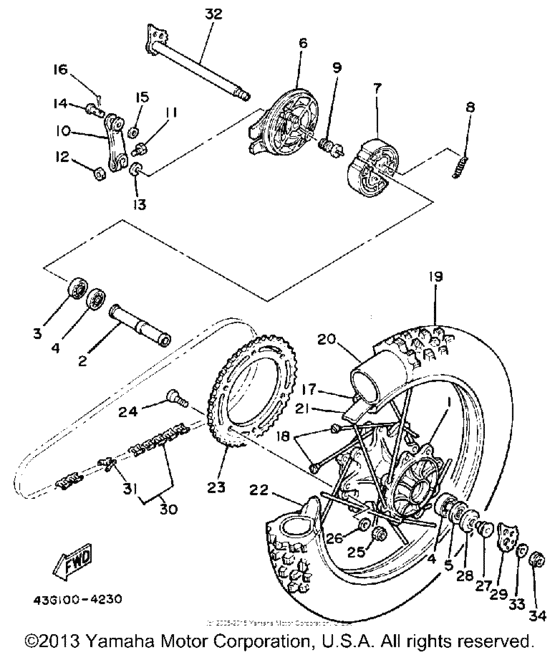

Rear wheel Diagram Yamaha IT
- Year
- 1985
- Sales region
- USA
- Engine Capacity
- 200
- Model
- IT200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55Y-25311-00-98
Hub, Rear
|
55Y-25311-00-98 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
90560-17231-00
Spacer
|
90560-17231-00 |
— | ||
|
3
|
3
93306-20310-00 Bearing |
93306-20310-00 |
from US $15.30 |
||
|
4
|
4
93306-20310-00 Bearing |
93306-20310-00 |
from US $15.30 |
||
|
5
|
5
93106-25022-00 Oil Seal, Dd-Type |
93106-25022-00 |
from US $5.58 |
||
|
6
|
6
43G-25321-00-98
Plate, Brake Shoe
|
43G-25321-00-98 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
39W-W2536-00-00 Brake Shoe Kit |
39W-W2536-00-00 |
from US $41.06 |
||
| replacement | |||||
|
7
|
7
39W-W253E-10-00 Brake Shoe Kit |
39W-W253E-10-00 |
from US $41.26 |
||
|
8
|
8
90506-17328-00 Spring, Tension |
90506-17328-00 |
from US $8.36 |
||
|
9
|
9
49T-25351-00-00
Camshaft
|
49T-25351-00-00 |
— | ||
|
10
|
10
43G-25355-00-00
Lever, Camshaft
|
43G-25355-00-00 |
— | ||
|
11
|
11
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
12
|
12
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
13
|
13
148-25359-00-00 Seal, Camshaft |
148-25359-00-00 |
from US $2.69 |
||
|
14
|
14
3R6-27237-00-00
Pin, Clevis
|
3R6-27237-00-00 |
— | ||
|
15
|
15
90201-12631-00 Washer, Plate (583) |
90201-12631-00 |
from US $1.56 |
||
|
16
|
16
91401-25030-00 Pin. Cotter |
91401-25030-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
91490-25030-00 Pin. Cotter |
91490-25030-00 |
from US $1.34 |
||
|
17
|
17
944-18183-88-00
Rim 1.85X18
1.85X18 |
944-18183-88-00 |
— | ||
|
17
|
17
941-7105N-08-00
7.10-5 (Kart) Dunlop
IN PRICE BOOK |
941-7105N-08-00 |
— | ||
|
18
|
18
55Y-25304-00-00
Spoke Set, Rear
|
55Y-25304-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
43G-25304-00-00
Spoke Set, Rear
|
43G-25304-00-00 |
— | ||
|
19
|
19
941-12182-F7-00
120/90-18 Mk2-Tt (110/90-18 61M
110/90-18 61M INOUE |
941-12182-F7-00 |
— | ||
|
20
|
20
942-11182-09-00
Tube
|
942-11182-09-00 |
— | ||
|
21
|
21
94325-18043-00 Band, Rim (538) |
94325-18043-00 |
from US $4.39 |
||
| replacement | |||||
|
21
|
21
94340-18086-00 Band, Rim (2.50-18) |
94340-18086-00 |
from US $4.39 |
||
|
22
|
22
39W-25394-00-00 Spacer, Bead |
39W-25394-00-00 |
US $79.61 |
||
|
23
|
23
26A-25442-50-00 Sprocket, Driven (4242T ALT. PART |
26A-25442-50-00 |
from US $55.95 |
||
| replacement | |||||
|
23
|
23
26A-25442-51-00 SPROCKET, DRIVEN42T ALT. PART |
26A-25442-51-00 |
from US $58.09 |
||
|
23
|
23
26A-25444-50-00
Sprocket, Driven (44T)
44T U.R. |
26A-25444-50-00 |
— | ||
| replacement | |||||
|
23
|
23
26A-25444-51-00 Sprocket, Driven (44T)44T U.R. |
26A-25444-51-00 |
US $47.50 |
||
|
23
|
23
26A-25446-50-33 Sprocket, Driven46T 26A-254 ALT. PART |
26A-25446-50-33 |
US $51.66 |
||
| replacement | |||||
|
23
|
23
26A-25446-51-00 Sprocket, Driven (46T)46T 26A-254 ALT. PART |
26A-25446-51-00 |
US $47.32 |
||
|
24
|
24
90109-08706-00 Bolt |
90109-08706-00 |
from US $2.69 |
||
| replacement | |||||
|
24
|
24
90109-081G2-00 Bolt(1Tj) |
90109-081G2-00 |
from US $2.69 |
||
|
25
|
25
95611-08100-00 Nut (2H1) |
95611-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
25
|
25
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
26
|
26
90201-081A6-00 Washer, Plate |
90201-081A6-00 |
from US $1.70 |
||
| replacement | |||||
|
26
|
26
90201-086P8-00 Washer, Plate(3Xp) |
90201-086P8-00 |
from US $1.70 |
||
|
27
|
27
90387-175K4-00
Collar
|
90387-175K4-00 |
— | ||
|
28
|
28
24X-25367-00-00 Cover, Hub Dust |
24X-25367-00-00 |
from US $4.68 |
||
|
29
|
29
1M1-25388-01-00
Puller, Chain 1
|
1M1-25388-01-00 |
— | ||
|
30
|
30
94585-20106-00 ChainChain (did520ds-106l) DS 106L |
94585-20106-00 |
US $59.42 |
||
|
31
|
31
94685-20001-00 Joint, Chain (Did 520Dm-Rj)520DM-RJ |
94685-20001-00 |
from US $3.28 |
||
| replacements | |||||
|
31
|
31
94681-68001-00 Joint, Chain (Did 520Dm-Rj)520DM-RJ |
94681-68001-00 |
from US $3.64 |
||
|
31
|
31
CHN-QR520-MS-TR
Chain 520
520DM-RJ |
CHN-QR520-MS-TR |
— | ||
|
32
|
32
43G-25381-00-00
Axle, Wheel
|
43G-25381-00-00 |
— | ||
|
33
|
33
902-01160-F6-00 Washer, Plate |
902-01160-F6-00 |
from US $7.37 |
||
|
34
|
34
90185-16103-00
Nut, Self-Locking
|
90185-16103-00 |
— | ||
