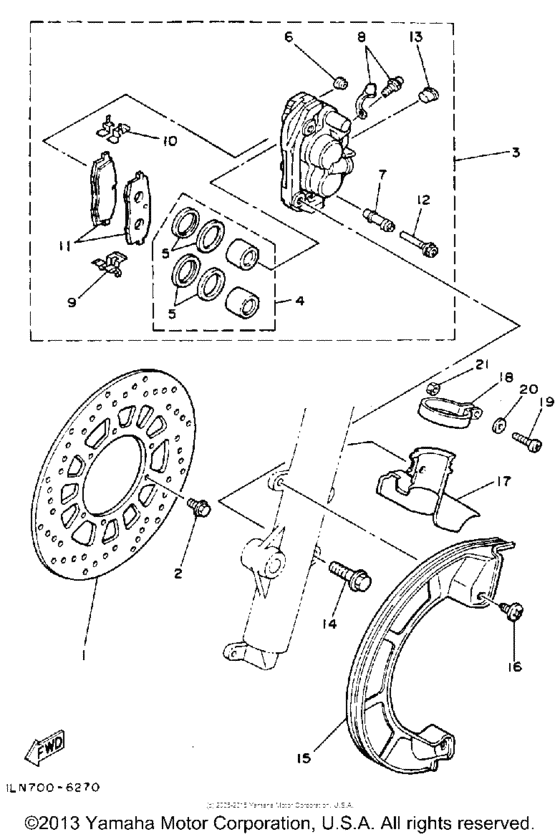

Front brake-caliper Diagram Yamaha IT
- Year
- 1986
- Sales region
- USA
- Engine Capacity
- 200
- Model
- IT200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55U-25831-00-00
Disc,brake
|
55U-25831-00-00 |
— | ||
| replacement | |||||
|
1
|
1
55U-2582T-00-00
Disc, Brake
|
55U-2582T-00-00 |
— | ||
|
2
|
2
901-09067-57-00
Bolt
|
901-09067-57-00 |
— | ||
| replacements | |||||
|
2
|
2
958-80060-16-00
Bolt, Flange
|
958-80060-16-00 |
— | ||
|
2
|
2
95814-06016-00 Bolt, Flange |
95814-06016-00 |
from US $1.35 |
||
|
3
|
3
1LN-2580T-00-00
Caliper Assembly
|
1LN-2580T-00-00 |
— | ||
|
4
|
4
56A-W0057-00-00
Piston Assembly, Caliper
|
56A-W0057-00-00 |
— | ||
|
5
|
5
56A-W0047-00-00 Caliper Seal Kit |
56A-W0047-00-00 |
from US $25.40 |
||
|
6
|
6
5R2-25937-00-00 Boot 2 |
5R2-25937-00-00 |
from US $19.55 |
||
|
7
|
7
56A-25937-00-00 Boot 2 |
56A-25937-00-00 |
from US $14.03 |
||
|
8
|
8
51L-W0048-00-00
Bleed Screw Kit
|
51L-W0048-00-00 |
— | ||
| replacement | |||||
|
8
|
8
15B-W0048-00-00 Bleed Screw Kit |
15B-W0048-00-00 |
from US $8.08 |
||
|
9
|
9
56A-25919-00-00 Support, Pad |
56A-25919-00-00 |
from US $20.26 |
||
|
10
|
10
56A-25919-10-00 Support, Pad |
56A-25919-10-00 |
from US $20.26 |
||
|
11
|
11
2HH-W0045-01-00 Brake Pad Kit,frnt |
2HH-W0045-01-00 |
from US $68.39 |
||
| replacement | |||||
|
11
|
11
1LN-W0045-01-00 Brake Pad Kit |
1LN-W0045-01-00 |
from US $70.99 |
||
|
12
|
12
56A-25926-00-00 Bolt |
56A-25926-00-00 |
from US $7.65 |
||
|
13
|
13
34X-25845-00-00 Cap, Indicator |
34X-25845-00-00 |
from US $7.23 |
||
|
14
|
14
55U-25818-00-00 Bolt, Flange |
55U-25818-00-00 |
from US $1.70 |
||
| replacement | |||||
|
14
|
14
95814-08030-00 Bolt, Flange |
95814-08030-00 |
from US $1.56 |
||
|
15
|
15
55U-25715-00-00 Cover 1 |
55U-25715-00-00 |
US $136.61 |
||
|
16
|
16
90149-06194-00 Screw |
90149-06194-00 |
from US $3.14 |
||
| replacement | |||||
|
16
|
16
90111-06806-00
Bolt
|
90111-06806-00 |
— | ||
|
17
|
17
1TY-25716-00-00
Cover 2
YAMAHA BLK |
1TY-25716-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
YAMAHA BLK |
999-99999-99-00 |
— | ||
|
18
|
18
1TY-25719-00-00 Band |
1TY-25719-00-00 |
US $29.16 |
||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
19
|
19
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
20
|
20
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
20
|
20
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
20
|
20
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
21
|
21
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
