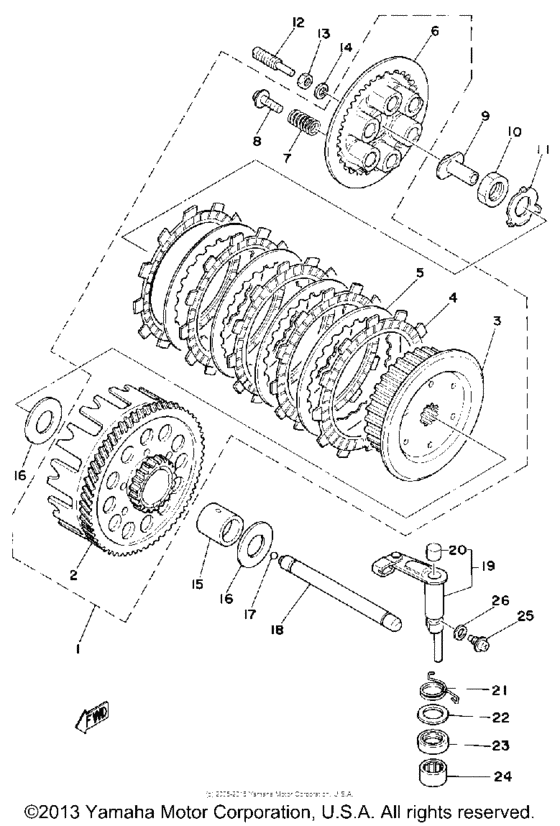

Clutch Diagram Yamaha IT
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 250
- Model
- IT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2X4-16301-00-00
Clutch Assembly
|
2X4-16301-00-00 |
— | ||
|
2
|
2
2K7-16150-00-00
Pri Drvn Gear
|
2K7-16150-00-00 |
— | ||
|
3
|
3
2K7-16371-00-00
Boss, Clutch
|
2K7-16371-00-00 |
— | ||
|
4
|
4
4H7-16321-01-00
Plate, Friction
|
4H7-16321-01-00 |
— | ||
| replacement | |||||
|
4
|
4
4H7-16321-02-00 Plate, Friction |
4H7-16321-02-00 |
from US $12.58 |
||
|
5
|
5
168-16324-00-00 Plate, Clutch 1 (T=2.3)T=2.3 |
168-16324-00-00 |
from US $11.26 |
||
|
6
|
6
2K7-16351-00-00
Plate, Pressure 1
|
2K7-16351-00-00 |
— | ||
|
7
|
7
905-01245-49-00
Spring, Compression
|
905-01245-49-00 |
— | ||
|
8
|
8
90159-06016-00 Screw, With Washer |
90159-06016-00 |
from US $1.56 |
||
|
9
|
9
2K7-16356-00-00
Rod, Push 1
|
2K7-16356-00-00 |
— | ||
|
10
|
10
90170-20195-00 Nut |
90170-20195-00 |
US $12.11 |
||
| replacements | |||||
|
10
|
10
90170-20255-00 Nut |
90170-20255-00 |
from US $7.65 |
||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
902-15201-25-00 Washer, Lock |
902-15201-25-00 |
from US $2.69 |
||
| replacement | |||||
|
11
|
11
90215-20159-00 Washer, Lock |
90215-20159-00 |
from US $2.69 |
||
|
12
|
12
90149-06123-00
Screw, Spec''l Shape
|
90149-06123-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
14
|
14
95311-06600-00 Nut |
95311-06600-00 |
from US $1.21 |
||
| replacement | |||||
|
14
|
14
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
15
|
15
2K7-16181-00-00
Spacer 1
|
2K7-16181-00-00 |
— | ||
|
16
|
16
2K7-16154-00-00 Plate, Thrust 1 |
2K7-16154-00-00 |
from US $15.58 |
||
|
17
|
17
93515-32029-00 Ball |
93515-32029-00 |
from US $1.66 |
||
|
18
|
18
2K7-16357-01-00
Rod, Push 2
|
2K7-16357-01-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
2X4-16380-00-00
Push Lever Assembly
|
2X4-16380-00-00 |
— | ||
|
20
|
20
214-17481-00-00
Plug, Blind
|
214-17481-00-00 |
— | ||
|
21
|
21
905-08143-73-00
Spring, Torsion
|
905-08143-73-00 |
— | ||
|
22
|
22
902-01173-27-00
Washer, Plate
|
902-01173-27-00 |
— | ||
| replacement | |||||
|
22
|
22
90201-18262-00 Washer, Plate |
90201-18262-00 |
from US $1.84 |
||
|
23
|
23
93102-17004-00 Oil Seal |
93102-17004-00 |
from US $3.98 |
||
|
24
|
24
93315-21721-00 Bearing, Cylindrical |
93315-21721-00 |
from US $20.26 |
||
|
25
|
25
90149-08108-00 Screw, Special Shape |
90149-08108-00 |
from US $7.79 |
||
|
26
|
26
904-30080-69-00
Gasket
|
904-30080-69-00 |
— | ||
| replacement | |||||
|
26
|
26
90430-08204-00 Gasket(3Aj) |
90430-08204-00 |
from US $1.34 |
||
