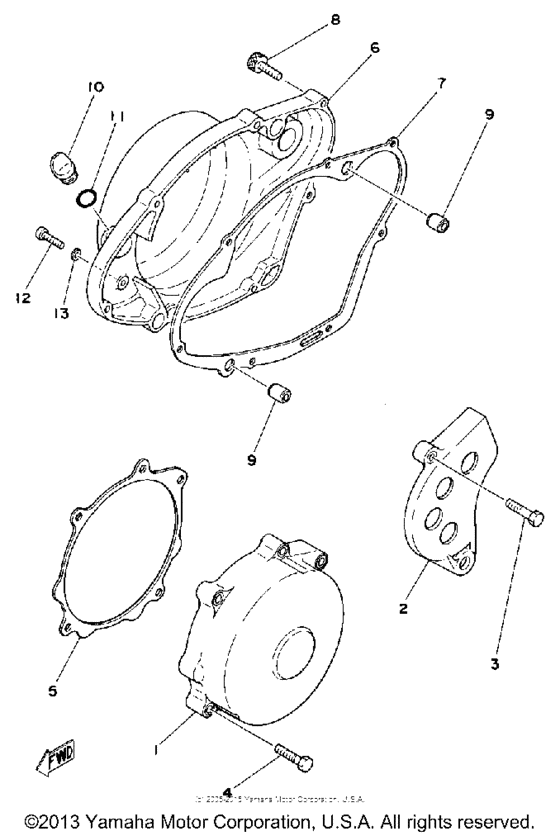

Crankcase cover Diagram Yamaha IT
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 250
- Model
- IT250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2X7-15411-00-00
Cover, Crankcase L
|
2X7-15411-00-00 |
— | ||
|
2
|
2
2K7-15421-00-00
Cover, Crankcase R
|
2K7-15421-00-00 |
— | ||
|
3
|
3
913-16060-25-00
Bolt
|
913-16060-25-00 |
— | ||
| replacement | |||||
|
3
|
3
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.07 |
||
|
4
|
4
90110-06138-00 Bolt |
90110-06138-00 |
from US $0.99 |
||
|
5
|
5
2X7-15451-00-00
Gasket, Crcs Cover
|
2X7-15451-00-00 |
— | ||
|
6
|
6
2K7-15431-01-00
Cover, Crankcase 3
|
2K7-15431-01-00 |
— | ||
|
7
|
7
2K7-15462-00-00
Gasket Crcs Cvr 3
|
2K7-15462-00-00 |
— | ||
| replacement | |||||
|
7
|
7
2K7-15462-01-00
KICK CRANK ASY
|
2K7-15462-01-00 |
— | ||
|
8
|
8
913-16060-25-00
Bolt
|
913-16060-25-00 |
— | ||
| replacement | |||||
|
8
|
8
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.07 |
||
|
9
|
9
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
9
|
9
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.42 |
||
|
10
|
10
1G8-15362-00-00 Plug, Oil Level |
1G8-15362-00-00 |
US $18.22 |
||
|
11
|
11
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
11
|
11
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.28 |
||
|
12
|
12
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
| replacement | |||||
|
12
|
12
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
13
|
13
90430-06016-00 Gasket |
90430-06016-00 |
from US $2.55 |
||
