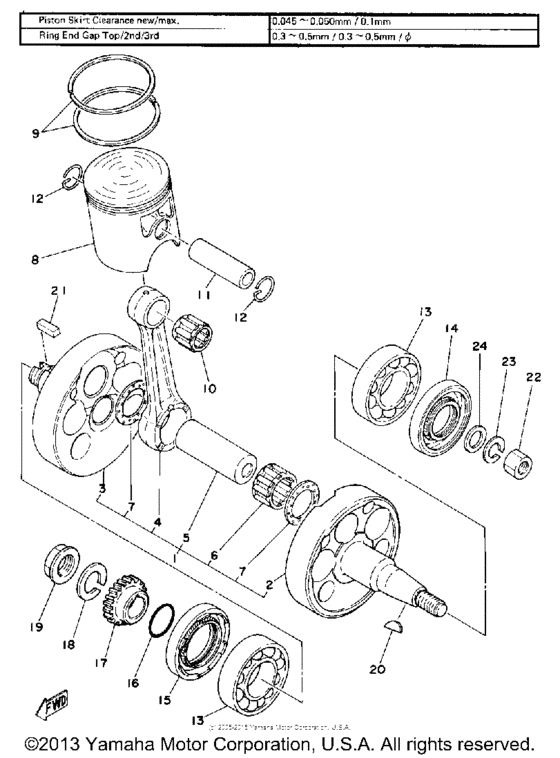

Crankshaft & Piston Diagram Yamaha IT
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 250
- Model
- IT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2X7-11400-00-00
Crankshaft Assembly
|
2X7-11400-00-00 |
— | ||
|
2
|
2
2X7-11412-00-00
Crank 1
|
2X7-11412-00-00 |
— | ||
|
3
|
3
1W3-11422-00-00
Crank 2
|
1W3-11422-00-00 |
— | ||
|
4
|
4
498-11651-00-00
Rod, Connecting
|
498-11651-00-00 |
— | ||
|
5
|
5
2X4-11681-00-00 Pin, Crank 1 |
2X4-11681-00-00 |
from US $73.36 |
||
|
6
|
6
933-10425-N4-00
Bearing, Cylindrical
|
933-10425-N4-00 |
— | ||
| replacement | |||||
|
6
|
6
93310-425P2-00 Bearing |
93310-425P2-00 |
from US $23.48 |
||
|
7
|
7
90209-25085-00 Washer, (90209-25220)90209-25220 |
90209-25085-00 |
from US $11.62 |
||
|
8
|
8
2X7-11631-00-96
Piston Std
|
2X7-11631-00-96 |
— | ||
|
8
|
8
2X7-11636-01-00
Piston 2 O/s 0.50
O/S 0.50 |
2X7-11636-01-00 |
— | ||
|
8
|
8
1W5-11630-40-00
Piston Kit 4Th
4TH |
1W5-11630-40-00 |
— | ||
|
8
|
8
1W5-11630-30-00
Piston Kit 3Rd
3RD |
1W5-11630-30-00 |
— | ||
|
8
|
8
1W5-11630-20-00
Piston Kit 2Nd
2ND |
1W5-11630-20-00 |
— | ||
|
8
|
8
1W5-11630-10-00
Piston Kit 1St
1ST |
1W5-11630-10-00 |
— | ||
|
8
|
8
1W5-11630-00-00
Piston Kit Std
|
1W5-11630-00-00 |
— | ||
|
8
|
8
2X7-11638-01-00
Piston 4 O/s 1.00
O/S 1.00 |
2X7-11638-01-00 |
— | ||
|
8
|
8
2X7-11637-01-00
Piston 3 O/s 0.75
O/S 0.75 |
2X7-11637-01-00 |
— | ||
|
8
|
8
2X7-11635-01-00
Piston 1 O/s 0.25
O/S 0.25 |
2X7-11635-01-00 |
— | ||
|
9
|
9
1W5-11610-00-00
Piston Ringset Std (2X7-11610-0
2X7-11610-0 |
1W5-11610-00-00 |
— | ||
|
9
|
9
1W5-11610-10-00
Piston Ringset 1St (2X7-11610-1
1ST 2X7-11610-1 |
1W5-11610-10-00 |
— | ||
|
9
|
9
1W5-11610-40-00
Piston Ringset 4Th (2X7-11610-4
4TH 2X7-11610-4 |
1W5-11610-40-00 |
— | ||
|
9
|
9
1W5-11610-30-00
Piston Ringset 3Rd (2X7-11610-3
3RD 2X7-11610-3 |
1W5-11610-30-00 |
— | ||
|
9
|
9
1W5-11610-20-00
Piston Ringset 2Nd (2X7-11610-2
2ND 2X7-11610-2 |
1W5-11610-20-00 |
— | ||
|
10
|
10
93310-218A6-00 Bearing |
93310-218A6-00 |
from US $12.24 |
||
|
11
|
11
214-11633-00-00 Pin, Piston |
214-11633-00-00 |
from US $17.87 |
||
|
12
|
12
934-50190-52-00 Circlip |
934-50190-52-00 |
from US $1.66 |
||
|
13
|
13
933-06206-27-00 Bearing (5X5) |
933-06206-27-00 |
from US $30.76 |
||
|
14
|
14
93103-30150-00 Oil Seal (38W)38W |
93103-30150-00 |
from US $18.42 |
||
|
15
|
15
93103-40091-00 Oil Seal |
93103-40091-00 |
from US $21.54 |
||
|
16
|
16
93210-29282-00 O-Ring |
93210-29282-00 |
from US $1.84 |
||
|
17
|
17
2K7-16111-00-00
Gear, Pri Drive
|
2K7-16111-00-00 |
— | ||
|
18
|
18
92901-18100-00 Washer(N15) |
92901-18100-00 |
from US $3.12 |
||
| replacement | |||||
|
18
|
18
92907-18100-00 Washer |
92907-18100-00 |
from US $3.12 |
||
|
19
|
19
90179-18172-00 Nut |
90179-18172-00 |
from US $14.87 |
||
|
20
|
20
902-80160-53-00
Key, Woodruff(3Tb)
|
902-80160-53-00 |
— | ||
| replacement | |||||
|
20
|
20
90280-05001-00 Key, Woodruff |
90280-05001-00 |
from US $9.35 |
||
|
21
|
21
90282-07019-00 Key, Straight |
90282-07019-00 |
from US $6.94 |
||
|
22
|
22
90170-12347-00 Nut, Hexagon |
90170-12347-00 |
from US $1.70 |
||
|
23
|
23
929-01121-00-00
Washer, Spring
|
929-01121-00-00 |
— | ||
| replacement | |||||
|
23
|
23
92990-12100-00 Washer, Spring |
92990-12100-00 |
from US $2.55 |
||
|
24
|
24
90201-12593-00 Washer, Plate |
90201-12593-00 |
from US $4.53 |
||
