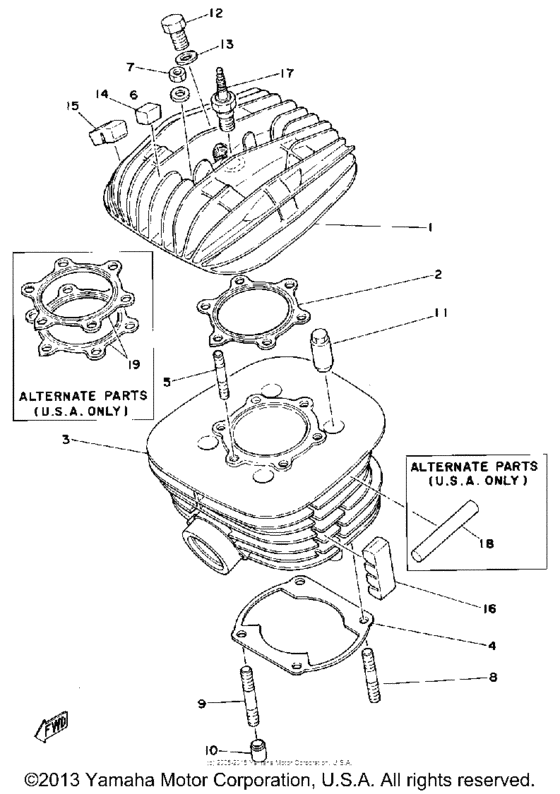

Cylinder head & cylinder Diagram Yamaha IT
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 250
- Model
- IT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2X7-11111-00-00
Head, Cylinder 1
|
2X7-11111-00-00 |
— | ||
|
2
|
2
1W3-11181-00-00 Gasket, Cylinder Head 1 |
1W3-11181-00-00 |
from US $22.67 |
||
|
3
|
3
2X4-11311-00-00
Cylinder 1
|
2X4-11311-00-00 |
— | ||
|
4
|
4
2K7-11351-00-00 Gasket, Cylinder |
2K7-11351-00-00 |
from US $9.98 |
||
| replacement | |||||
|
4
|
4
2K7-11351-01-00 PISTON KIT 1ST O/S |
2K7-11351-01-00 |
from US $9.98 |
||
|
5
|
5
90116-08321-00 Bolt, Stud (3R3) |
90116-08321-00 |
from US $4.11 |
||
| replacements | |||||
|
5
|
5
90116-08394-00 Bolt, Stud |
90116-08394-00 |
from US $1.70 |
||
|
5
|
5
90116-08564-00 Bolt, Stud |
90116-08564-00 |
from US $4.11 |
||
|
6
|
6
90201-08100-00 Washer, Plate |
90201-08100-00 |
from US $2.69 |
||
|
7
|
7
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
8
|
8
90116-10263-00 Bolt, Stud |
90116-10263-00 |
from US $10.20 |
||
|
9
|
9
901-16102-58-00
Bolt, Stud
|
901-16102-58-00 |
— | ||
|
10
|
10
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.56 |
||
|
11
|
11
90179-10201-00 Nut |
90179-10201-00 |
US $24.23 |
||
| replacement | |||||
|
11
|
11
90179-10021-00 Nut |
90179-10021-00 |
from US $24.23 |
||
|
12
|
12
903-40140-22-00
Plug, Straight Scrw (214-11197-
214-11197- |
903-40140-22-00 |
— | ||
|
13
|
13
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $1.66 |
||
|
14
|
14
363-11161-00-00 Absorber 1 (363-11161-00)363-11161-00 |
363-11161-00-00 |
from US $5.81 |
||
|
15
|
15
1W2-11161-00-00
Absorber 1
|
1W2-11161-00-00 |
— | ||
|
16
|
16
2N6-11127-00-00
Absorber 3
|
2N6-11127-00-00 |
— | ||
| replacement | |||||
|
16
|
16
2A6-11127-00-00
Absorber 3
|
2A6-11127-00-00 |
— | ||
|
17
|
17
CMP-N2G00-00-00
Champion N2G 10Pk
N2G 10PK CHAMPION |
CMP-N2G00-00-00 |
— | ||
|
18
|
18
1W6-11161-00-00
Absorber 1
ALTERNATE PARTS U.S.A. |
1W6-11161-00-00 |
— | ||
|
19
|
19
1W3-11181-00-00 Gasket, Cylinder Head 1ALTERNATE PARTS U.S.A. |
1W3-11181-00-00 |
from US $22.67 |
||
