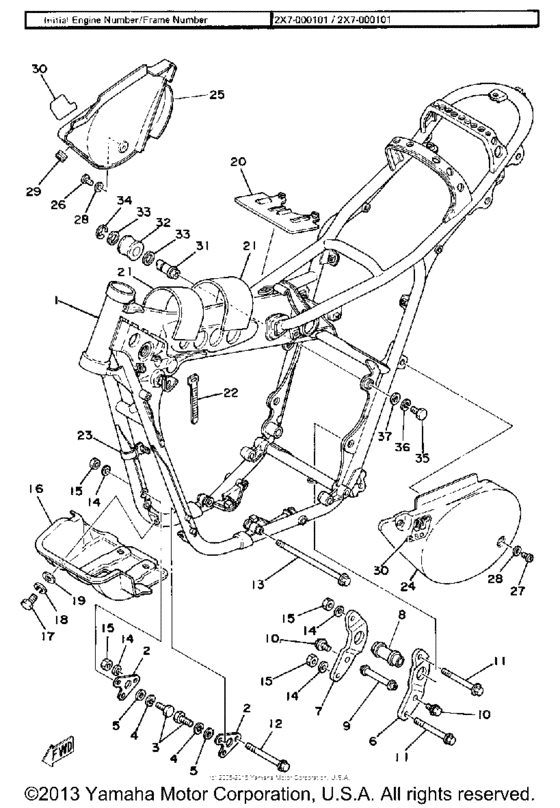

Frame - side cover Diagram Yamaha IT
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 250
- Model
- IT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2X7-21110-00-33
Frame
|
2X7-21110-00-33 |
— | ||
|
2
|
2
2X4-21415-00-00
Bracket, Frt Upr 1 (2K7-21415-0
2K7-21415-0 |
2X4-21415-00-00 |
— | ||
|
3
|
3
97001-08025-00 Bolt (1Nv) |
97001-08025-00 |
from US $1.21 |
||
| replacement | |||||
|
3
|
3
97017-08025-00 Bolt |
97017-08025-00 |
from US $1.21 |
||
|
4
|
4
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
5
|
5
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
5
|
5
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
6
|
6
2K7-21427-00-00
Bracket, Rear Lwr 1
|
2K7-21427-00-00 |
— | ||
|
7
|
7
2K7-21428-00-00
Bracket, Rear Lwr 2
|
2K7-21428-00-00 |
— | ||
|
8
|
8
2K7-21459-00-00
Spacer
|
2K7-21459-00-00 |
— | ||
|
9
|
9
2K7-21424-00-00
No Longer Available
|
2K7-21424-00-00 |
— | ||
|
10
|
10
95811-08016-00 Bolt, Flange |
95811-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
10
|
10
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
10
|
10
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
11
|
11
95811-08090-00 Bolt, Flange (2K7) |
95811-08090-00 |
from US $5.24 |
||
| replacement | |||||
|
11
|
11
95817-08090-00 Bolt, Flange |
95817-08090-00 |
from US $5.24 |
||
|
12
|
12
95811-08100-00 Bolt, Flange (2K7) |
95811-08100-00 |
from US $4.11 |
||
| replacement | |||||
|
12
|
12
95817-08100-00 Bolt, Flange |
95817-08100-00 |
from US $4.11 |
||
|
13
|
13
95811-08180-00
Bolt, Flange
|
95811-08180-00 |
— | ||
| replacement | |||||
|
13
|
13
958-17081-80-00
Bolt,flange
|
958-17081-80-00 |
— | ||
|
14
|
14
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
15
|
15
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
15
|
15
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
16
|
16
2X7-21471-00-00
Protector, Engine
|
2X7-21471-00-00 |
— | ||
|
17
|
17
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
17
|
17
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
18
|
18
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
19
|
19
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
19
|
19
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
20
|
20
1W1-24181-00-00
Damper, Locating 1
|
1W1-24181-00-00 |
— | ||
|
21
|
21
1W1-24183-00-00
Damper, Locating 3
|
1W1-24183-00-00 |
— | ||
|
22
|
22
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
23
|
23
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
24
|
24
1W6-21711-00-26
Cover, Side 1
|
1W6-21711-00-26 |
— | ||
|
25
|
25
1W6-21721-00-26
Cover, Side 2
|
1W6-21721-00-26 |
— | ||
|
26
|
26
98980-06016-00 Screw, Bind (705) |
98980-06016-00 |
from US $1.42 |
||
|
27
|
27
98903-06012-00 Screw, Bind |
98903-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
27
|
27
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.07 |
||
|
28
|
28
90201-06571-00 Washer, Plate |
90201-06571-00 |
from US $1.70 |
||
|
29
|
29
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.66 |
||
|
30
|
30
2K7-21786-00-00
Emblem 6
|
2K7-21786-00-00 |
— | ||
|
31
|
31
2K6-2148A-02-00
Shaft
|
2K6-2148A-02-00 |
— | ||
|
32
|
32
2K6-22178-00-00
Tensioner
|
2K6-22178-00-00 |
— | ||
|
33
|
33
90201-13202-00 Washer Plate 201156530000 |
90201-13202-00 |
from US $1.70 |
||
| replacement | |||||
|
33
|
33
90201-13013-00 Washer, Plate |
90201-13013-00 |
from US $1.70 |
||
|
34
|
34
1W1-18136-00-00 Circlip |
1W1-18136-00-00 |
from US $1.35 |
||
| replacement | |||||
|
34
|
34
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.34 |
||
|
35
|
35
973-13080-20-00
Bolt (661)
661 |
973-13080-20-00 |
— | ||
| replacements | |||||
|
35
|
35
97080-08020-00 Bolt(6Td)661 |
97080-08020-00 |
from US $4.05 |
||
|
35
|
35
97013-08020-00 Bolt661 |
97013-08020-00 |
from US $1.64 |
||
|
36
|
36
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
37
|
37
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
