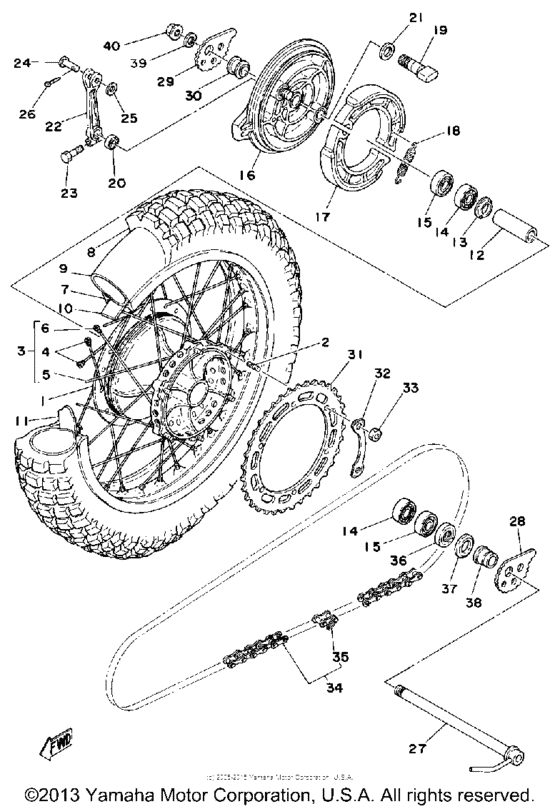

Rear wheel Diagram Yamaha IT
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 250
- Model
- IT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
483-25311-13-98
Hub, Rear
|
483-25311-13-98 |
— | ||
|
2
|
2
90116-08218-00 Bolt, Stud |
90116-08218-00 |
from US $1.84 |
||
|
3
|
3
431-25304-01-00
Spoke Set, Rear (431-25304-00)
431-25304-00 |
431-25304-01-00 |
— | ||
|
4
|
4
431-25396-90-00
Spoke Set, Inner 2
|
431-25396-90-00 |
— | ||
|
5
|
5
431-25391-90-00
Spoke Set, Inner 1
|
431-25391-90-00 |
— | ||
|
6
|
6
431-25392-90-00
Spoke Set, Outer 1
|
431-25392-90-00 |
— | ||
|
7
|
7
944-21182-38-00
Rim 2.15X18 (94421-18151) (2.15
2.15X18 94421-18151 2.15 |
944-21182-38-00 |
— | ||
|
8
|
8
94114-186G1-00
Tire
M2A TT |
94114-186G1-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
M2A TT |
999-99999-99-00 |
— | ||
|
9
|
9
94245-18125-00
Tube
|
94245-18125-00 |
— | ||
|
10
|
10
94345-18081-00 Band, Rim (2.50-18)2.50-18 |
94345-18081-00 |
from US $4.39 |
||
| replacement | |||||
|
10
|
10
94340-18086-00 Band, Rim (2.50-18)2.50-18 |
94340-18086-00 |
from US $4.39 |
||
|
11
|
11
1T1-25394-01-00
Spacer, Bead
|
1T1-25394-01-00 |
— | ||
|
12
|
12
483-25317-01-00
Spacer, Bearing
|
483-25317-01-00 |
— | ||
|
13
|
13
483-25315-00-00
Flange, Spacer
|
483-25315-00-00 |
— | ||
|
14
|
14
93306-20310-00 Bearing |
93306-20310-00 |
from US $15.30 |
||
|
15
|
15
93306-20310-00 Bearing |
93306-20310-00 |
from US $15.30 |
||
|
16
|
16
1W6-25321-00-98
Plate, Brake Shoe
|
1W6-25321-00-98 |
— | ||
|
17
|
17
2X4-W2536-00-00 Brake Shoe Kit |
2X4-W2536-00-00 |
from US $44.35 |
||
| replacement | |||||
|
17
|
17
3BH-W253E-00-00 Brake Shoe Kit |
3BH-W253E-00-00 |
from US $44.35 |
||
|
18
|
18
90507-20002-00 Spring, Tension 2462533300 |
90507-20002-00 |
from US $2 |
||
|
19
|
19
1E6-25151-00-00 Camshaft |
1E6-25151-00-00 |
US $48.51 |
||
|
20
|
20
148-25359-00-00 Seal, Camshaft |
148-25359-00-00 |
from US $2.69 |
||
|
21
|
21
148-25353-00-00 Shim, Camshaft |
148-25353-00-00 |
from US $2.98 |
||
|
22
|
22
4V5-25355-00-00
Lever, Camshaft (168-25355-00
168-25355-00 |
4V5-25355-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
168-25355-00 |
999-99999-99-00 |
— | ||
|
23
|
23
90101-06291-00 Bolt |
90101-06291-00 |
from US $1.70 |
||
| replacement | |||||
|
23
|
23
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
24
|
24
1W2-27237-00-00 Pin, Clevis |
1W2-27237-00-00 |
US $31.84 |
||
|
25
|
25
90201-12631-00 Washer, Plate (583) |
90201-12631-00 |
from US $1.56 |
||
|
26
|
26
91401-25030-00 Pin. Cotter |
91401-25030-00 |
from US $1.56 |
||
| replacement | |||||
|
26
|
26
91490-25030-00 Pin. Cotter |
91490-25030-00 |
from US $1.34 |
||
|
27
|
27
1W6-25381-00-00
Axle, Wheel
|
1W6-25381-00-00 |
— | ||
|
28
|
28
1M1-25388-01-00
Puller, Chain 1
|
1M1-25388-01-00 |
— | ||
|
29
|
29
1M1-25389-01-00
Puller, Chain 2
|
1M1-25389-01-00 |
— | ||
|
30
|
30
903-87176-18-00
Collar
|
903-87176-18-00 |
— | ||
|
31
|
31
38W-25444-20-00
Sprocket, Driven 44T
44T U.R. |
38W-25444-20-00 |
— | ||
|
31
|
31
583-25446-10-00
Sprocket, Drivn 46T
46T 1 |
583-25446-10-00 |
— | ||
|
31
|
31
583-25448-10-00
Sprocket, Drivn 48T (48T)
48T 48T STDU.R. |
583-25448-10-00 |
— | ||
|
31
|
31
431-25448-04-XX
Sprocket, Drivn 48T
48T U.R. |
431-25448-04-XX |
— | ||
|
31
|
31
431-25450-04-XX
Sprocket, Drivn 50Tsprocket Whe
50TSPROCKET WHE U.R. |
431-25450-04-XX |
— | ||
|
31
|
31
431-25452-04-XX
Sprocket, Drivn 52T
52T U.R. |
431-25452-04-XX |
— | ||
|
31
|
31
431-25454-04-XX
Sprocket, Drivn 54Tsprocket Whe
54TSPROCKET WHE U.R. |
431-25454-04-XX |
— | ||
|
32
|
32
583-25412-00-00 Washer |
583-25412-00-00 |
from US $5.24 |
||
| replacement | |||||
|
32
|
32
2XJ-25412-00-00 Washer |
2XJ-25412-00-00 |
from US $5.24 |
||
|
33
|
33
90170-08193-00 Nut, Hexagon |
90170-08193-00 |
from US $1.56 |
||
|
34
|
34
9Y5-85201-01-00 Chain 520Ds-103L (Did520Ds-102L520DS-103L DID520DS-102L |
9Y5-85201-01-00 |
from US $105.99 |
||
|
35
|
35
94685-20001-00 Joint, Chain (Did 520Dm-Rj)520DM-RJ |
94685-20001-00 |
from US $3.28 |
||
| replacements | |||||
|
35
|
35
94681-68001-00 Joint, Chain (Did 520Dm-Rj)520DM-RJ |
94681-68001-00 |
from US $3.64 |
||
|
35
|
35
CHN-QR520-MS-TR
Chain 520
520DM-RJ |
CHN-QR520-MS-TR |
— | ||
|
36
|
36
93102-25061-00 Oil Seal, Sd-Type |
93102-25061-00 |
from US $3.32 |
||
|
37
|
37
431-25367-00-00
Cover, Hub Dust
|
431-25367-00-00 |
— | ||
|
38
|
38
903-87175-55-00
Collar
|
903-87175-55-00 |
— | ||
|
39
|
39
92901-16100-00 Washer |
92901-16100-00 |
from US $3.40 |
||
| replacement | |||||
|
39
|
39
92907-16100-00 Washer(Jn5) |
92907-16100-00 |
from US $3.40 |
||
|
40
|
40
901-79160-07-00
Nut, Spec''l Shape
|
901-79160-07-00 |
— | ||
