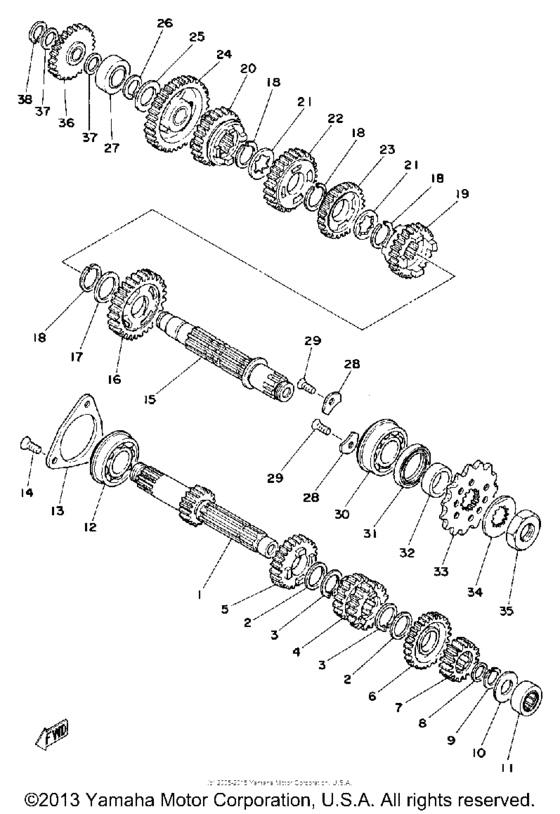

Transmission Diagram Yamaha IT
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 250
- Model
- IT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2X7-17411-00-00
Axle, Main
|
2X7-17411-00-00 |
— | ||
|
2
|
2
90201-22555-00 Washer, Plate |
90201-22555-00 |
from US $1.70 |
||
|
3
|
3
93410-22039-00 Circlip |
93410-22039-00 |
from US $1.70 |
||
|
4
|
4
2X7-17131-00-00
Gear, 3Rd Pinion
3RD PINION |
2X7-17131-00-00 |
— | ||
|
5
|
5
2X7-17151-00-00
Gear, 5Th Pinion
5TH PINION |
2X7-17151-00-00 |
— | ||
|
6
|
6
2X7-17161-00-00
Gear, 6Th Pinion
6TH PINION |
2X7-17161-00-00 |
— | ||
|
7
|
7
2X7-17121-00-00
Gear, 2Nd Pinion
2ND PINION |
2X7-17121-00-00 |
— | ||
|
8
|
8
90201-17682-00 Washer, Plate |
90201-17682-00 |
from US $1.84 |
||
|
9
|
9
93440-17064-00 Circlip |
93440-17064-00 |
from US $2.55 |
||
|
10
|
10
90201-17257-00 Washer, Plate |
90201-17257-00 |
from US $1.84 |
||
|
11
|
11
93311-41734-00 Bearing, Cylinder 1111 |
93311-41734-00 |
from US $37.72 |
||
|
12
|
12
93306-20535-00
Bearing (93306-20515)
93306-20515 |
93306-20535-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
93306-20515 |
999-99999-99-00 |
— | ||
|
13
|
13
1W4-15383-00-00
Plate, Brng Cover
|
1W4-15383-00-00 |
— | ||
| replacement | |||||
|
13
|
13
363-15383-00-00
Plate, Brng Cover
|
363-15383-00-00 |
— | ||
|
14
|
14
986-03060-12-00
Screw, Oval Head (92701-06012)
92701-06012 |
986-03060-12-00 |
— | ||
|
15
|
15
2K7-17421-00-00
Axle, Drive
|
2K7-17421-00-00 |
— | ||
|
16
|
16
2X7-17221-00-00
Gear, 2Nd Wheel
2ND WHEEL |
2X7-17221-00-00 |
— | ||
|
17
|
17
90201-253K0-00 Washer, Plate (T=1.0) |
90201-253K0-00 |
from US $1.70 |
||
|
18
|
18
934-40250-84-00 Circlip |
934-40250-84-00 |
from US $1.70 |
||
|
19
|
19
2X7-17261-00-00
Gear, 6Th Wheel
6TH WHEEL |
2X7-17261-00-00 |
— | ||
|
20
|
20
2X7-17251-00-00
Gear, 5Th Wheel
5TH WHEEL |
2X7-17251-00-00 |
— | ||
|
21
|
21
90209-22082-00 Washer (T=0.5) |
90209-22082-00 |
from US $2.27 |
||
|
22
|
22
2X7-17231-00-00
Gear, 3Rd Wheel
3RD WHEEL |
2X7-17231-00-00 |
— | ||
|
23
|
23
2X7-17241-00-00
Gear, 4Th Wheel
4TH WHEEL |
2X7-17241-00-00 |
— | ||
|
24
|
24
2X7-17211-00-00
Gear, 1St Wheel
1ST WHEEL |
2X7-17211-00-00 |
— | ||
|
25
|
25
90201-20278-00 Washer, Plate |
90201-20278-00 |
from US $1.70 |
||
|
26
|
26
93410-20038-00 Circlip |
93410-20038-00 |
from US $1.34 |
||
|
27
|
27
93311-62035-00 Bearing, Cylindrical |
93311-62035-00 |
from US $28.62 |
||
|
28
|
28
2K7-15383-00-00 Plate, Bearing Cover |
2K7-15383-00-00 |
from US $7.88 |
||
| replacement | |||||
|
28
|
28
4XM-15383-00-00 Plate, Bearing Cover |
4XM-15383-00-00 |
from US $9.07 |
||
|
29
|
29
986-03060-12-00
Screw, Oval Head (92701-06012)
92701-06012 |
986-03060-12-00 |
— | ||
|
30
|
30
93304-20501-00 Bearing |
93304-20501-00 |
from US $77.23 |
||
|
31
|
31
93102-32M07-00 Oil Seal |
93102-32M07-00 |
from US $9.26 |
||
|
32
|
32
90387-25663-00 Collar |
90387-25663-00 |
from US $24.37 |
||
|
33
|
33
938-34150-78-00 Sprocket, Drive |
938-34150-78-00 |
from US $24.46 |
||
|
33
|
33
938-34140-51-00 Sprocket, Drive |
938-34140-51-00 |
US $18.63 |
||
|
33
|
33
93834-13030-00 Sprocket, Drive 13T (23X174613013T 23X1746130 STDU.R. |
93834-13030-00 |
from US $21.56 |
||
| replacement | |||||
|
33
|
33
93834-13206-00 Sprocket, Drive (13T)(4Rf)13T 23X1746130 STDU.R. |
93834-13206-00 |
from US $25.79 |
||
|
34
|
34
90215-21239-00 Washer, Lock (23X) |
90215-21239-00 |
from US $2.98 |
||
|
35
|
35
90179-20255-00 Nut |
90179-20255-00 |
from US $5.30 |
||
|
36
|
36
3R4-15651-00-00
Gear, Sprocket Idle (21T)
|
3R4-15651-00-00 |
— | ||
|
37
|
37
90201-17545-00 Washer, Plate |
90201-17545-00 |
from US $3.26 |
||
|
38
|
38
99009-17400-00 Circlip |
99009-17400-00 |
from US $1.56 |
||
| replacement | |||||
|
38
|
38
93410-17X00-00 Circlip |
93410-17X00-00 |
US $1.56 |
||
