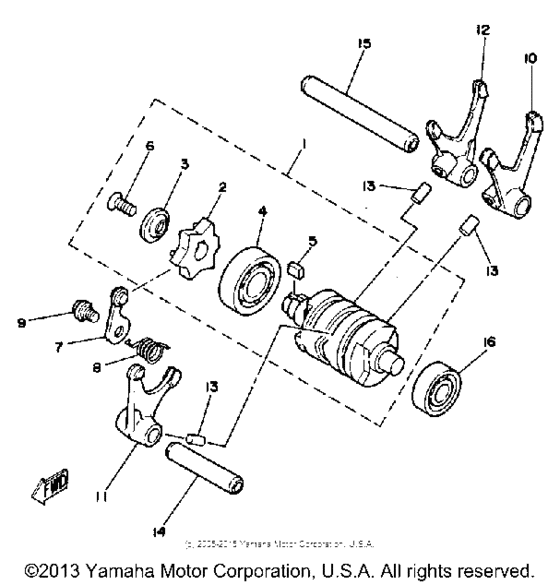

Shift cam-fork Diagram Yamaha IT
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 250
- Model
- IT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25Y-18540-00-00
Shift Cam Assembly
|
25Y-18540-00-00 |
— | ||
|
2
|
2
3R4-18185-00-00 Segment |
3R4-18185-00-00 |
from US $23.80 |
||
|
3
|
3
3R4-18561-00-00 Plate, Side 1 |
3R4-18561-00-00 |
from US $6.09 |
||
|
4
|
4
93306-00406-00 Bearing |
93306-00406-00 |
from US $15.44 |
||
| replacement | |||||
|
4
|
4
93306-00438-00 Bearing |
93306-00438-00 |
from US $11.58 |
||
|
5
|
5
90282-04036-00 Key, Straight |
90282-04036-00 |
from US $4.11 |
||
|
6
|
6
98701-05016-00 Screw, Flat Head |
98701-05016-00 |
from US $1.42 |
||
| replacements | |||||
|
6
|
6
98707-05016-00 Screw, Flat Head |
98707-05016-00 |
from US $1.35 |
||
|
6
|
6
90151-05055-00 Screw, Countersunk(3Ac) |
90151-05055-00 |
from US $2.27 |
||
|
7
|
7
3R4-18140-00-00
Stopper Lever Assembly
|
3R4-18140-00-00 |
— | ||
|
8
|
8
90508-26421-00
Spring, Torsion (3R4)
|
90508-26421-00 |
— | ||
|
9
|
9
50W-21631-00-00 Bolt |
50W-21631-00-00 |
from US $2.55 |
||
| replacement | |||||
|
9
|
9
90109-06190-00 Bolt |
90109-06190-00 |
from US $2.32 |
||
|
10
|
10
3R4-18511-01-00
Fork, Shift 1
|
3R4-18511-01-00 |
— | ||
|
11
|
11
3R4-18512-01-00
Fork, Shift 2
|
3R4-18512-01-00 |
— | ||
|
12
|
12
3R4-18513-01-00
Fork, Shift 3 (250G)
250G |
3R4-18513-01-00 |
— | ||
|
13
|
13
93606-14154-00 Pin, Dowel |
93606-14154-00 |
from US $3.26 |
||
|
14
|
14
5X5-18531-01-00 Bar, Shift Fork Guide 1 |
5X5-18531-01-00 |
from US $21.01 |
||
| replacement | |||||
|
14
|
14
4BA-18531-00-00 Bar, Shift Fork Guide 1 |
4BA-18531-00-00 |
from US $23.66 |
||
|
15
|
15
5X5-18535-00-00 Bar, Shift Fork Guide 2 |
5X5-18535-00-00 |
US $21.40 |
||
| replacement | |||||
|
15
|
15
5X5-18535-01-00 Bar, Shift Fork Guide 2 |
5X5-18535-01-00 |
US $21.40 |
||
|
16
|
16
93306-20110-00 Bearing |
93306-20110-00 |
from US $20.12 |
||
| replacement | |||||
|
16
|
16
933-06201-19-00 Bearing |
933-06201-19-00 |
from US $11.58 |
||
