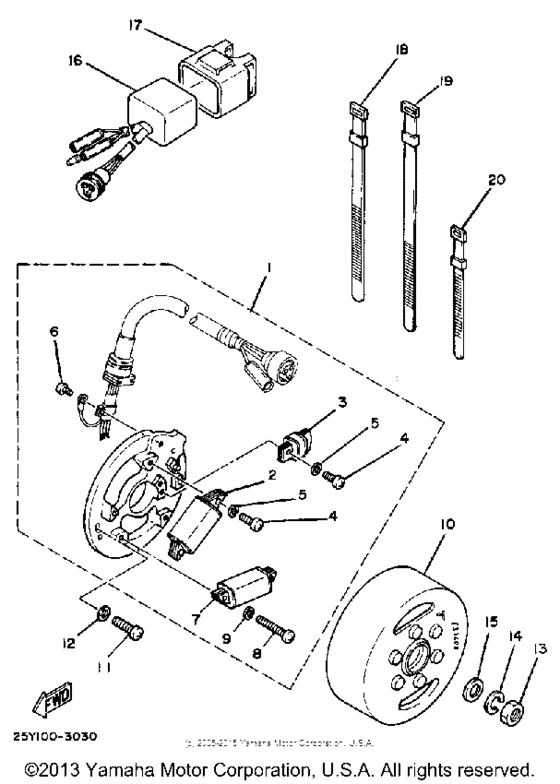

CDI & magneto Diagram Yamaha IT
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 250
- Model
- IT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25Y-85510-21-00
Stator Assembly
|
25Y-85510-21-00 |
— | ||
|
2
|
2
25Y-85520-21-00
Coil, Charge
|
25Y-85520-21-00 |
— | ||
|
3
|
3
23X-85580-20-00
Coil,pulser
|
23X-85580-20-00 |
— | ||
|
4
|
4
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
4
|
4
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
5
|
5
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
5
|
5
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
6
|
6
976-01041-06-00
Screw, Pan Head With Washer
|
976-01041-06-00 |
— | ||
| replacement | |||||
|
6
|
6
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
7
|
7
4V6-85513-20-00
Coil, Lighting 1
|
4V6-85513-20-00 |
— | ||
|
8
|
8
98511-04030-00 Screw, Pan Head |
98511-04030-00 |
US $2.13 |
||
| replacements | |||||
|
8
|
8
985-17040-30-00
Screw, Pan Head(1Ke)
|
985-17040-30-00 |
— | ||
|
8
|
8
98507-04030-00 Screw,pan Head |
98507-04030-00 |
from US $2.13 |
||
|
9
|
9
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
10
|
10
23X-85550-20-00 Rotor Assembly |
23X-85550-20-00 |
US $533.90 |
||
|
11
|
11
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
12
|
12
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
12
|
12
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
12
|
12
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
13
|
13
90170-12347-00 Nut, Hexagon |
90170-12347-00 |
from US $1.70 |
||
|
14
|
14
929-01121-00-00
Washer, Spring
|
929-01121-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-12100-00 Washer, Spring |
92990-12100-00 |
from US $2.55 |
||
|
15
|
15
90201-12593-00 Washer, Plate |
90201-12593-00 |
from US $4.53 |
||
|
16
|
16
23X-85540-20-00 Cdi Unit Assembly |
23X-85540-20-00 |
US $584.23 |
||
|
17
|
17
2A7-85546-00-00 Band |
2A7-85546-00-00 |
from US $17.85 |
||
|
18
|
18
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
19
|
19
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
20
|
20
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
