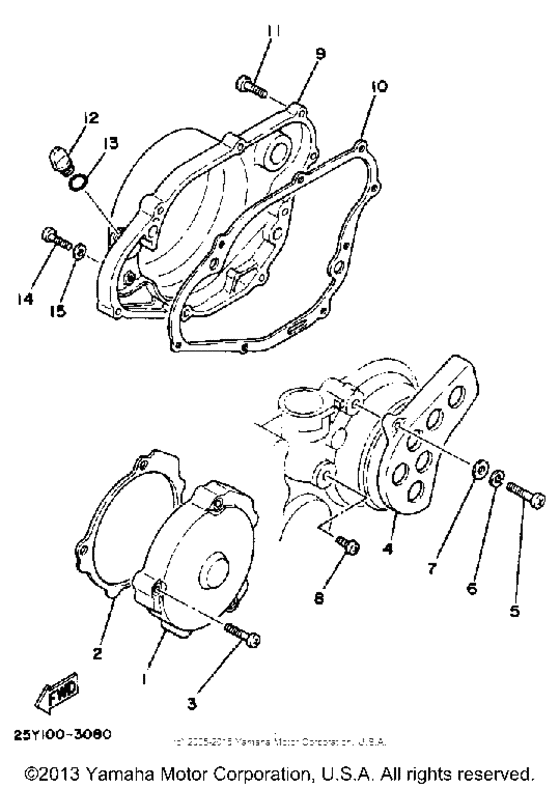

Crankcase cover Diagram Yamaha IT
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 250
- Model
- IT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4V5-15411-00-00
Cover, Crankcase L
|
4V5-15411-00-00 |
— | ||
|
2
|
2
4V5-15451-00-00 Gasket, Crcs Cover |
4V5-15451-00-00 |
from US $11.32 |
||
|
3
|
3
98506-06035-00 Screw Pan Head J |
98506-06035-00 |
from US $1.21 |
||
| replacement | |||||
|
3
|
3
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.21 |
||
|
4
|
4
26A-15421-00-00
Cover, Crankcase R
|
26A-15421-00-00 |
— | ||
|
5
|
5
98506-06025-00 Screw Pan Head |
98506-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
5
|
5
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
6
|
6
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
6
|
6
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
7
|
7
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
8
|
8
985-16060-12-00
Screw, Pan Head(3Xv)
|
985-16060-12-00 |
— | ||
| replacement | |||||
|
8
|
8
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
9
|
9
3R4-15431-02-00
Cover, Crankcase 3
|
3R4-15431-02-00 |
— | ||
|
10
|
10
3R4-15462-00-00 Gasket, Crcs 3Crankcase Cover 33CRANKCASE COVER 3 |
3R4-15462-00-00 |
from US $26.21 |
||
| replacement | |||||
|
10
|
10
3R4-15462-11-00 Gasket, Crcs 3Crankcase Cover 33CRANKCASE COVER 3 |
3R4-15462-11-00 |
from US $26.21 |
||
|
11
|
11
98506-06025-00 Screw Pan Head |
98506-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
12
|
12
1G8-15362-00-00 Plug, Oil Level |
1G8-15362-00-00 |
US $18.22 |
||
|
13
|
13
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
13
|
13
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.28 |
||
|
14
|
14
98506-06008-00 Screw |
98506-06008-00 |
from US $2.41 |
||
| replacement | |||||
|
14
|
14
98517-06008-00 Screw |
98517-06008-00 |
from US $2.41 |
||
|
15
|
15
90430-06016-00 Gasket |
90430-06016-00 |
from US $2.55 |
||
