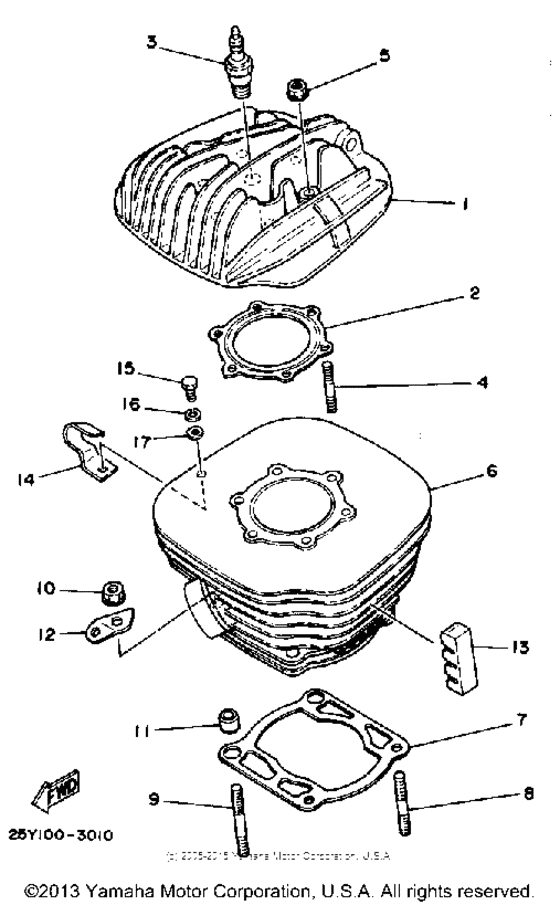

Cylinder Diagram Yamaha IT
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 250
- Model
- IT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25Y-11111-01-00
Head, Cylinder 1
|
25Y-11111-01-00 |
— | ||
|
2
|
2
25Y-11181-00-00 Gasket, Cylinder Head 1 |
25Y-11181-00-00 |
from US $24.65 |
||
|
3
|
3
NGK-B8EG0-00-00
Plug, Spark (Ngk B8Eg) (94702-0
B8EG 94702-0 U.R. LM FOR U.S.A. |
NGK-B8EG0-00-00 |
— | ||
| replacement | |||||
|
3
|
3
B8E-G0000-00-00 elementB8EG 94702-0 U.R. LM FOR U.S.A. |
B8E-G0000-00-00 |
US $27.56 |
||
|
4
|
4
90116-08394-00 Bolt, Stud |
90116-08394-00 |
from US $1.70 |
||
|
5
|
5
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
6
|
6
25Y-11311-00-00
Cylinder 1
|
25Y-11311-00-00 |
— | ||
|
7
|
7
3R4-11351-00-00 Gasket,cylinder |
3R4-11351-00-00 |
from US $12.89 |
||
| replacement | |||||
|
7
|
7
3R4-11351-01-00 element |
3R4-11351-01-00 |
from US $9.98 |
||
|
8
|
8
90116-10313-00
Bolt, Stud
|
90116-10313-00 |
— | ||
|
9
|
9
90116-10314-00 Bolt, Stud |
90116-10314-00 |
from US $5.85 |
||
|
10
|
10
957-01105-00-00
Nut, With Washer
|
957-01105-00-00 |
— | ||
| replacements | |||||
|
10
|
10
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.07 |
||
|
10
|
10
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
|
11
|
11
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.56 |
||
|
12
|
12
3R4-14619-01-00
Hook, Spring
|
3R4-14619-01-00 |
— | ||
|
13
|
13
3R6-11162-00-00 Absorber 2 |
3R6-11162-00-00 |
from US $12.89 |
||
|
14
|
14
26A-1131E-00-00
Holder 1
|
26A-1131E-00-00 |
— | ||
|
15
|
15
97301-06014-00 Bolt, Hexagon |
97301-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
15
|
15
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.84 |
||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
17
|
17
90201-063J2-00 Washer, Plate(36Y) |
90201-063J2-00 |
from US $3.12 |
||
