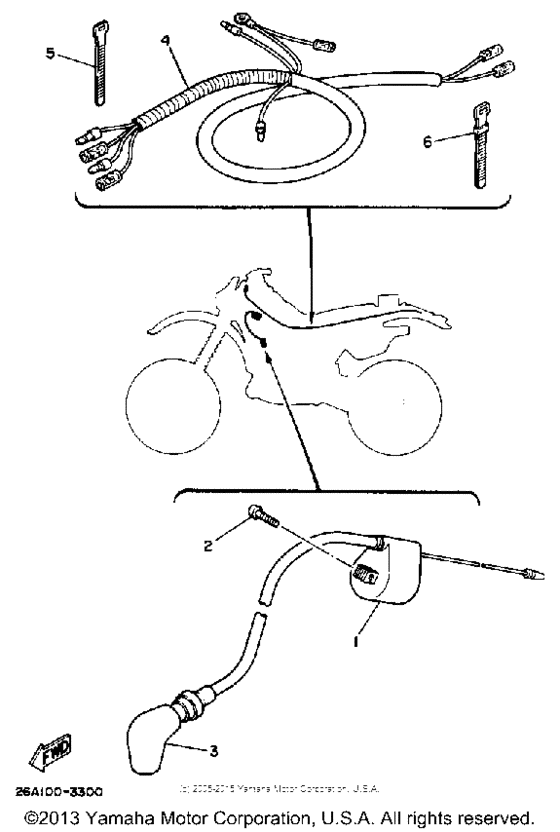

Electrical (1) Diagram Yamaha IT
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 250
- Model
- IT250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43G-82310-40-00 Ignition Coil Assembly |
43G-82310-40-00 |
US $136.12 |
||
|
2
|
2
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
3
|
3
81E-82370-20-00 Plug Cap Assembly |
81E-82370-20-00 |
from US $28.34 |
||
| replacement | |||||
|
3
|
3
8DG-82370-00-00 Plug Cap Assy |
8DG-82370-00-00 |
from US $28.34 |
||
|
4
|
4
26A-82590-00-00
Wire Harness Assemblyassy
|
26A-82590-00-00 |
— | ||
|
5
|
5
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
6
|
6
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
