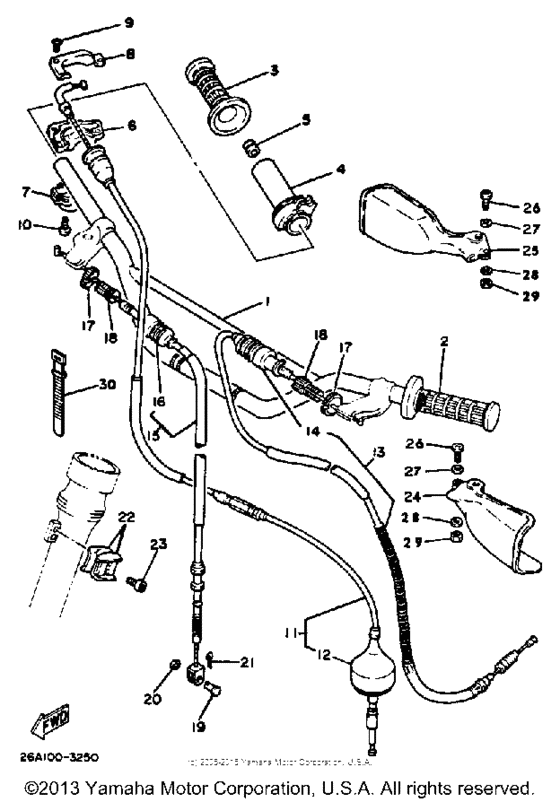

Handlebar - cable Diagram Yamaha IT
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 250
- Model
- IT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23X-26111-00-00
Handlebar
|
23X-26111-00-00 |
— | ||
| replacement | |||||
|
1
|
1
1LN-26111-00-00
Handlebar
|
1LN-26111-00-00 |
— | ||
|
2
|
2
4V4-26241-01-00
Grip (Left)
|
4V4-26241-01-00 |
— | ||
| replacement | |||||
|
2
|
2
1LX-26241-01-00 Grip (Left) |
1LX-26241-01-00 |
from US $14.31 |
||
|
3
|
3
1LX-26242-01-00 Grip (Right) |
1LX-26242-01-00 |
from US $14.31 |
||
|
4
|
4
22W-26243-00-00 Tube, Throttle Guide |
22W-26243-00-00 |
from US $12.61 |
||
|
5
|
5
90338-12192-00 Plug(2Gu) |
90338-12192-00 |
from US $1.66 |
||
|
6
|
6
5X2-26281-00-00 Cap, Grip Upper |
5X2-26281-00-00 |
from US $21.82 |
||
|
7
|
7
322-26282-00-00 Cap, Grip Under |
322-26282-00-00 |
from US $14.45 |
||
|
8
|
8
5X2-2628H-01-00 Cap, Wire |
5X2-2628H-01-00 |
from US $8.64 |
||
|
9
|
9
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
9
|
9
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.34 |
||
|
10
|
10
98586-05016-00 Screw, Pan Head |
98586-05016-00 |
from US $1.42 |
||
| replacement | |||||
|
10
|
10
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
11
|
11
26A-26311-00-00
Cable, Throttle 1
|
26A-26311-00-00 |
— | ||
|
12
|
12
510-26329-00-00 Cap, Rubber |
510-26329-00-00 |
from US $25.36 |
||
| replacement | |||||
|
12
|
12
510-26329-01-00 |
510-26329-01-00 |
from US $10.78 |
||
|
13
|
13
26A-26335-00-00
Cable, clutch
|
26A-26335-00-00 |
— | ||
|
14
|
14
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $14.17 |
||
|
15
|
15
26A-26341-00-00 Cable, Brake |
26A-26341-00-00 |
US $60.05 |
||
| replacement | |||||
|
15
|
15
34K-26341-00-00
Cable, Brake
|
34K-26341-00-00 |
— | ||
|
16
|
16
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $14.17 |
||
|
17
|
17
90179-08401-00
Nut
|
90179-08401-00 |
— | ||
| replacements | |||||
|
17
|
17
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
|
17
|
17
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
18
|
18
90123-08090-00 Bolt |
90123-08090-00 |
from US $12.75 |
||
|
19
|
19
91701-06018-00 Pin |
91701-06018-00 |
from US $1.56 |
||
|
20
|
20
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
21
|
21
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
21
|
21
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
22
|
22
90465-16258-00 Clamp |
90465-16258-00 |
from US $8.36 |
||
|
23
|
23
91311-06016-00 Bolt, Hexagon Socket Head |
91311-06016-00 |
from US $1.42 |
||
| replacement | |||||
|
23
|
23
91314-06016-00 Bolt, Hexagon Socket Head |
91314-06016-00 |
from US $1.42 |
||
|
24
|
24
3R9-26141-00-00
Guard, Brush 1
SKY BLUE |
3R9-26141-00-00 |
— | ||
|
25
|
25
3R9-26142-00-00
Guard, Brush 2
SKY BLUE |
3R9-26142-00-00 |
— | ||
|
26
|
26
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
26
|
26
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
27
|
27
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
27
|
27
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
27
|
27
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
27
|
27
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
28
|
28
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
29
|
29
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
29
|
29
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
30
|
30
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
