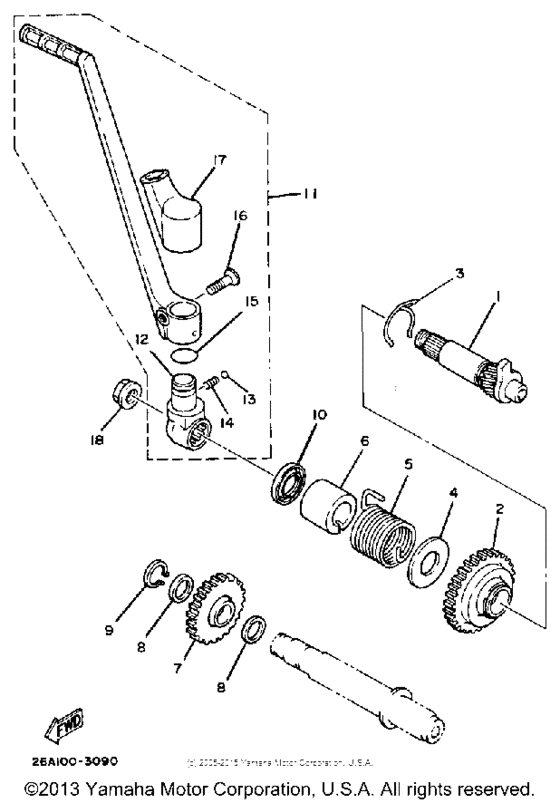

Kick starter Diagram Yamaha IT
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 250
- Model
- IT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57H-15661-00-00
Kick Axle Assembly
|
57H-15661-00-00 |
— | ||
|
2
|
2
3R4-15641-00-00 Gear, Kick |
3R4-15641-00-00 |
US $117.83 |
||
|
3
|
3
90468-26048-00 Clip |
90468-26048-00 |
from US $1.84 |
||
|
4
|
4
90201-20358-00
Washer, Plate
|
90201-20358-00 |
— | ||
|
5
|
5
90508-30422-00 Spring, Torsion |
90508-30422-00 |
from US $15.73 |
||
|
6
|
6
3R4-15664-00-00
Guide, Spring
|
3R4-15664-00-00 |
— | ||
|
7
|
7
3R4-15651-00-00
Gear, Sprocket Idle (21T)
|
3R4-15651-00-00 |
— | ||
|
8
|
8
90201-17545-00 Washer, Plate |
90201-17545-00 |
from US $3.26 |
||
|
9
|
9
99009-17400-00 Circlip |
99009-17400-00 |
from US $1.56 |
||
| replacement | |||||
|
9
|
9
93410-17X00-00 Circlip |
93410-17X00-00 |
US $1.56 |
||
|
10
|
10
93102-20309-00 Oil Seal (25Y) |
93102-20309-00 |
from US $10.69 |
||
|
11
|
11
26A-15620-01-00
Kick Crank Assembly
|
26A-15620-01-00 |
— | ||
|
12
|
12
26A-15621-00-00
Boss, Kick Crank
|
26A-15621-00-00 |
— | ||
| replacement | |||||
|
12
|
12
23X-15621-02-00
Boss, Kick Crank
|
23X-15621-02-00 |
— | ||
|
13
|
13
93501-04011-00 Ball |
93501-04011-00 |
from US $1.34 |
||
| replacement | |||||
|
13
|
13
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
14
|
14
90501-13720-00 Spring, Compression |
90501-13720-00 |
from US $2.55 |
||
|
15
|
15
93210-19501-00 O-Ring |
93210-19501-00 |
from US $1.35 |
||
| replacement | |||||
|
15
|
15
93210-19758-00 O-Ring |
93210-19758-00 |
from US $1.34 |
||
|
16
|
16
90157-06048-00 Screw, Countersunk |
90157-06048-00 |
from US $2.27 |
||
| replacement | |||||
|
16
|
16
90152-06010-00 Screw, Countersunk (5Y1) |
90152-06010-00 |
from US $2.27 |
||
|
17
|
17
23X-15618-00-00
Cover, Kick Lever
|
23X-15618-00-00 |
— | ||
|
18
|
18
901-79122-44-00
Nut
|
901-79122-44-00 |
— | ||
| replacement | |||||
|
18
|
18
90179-12659-00 Nut |
90179-12659-00 |
from US $1.70 |
||
