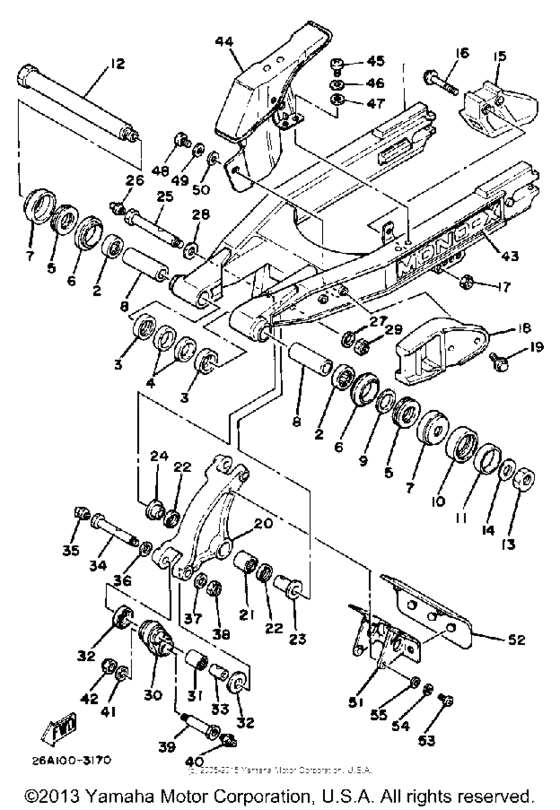

Rear arm & suspension Diagram Yamaha IT
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 250
- Model
- IT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26A-22110-00-35
Rear Arm
|
26A-22110-00-35 |
— | ||
|
2
|
2
933-17322-31-00 Bearing |
933-17322-31-00 |
from US $24.48 |
||
|
3
|
3
90380-22111-00 Bush, Solid |
90380-22111-00 |
from US $7.51 |
||
|
4
|
4
93106-22019-00 Oil Seal (Dc 22-28-8)22-28-8 |
93106-22019-00 |
from US $6.09 |
||
|
5
|
5
93342-22208-00 Bearing |
93342-22208-00 |
from US $34.71 |
||
|
6
|
6
93108-35004-00 Oil Seal (35-41-8)35-41-8 |
93108-35004-00 |
from US $7.37 |
||
|
7
|
7
3R4-22129-00-00 Cover, Thrust 2 |
3R4-22129-00-00 |
from US $20.83 |
||
|
8
|
8
90380-16077-00 Bush, Solid |
90380-16077-00 |
from US $45.88 |
||
|
9
|
9
240-22127-00-00 Shim (0.3T)Shim,rear arm (26-34-0.1) 0.3T |
240-22127-00-00 |
from US $8.78 |
||
|
10
|
10
24X-22151-00-00
Seal, Guard
|
24X-22151-00-00 |
— | ||
|
11
|
11
90387-440G3-00 Collar |
90387-440G3-00 |
from US $4.30 |
||
|
12
|
12
5X6-22141-01-00 Shaft, Pivot |
5X6-22141-01-00 |
from US $119.92 |
||
|
13
|
13
901-70161-11-00
Nut
|
901-70161-11-00 |
— | ||
|
14
|
14
902-01160-F6-00 Washer, Plate |
902-01160-F6-00 |
from US $7.37 |
||
|
15
|
15
23X-22199-00-00 Support, Chain |
23X-22199-00-00 |
from US $50.70 |
||
|
16
|
16
95811-08055-00 Bolt, Flange |
95811-08055-00 |
from US $1.42 |
||
| replacement | |||||
|
16
|
16
95817-08055-00 Bolt, Flange |
95817-08055-00 |
from US $1.33 |
||
|
17
|
17
95601-08200-00 Nut, U |
95601-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
17
|
17
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
18
|
18
5X6-22147-01-00 Protector, Chain |
5X6-22147-01-00 |
from US $20.83 |
||
|
19
|
19
95811-06016-00 Bolt, Flange |
95811-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
19
|
19
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
20
|
20
23X-2217A-00-00
Arm, Relay
|
23X-2217A-00-00 |
— | ||
|
21
|
21
93317-32034-00 Bearing, Cylindrical |
93317-32034-00 |
from US $36.75 |
||
|
22
|
22
931-09200-29-00
Oil Seal
|
931-09200-29-00 |
— | ||
| replacement | |||||
|
22
|
22
93109-20076-00 Oil Seal |
93109-20076-00 |
from US $1.98 |
||
|
23
|
23
90387-147G6-00
Collar
|
90387-147G6-00 |
— | ||
|
24
|
24
90387-147G7-00 Collar |
90387-147G7-00 |
US $29.97 |
||
|
25
|
25
90109-12701-00
Bolt
|
90109-12701-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
27
|
27
90201-120A5-00 Washer, Plate |
90201-120A5-00 |
from US $4.39 |
||
|
28
|
28
90201-142M6-00 Washer, Plate |
90201-142M6-00 |
from US $3.68 |
||
|
29
|
29
901-85121-19-00 Nut, Self Locking (23X) |
901-85121-19-00 |
from US $7.79 |
||
|
30
|
30
23X-2217F-00-00
Rod, Connecting 1
|
23X-2217F-00-00 |
— | ||
|
31
|
31
93315-31732-00 Bearing, Cylindrical |
93315-31732-00 |
from US $42 |
||
|
32
|
32
55K-22129-00-00 Cover, Thrust 2 |
55K-22129-00-00 |
from US $7.79 |
||
|
33
|
33
90387-121H1-00 Collar (23X) |
90387-121H1-00 |
from US $16.43 |
||
|
34
|
34
90109-10702-00
Bolt
|
90109-10702-00 |
— | ||
|
35
|
35
937-00060-05-00 Nipple, Grease |
937-00060-05-00 |
from US $5.38 |
||
|
36
|
36
90201-120E6-00 Washer, Plate |
90201-120E6-00 |
from US $2.55 |
||
| replacement | |||||
|
36
|
36
90201-12027-00 Washer, Plate |
90201-12027-00 |
from US $2.32 |
||
|
37
|
37
90201-100E9-00 Washer, Plate |
90201-100E9-00 |
from US $2.55 |
||
| replacement | |||||
|
37
|
37
90201-10M05-00 Washer, Plate |
90201-10M05-00 |
from US $8.05 |
||
|
38
|
38
90185-10120-00 Nut, Self-Locking |
90185-10120-00 |
from US $3.83 |
||
|
39
|
39
90109-10703-00
Bolt
|
90109-10703-00 |
— | ||
| replacement | |||||
|
39
|
39
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
40
|
40
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
41
|
41
90201-100F7-00 Washer (7A9) |
90201-100F7-00 |
from US $2.27 |
||
|
42
|
42
95611-10100-00 Nut, U |
95611-10100-00 |
from US $4.68 |
||
| replacement | |||||
|
42
|
42
95614-10100-00 Nut, U |
95614-10100-00 |
from US $4.68 |
||
|
43
|
43
5X6-2218A-00-00
Emblem, Rear Arm
|
5X6-2218A-00-00 |
— | ||
|
44
|
44
26A-22310-00-00
Chain Case Assembly
|
26A-22310-00-00 |
— | ||
|
45
|
45
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
45
|
45
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
46
|
46
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
47
|
47
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
47
|
47
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
47
|
47
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
47
|
47
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
48
|
48
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
48
|
48
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
49
|
49
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
50
|
50
90201-06571-00 Washer, Plate |
90201-06571-00 |
from US $1.70 |
||
|
51
|
51
23X-21652-00-00
Protector
|
23X-21652-00-00 |
— | ||
|
52
|
52
23X-21691-00-00
Flap
|
23X-21691-00-00 |
— | ||
|
53
|
53
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $1.34 |
||
|
54
|
54
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
55
|
55
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
