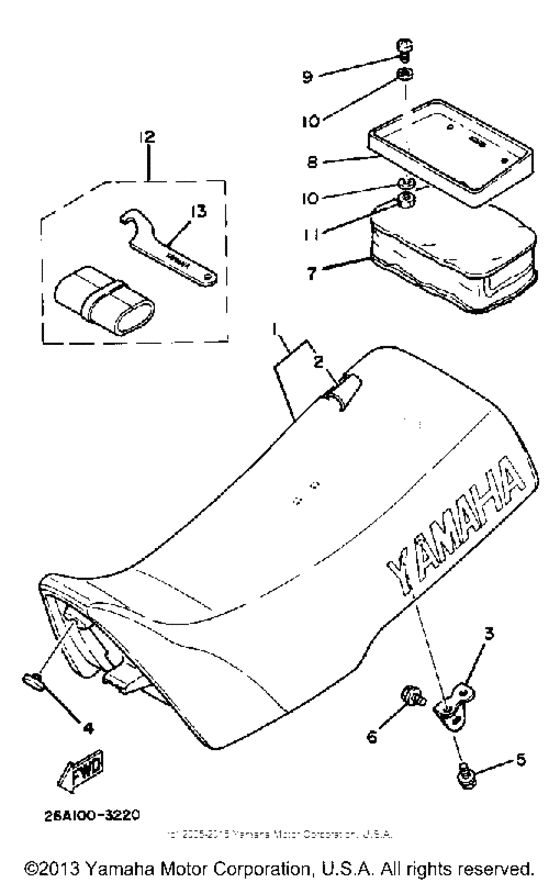

Seat Diagram Yamaha IT
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 250
- Model
- IT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26A-W2473-00-00
Semi-Dbl-Seat Assembly
|
26A-W2473-00-00 |
— | ||
|
2
|
2
26A-24731-00-00
Cover, Double Seat
|
26A-24731-00-00 |
— | ||
|
3
|
3
39W-24738-00-00
Bracket, Seat
|
39W-24738-00-00 |
— | ||
|
4
|
4
22W-24741-00-00 Pad, Seat |
22W-24741-00-00 |
from US $2 |
||
|
5
|
5
958-11060-12-00
Bolt, Flange (4H7)
|
958-11060-12-00 |
— | ||
| replacements | |||||
|
5
|
5
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
5
|
5
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
6
|
6
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
6
|
6
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
6
|
6
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
7
|
7
4V5-24850-00-00
Carrier Box Assembly
|
4V5-24850-00-00 |
— | ||
|
8
|
8
4V5-24833-00-00
Bracket, Carrier 2
|
4V5-24833-00-00 |
— | ||
|
9
|
9
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
10
|
10
90201-06571-00 Washer, Plate |
90201-06571-00 |
from US $1.70 |
||
|
11
|
11
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
11
|
11
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
12
|
12
26A-28100-00-00 Tool Kit (48Y-28100-00-00)48Y-28100-00-00 |
26A-28100-00-00 |
US $148.07 |
||
| replacement | |||||
|
12
|
12
1LN-W2810-01-00
Tool Kit (48Y-28100-00-00)
48Y-28100-00-00 |
1LN-W2810-01-00 |
— | ||
|
13
|
13
1HX-28135-00-00
Spanner, Special
|
1HX-28135-00-00 |
— | ||
