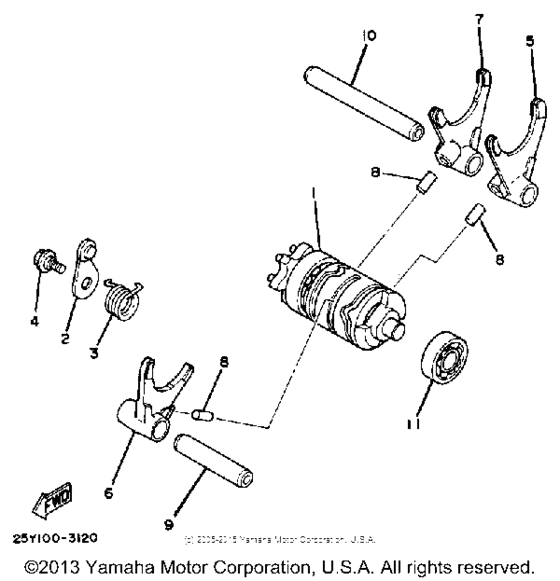

Shift cam - fork Diagram Yamaha IT
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 250
- Model
- IT250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25Y-18540-00-00
Shift Cam Assembly
|
25Y-18540-00-00 |
— | ||
|
2
|
2
3R4-18140-00-00
Stopper Lever Assembly
|
3R4-18140-00-00 |
— | ||
|
3
|
3
90508-26421-00
Spring, Torsion (3R4)
|
90508-26421-00 |
— | ||
|
4
|
4
50W-21631-00-00 Bolt |
50W-21631-00-00 |
from US $2.55 |
||
| replacement | |||||
|
4
|
4
90109-06190-00 Bolt |
90109-06190-00 |
from US $2.32 |
||
|
5
|
5
3R4-18511-01-00
Fork, Shift 1
|
3R4-18511-01-00 |
— | ||
|
6
|
6
3R4-18512-01-00
Fork, Shift 2
|
3R4-18512-01-00 |
— | ||
|
7
|
7
25Y-18513-00-00
Fork, Shift 3
|
25Y-18513-00-00 |
— | ||
|
8
|
8
93606-14154-00 Pin, Dowel |
93606-14154-00 |
from US $3.26 |
||
|
9
|
9
5X5-18531-01-00 Bar, Shift Fork Guide 1 |
5X5-18531-01-00 |
from US $21.01 |
||
| replacement | |||||
|
9
|
9
4BA-18531-00-00 Bar, Shift Fork Guide 1 |
4BA-18531-00-00 |
from US $23.66 |
||
|
10
|
10
5X5-18535-00-00 Bar, Shift Fork Guide 2 |
5X5-18535-00-00 |
US $21.40 |
||
| replacement | |||||
|
10
|
10
5X5-18535-01-00 Bar, Shift Fork Guide 2 |
5X5-18535-01-00 |
US $21.40 |
||
|
11
|
11
93306-20110-00 Bearing |
93306-20110-00 |
from US $20.12 |
||
| replacement | |||||
|
11
|
11
933-06201-19-00 Bearing |
933-06201-19-00 |
from US $11.58 |
||
